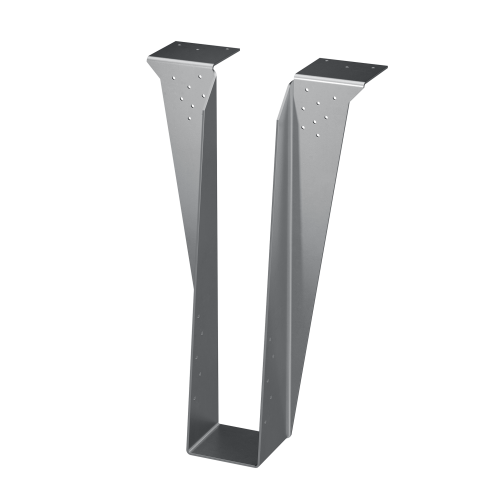

The Simpson HB314 Top Flange Hanger for Heavy Beam is a premium structural connector engineered to carry medium to high loads in both solid sawn and engineered wood framing applications. Built from heavy-gauge steel in a one-piece construction, the HB314 delivers reliable performance and a cost-effective alternative to traditional welded hangers. Its full-height joist flange design captures the top chord of the joist, effectively preventing rotation and ensuring long-term structural integrity.

Key Features

• Top Flange Design: Engineered as a top-flange hanger, the HB314 sits over the header or beam for secure, stable installation without the need for additional support during framing.
• Full-Height Joist Flange: Captures the top chord of the joist to prevent rotation, maintaining alignment and load path integrity throughout the structure's service life.
• One-Piece Construction: Formed from a single piece of 10-gauge steel, eliminating the structural compromises of welded assemblies while reducing overall installed cost.
• Medium to High Load Capacity: Designed specifically for heavy beam applications where standard hangers are insufficient, supporting demanding residential and commercial framing scenarios.
• Galvanized Finish: Standard galvanized coating provides corrosion resistance suited for typical framing environments.
• Hot-Dip Galvanized Option Available: For applications requiring enhanced corrosion protection, the HB314 may be ordered with a hot-dip galvanized finish.
• Solid Sawn & Engineered Wood Compatible: Suitable for use with both traditional solid sawn lumber and modern engineered wood products, offering broad application flexibility.
• Made in the United States: Manufactured domestically to consistent quality standards.

Specifications

• Model Number: HB314
• Description: 3x14 Top Flange Hanger for Heavy Beam
• Material: 10-Gauge Steel
• Finish: Galvanized (Hot-Dip Galvanized available)
• Country of Origin: United States

Approved Applications

• Heavy beam framing connections in residential and commercial construction
• Solid sawn lumber framing where medium to high vertical loads must be transferred
• Engineered wood product (EWP) installations including LVL, PSL, LSL, and glulam beams
• Applications requiring joist rotation prevention at the top chord connection
• Situations where a top-flange installation method is specified or preferred over face-mount solutions

Note: Product dimensions may differ from picture. Please see item description for specifications.

Options

• Contact us for Special orders

Frequently Asked Questions

What type of framing applications is the HB314 designed for?

The HB314 is engineered for medium to high load applications in both solid sawn and engineered wood framing. It is suitable for demanding residential and commercial framing scenarios where standard hangers are insufficient.

How does the top flange design benefit installation?

The top flange design allows the HB314 to sit over the header or beam, providing secure and stable positioning without requiring additional support during the framing process. This simplifies installation and helps maintain proper alignment from the start.

What gauge steel is used in the HB314, and why does one-piece construction matter?

The HB314 is formed from a single piece of 10-gauge steel. One-piece construction eliminates the structural compromises associated with welded assemblies and can reduce overall installed cost compared to traditional welded hangers.

What corrosion protection options are available for the HB314?

The HB314 comes standard with a galvanized finish suitable for typical framing environments. For applications requiring enhanced corrosion protection, a hot-dip galvanized finish is also available as an option.
