Product Features
Product Description

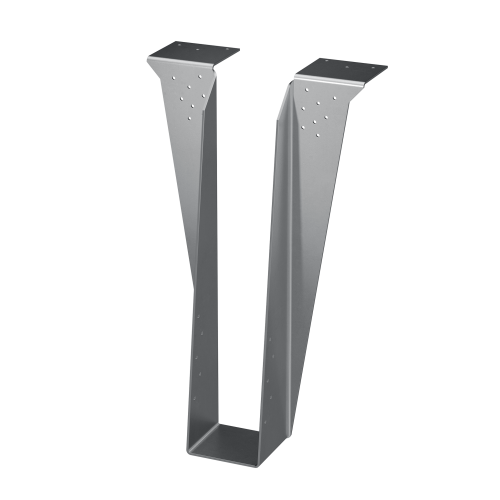

The Simpson HB210-3 Top Flange Hanger for Heavy Beam Triple 2x10 is a professionally engineered top-flange joist hanger built to carry medium to high loads in solid sawn and engineered wood construction applications. Manufactured as a one-piece unit from 10 gauge steel with a galvanized finish, this heavy beam hanger delivers a cost-effective, high-performance alternative to welded hangers. Its full-height joist flange captures the top chord of the joist to prevent rotation, ensuring structural integrity across demanding load conditions.
Key Features
- Top-Flange Design: Engineered for top-flange installation, providing a secure, stable connection at the top chord of the joist or beam.
- Full-Height Joist Flange: Captures the top chord of the joist to actively prevent rotation and maintain alignment under load.
- One-Piece Construction: Formed from a single piece of steel, offering a cost-effective solution compared to welded alternatives without sacrificing strength.
- Medium to High Load Capacity: Designed specifically to handle the elevated load demands of heavy beam applications.
- 10 Gauge Steel: Heavy-duty material gauge ensures durability and reliable performance in structural framing scenarios.
- Galvanized Finish: Standard galvanized coating provides corrosion resistance for extended service life.
- Compatible with Solid Sawn & Engineered Wood: Versatile hanger suitable for both traditional lumber and modern engineered wood products.
- Made in the United States: Domestically manufactured for quality assurance and consistent production standards.
Specifications
- Manufacturer Part Number (MPN): HB210-3
- Description: Top Flange Hanger for Heavy Beam, Triple 2x10
- Hanger Type: Top Flange Hanger
- Beam Configuration: Triple 2x10
- Material: 10 Gauge Steel
- Finish: Galvanized
- Construction: One-Piece
- Country of Origin: United States
Approved Applications
- Solid sawn lumber framing connections
- Engineered wood beam and joist connections
- Heavy beam top-flange hanger installations requiring medium to high load capacity
- Structural framing applications where joist rotation prevention is critical
Custom Orders
For custom configurations or special finish requirements, please contact us to discuss your project needs.
Note: Product dimensions may differ from picture. Please see item description for specifications.
Frequently Asked Questions
- What type of lumber is the HB210-3 compatible with?
- The HB210-3 is compatible with both solid sawn lumber and engineered wood products, making it a versatile choice for a wide range of structural framing applications.
- How does the top-flange design benefit installation?
- The top-flange design allows the hanger to be installed at the top chord of the joist or beam, providing a secure and stable connection. The full-height joist flange actively captures the top chord to prevent rotation and maintain alignment under load.
- What material and finish is the HB210-3 made from?
- The HB210-3 is formed from a single piece of 10 gauge steel with a galvanized finish. The one-piece construction eliminates the need for welding, offering a cost-effective alternative without sacrificing strength, while the galvanized coating provides corrosion resistance for extended service life.
- What load levels is the HB210-3 designed to handle?
- The HB210-3 is specifically engineered to handle medium to high loads, making it well suited for heavy beam applications in demanding structural framing scenarios.
