Product Description

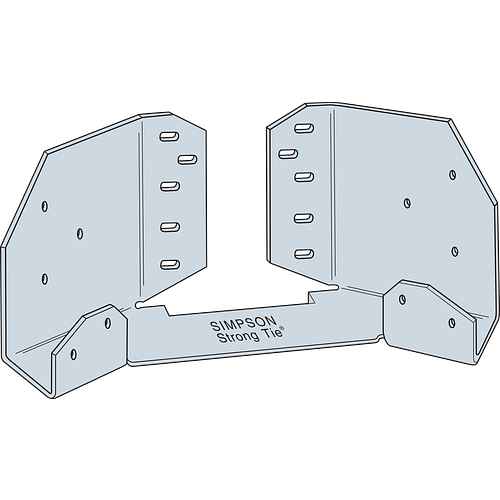

The Simpson Gazebo Tie for 6-2x Rim Joists to Post, Zmax GTFZ from Simpson Strong-Tie is an engineered structural connector purpose-built for six-sided gazebo construction, securing the bottom 2x rim joists directly to the post at each corner of the structure. Made from 16-gauge steel with a ZMAX galvanized finish, this gazebo tie is designed to make outdoor gazebo framing easier, safer, and stronger - delivering the proven performance that engineers and contractors rely on for exterior and treated-wood applications.
Key Features

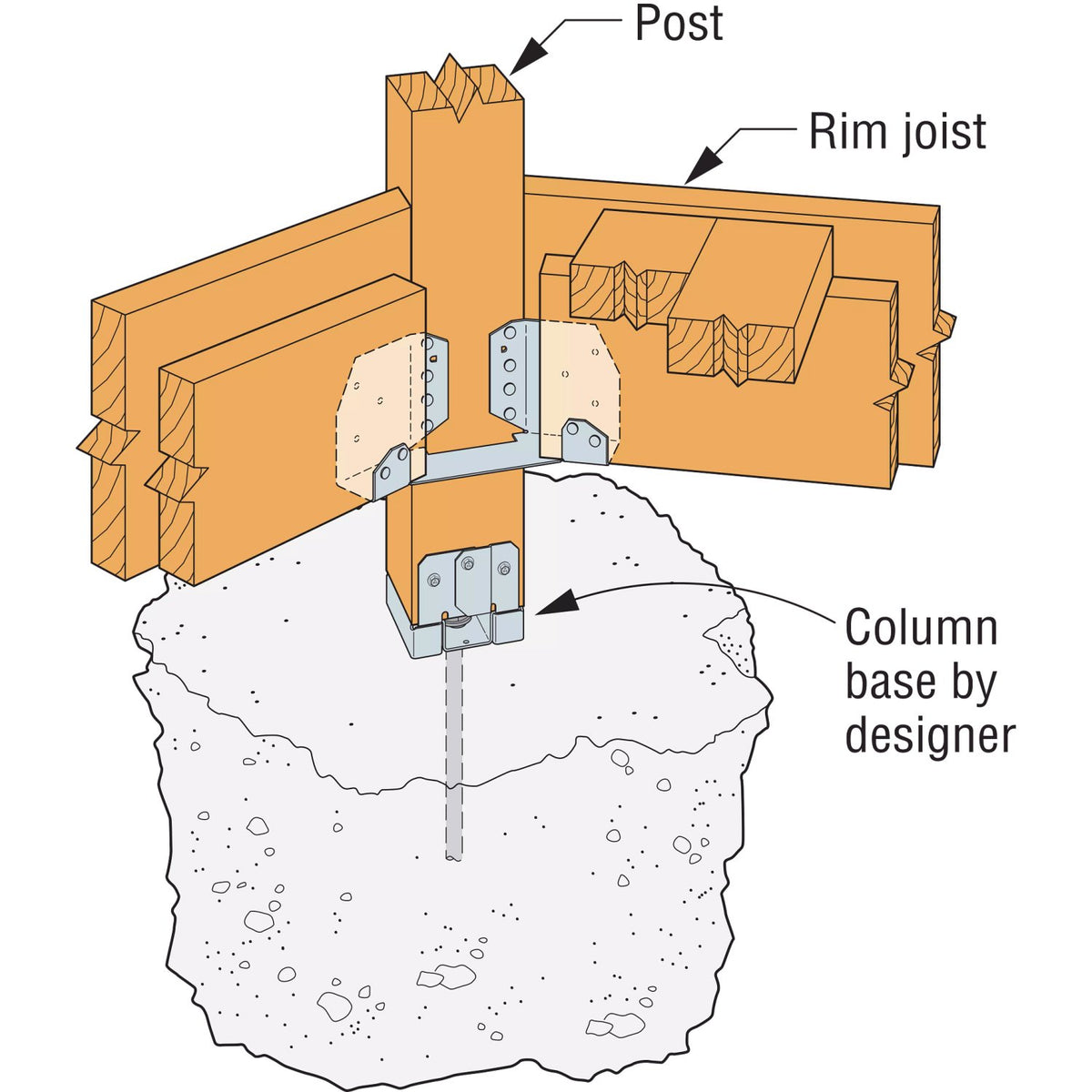

- Connects bottom 2x rim joists to post in a six-sided gazebo - provides a dedicated, geometry-matched connection at every post, so each joint in your hexagonal gazebo frame is properly secured without field fabrication or guesswork.

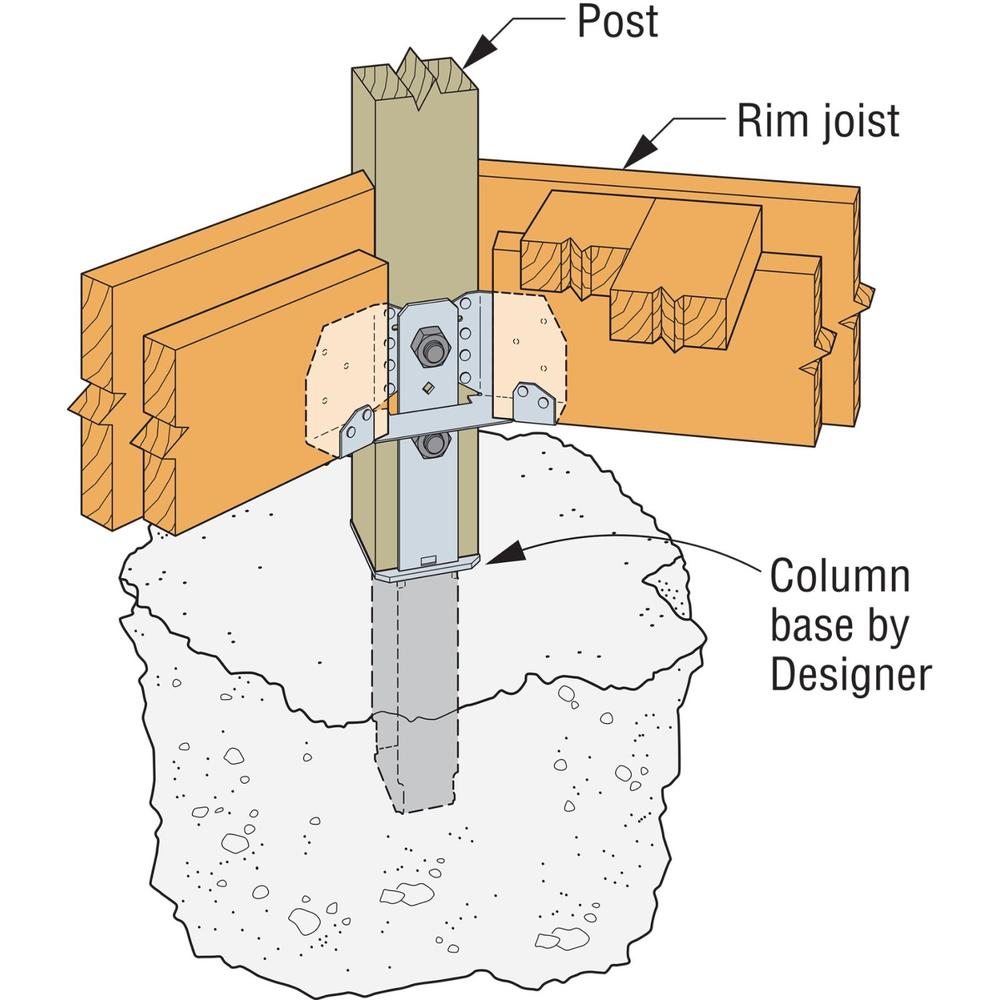

- Allows installation over post base for adjustable height of rim joists - gives builders flexibility to fine-tune rim joist elevation during assembly, making it easier to achieve a level, plumb structure before committing to final fastening.
- Made from 16-gauge steel - delivers the structural rigidity needed for load-bearing gazebo connections, holding its form through fastener installation and long-term service.
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications - the heavy-duty coating stands up to outdoor exposure and the corrosive chemistry of pressure-treated lumber, helping the connector maintain its integrity over the life of the structure.
Why This Product
- Engineered specifically for six-sided gazebo framing - unlike generic angle brackets or field-bent straps, this connector is designed around the exact geometry and member sizes of a hexagonal gazebo, reducing layout errors and speeding up the framing process.
- Compatible with post base installations - the ability to slip over an existing post base means you can use adjustable post bases for proper ground clearance and still get a code-friendly rim joist connection without any workarounds.
- ZMAX coating adds long-term protection where it matters most - outdoor structures and treated lumber demand more corrosion resistance than standard hardware can offer, and the ZMAX finish is specifically suited to meet those conditions.
- Backed by Simpson Strong-Tie engineering and quality standards - this connector is manufactured to the same rigorous standards trusted on job sites and residential projects alike, giving homeowners and contractors confidence that the connection performs as intended.
Specifications
- MPN: GTFZ
- Brand: Simpson Strong-Tie
- Gauge: 16
- Coating / Finish: ZMAX
- Member Size: 2x
- Country of Origin: United States
Approved Applications
- Six-sided gazebo construction - connecting bottom 2x rim joists to post
- Exterior applications requiring enhanced corrosion resistance
- Installations involving treated-wood lumber
- Post base installations requiring adjustable rim joist height
Related Products
- 0.148" x 1-1/2" N10 - Nails for rim joist fastening
- #9 x 1 1/2" - Strong-Drive SD screws for rim joist fastening
- 0.162" x 3-1/2" 16D - Nails for post fastening
- 10 x 1 1/2" - Strong-Drive SD screws for post fastening
Frequently Asked Questions
What does the GTFZ connect in a gazebo structure?
The GTFZ connects the bottom 2x rim joists to the post in a six-sided gazebo, providing a strong and secure structural connection at that joint.
Can the GTFZ be used with a post base?
Yes. The GTFZ allows installation over a post base, which provides adjustable height of the rim joists during gazebo construction.
What fasteners are required to install the GTFZ?
Installation requires (10) 0.148 in. x 1-1/2 in. nails or (10) #9 x 1-1/2 in. Simpson Strong-Tie Strong-Drive SD screws in the rim joist, AND (10) 0.162 in. x 3-1/2 in. nails or (10) #10 x 2-1/2 in. SD screws in the post. Fasteners are not included.
Why does the GTFZ feature ZMAX galvanization?
ZMAX galvanization offers extra corrosion resistance, making the GTFZ well suited for exterior applications and installations involving treated wood where standard galvanization may not provide adequate protection.
