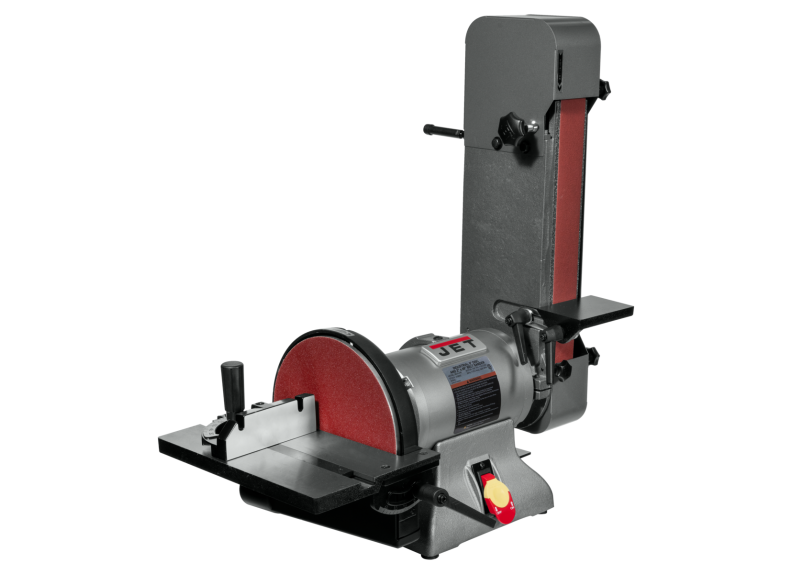

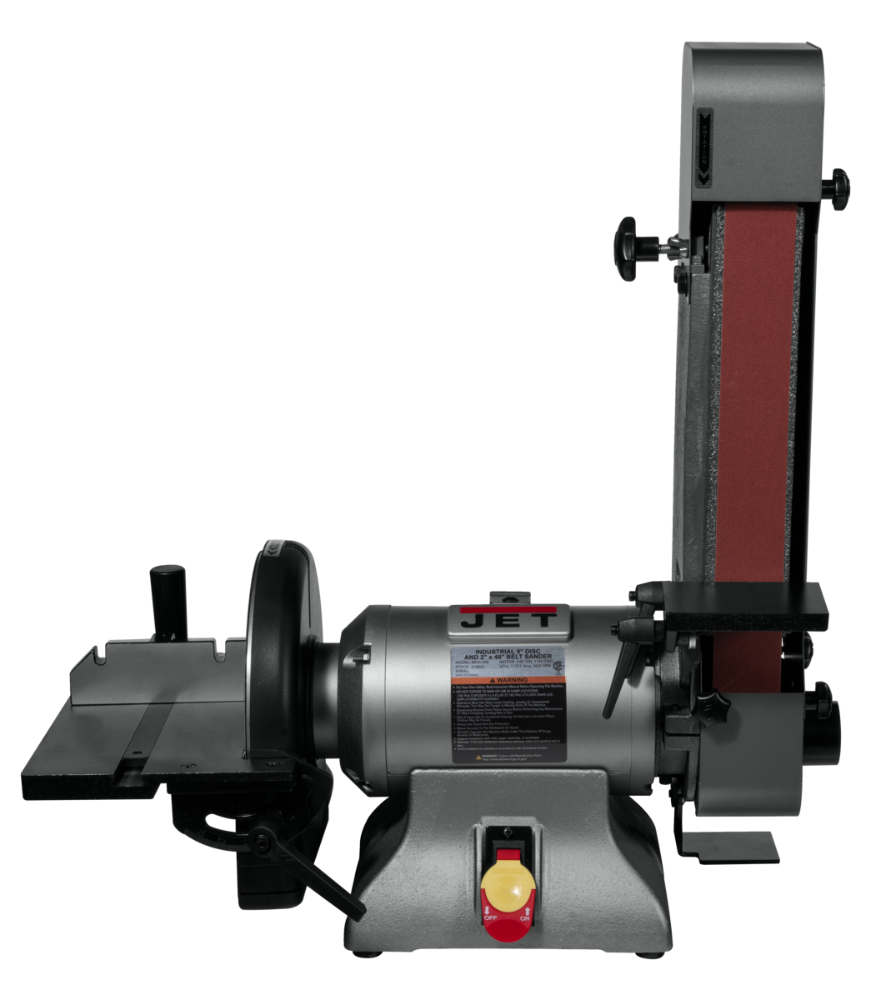

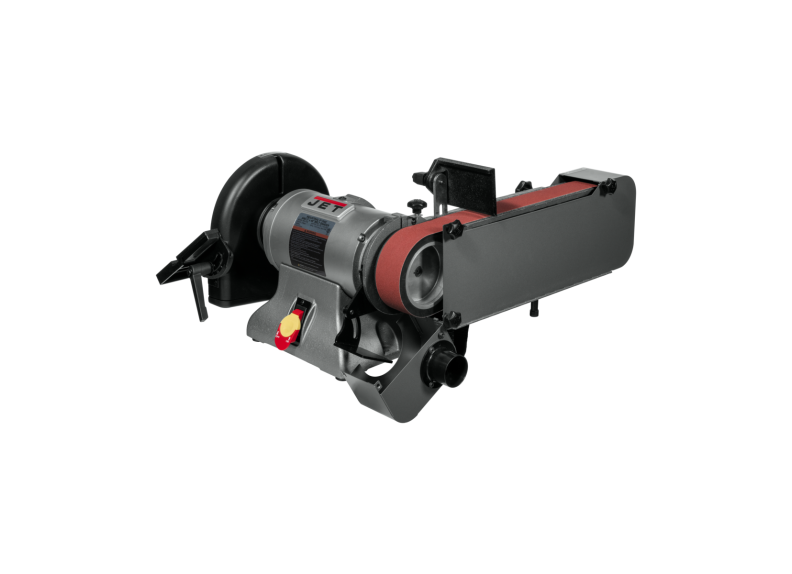

JET IBDG-248 Combination Industrial 2" x 48" Belt and 9" Disc Grinder by JET is a heavy-duty metalworking and grinding machine engineered for demanding industrial applications. Built around a powerful 1 HP enclosed motor and heavy cast iron construction throughout, this combination belt and disc grinder delivers the rigidity, versatility, and durability required for sustained high-volume use. CSA/CUS Certified for added confidence in professional shop environments.

Key Features

• 9" aluminum disc reduces heat buildup and prolongs abrasive life
• Cast iron work rests with tool-less adjustments
• Contact wheel grinding with toolless access
• Easy-to-use belt tracking
• Full guarding of all non-work contact points
• Heavy cast iron bases reduce vibration
• Safety switch with removable key
• Solid cast iron platen offers rigid grinding surface
• Two dust collection ports minimize debris buildup

Specifications

• MPN: JT9-578842
• Stock Number: 578842
• Belt Size (W x L): 2 x 48 in.
• Belt Speed: 4712 SFPM
• Belt Grit: 80
• Disc Diameter: 9 in.
• Disc Speed: 3600 RPM
• Motor: 1 HP
• Motor Voltage: 115 V
• Amperage Draw @ 115V 1Ph: 11 A
• Shaft Diameter: 11 in.
• Dust Port Size: 2 in.
• Overall Dimensions (L x W x H) - sanding bracket parallel: 23-1/2 x 26-3/4 x 12-1/4 in.
• Overall Dimensions (L x W x H) - sanding bracket vertical: 23-1/2 x 15 x 25-7/8 in.
• Net Weight: 74 lbs.
• Gross Weight: 97 lbs.
• Prop 65 Warning: Cancer
• Country of Origin: Taiwan

Frequently Asked Questions

Why does the IBDG-248 use an aluminum disc instead of a steel disc?

The 9" aluminum disc reduces heat buildup during grinding operations, which in turn prolongs abrasive life. Aluminum dissipates heat more effectively than heavier materials, helping to keep both the workpiece and the abrasive disc cooler for longer-lasting performance.

Does this grinder require tools to adjust the work rests or access the contact wheel?

No. The cast iron work rests feature tool-less adjustments, and the contact wheel grinding area provides toolless access, making setup changes and position adjustments quick and convenient without the need for separate tools.

How is dust and debris managed on this machine?

The IBDG-248 is equipped with two dust collection ports that minimize debris buildup during use. The 2 in. dust port size accommodates standard dust collection hoses for connection to a shop vacuum or dust collector.

What safety features are built into the IBDG-248?

The machine includes a safety switch with a removable key, which prevents unauthorized or accidental startup. Additionally, full guarding of all non-work contact points is provided to protect the operator during grinding operations.
