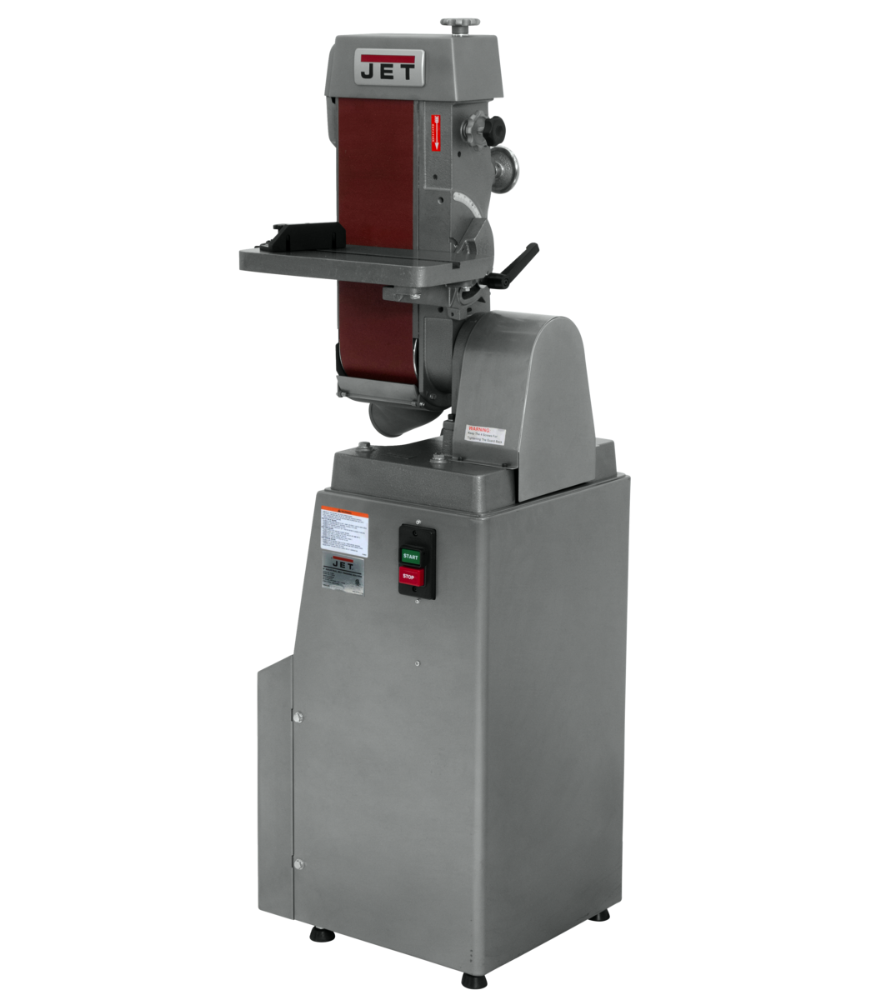

JET J-4301A 6x48 Industrial Belt Finishing Machine 3PH is a professional-grade finishing solution from JET, engineered for high-performance belt sanding and contour finishing in demanding industrial shop environments. With a versatile combination of adjustable components, enclosed safety features, and a tilting table, this machine delivers the precision and adaptability serious woodworkers and fabricators require.

Key Features

• Adjustable dust deflector and dust chute help manage debris during operation
• Adjustable, heavy-duty, cast iron removable platen provides a solid, reliable work surface
• Belt head adjusts both vertically and horizontally with variable position locks for maximum versatility
• Completely enclosed drums and guarded sanding belt enhance operator safety
• Fine thread adjustments enable simple and easy belt tracking
• Removable upper belt guard allows for contour finishing operations
• Table tilts 45 deg. out and 20 deg. in to accommodate all angle finishing operations, including plain and compound mitering

Specifications

• Stock Number: 414601
• Belt Table Size: 7-3/8 x 14-3/4 in.
• Belt Table Tilt: 45 deg. Out, 20 deg. In
• Motor: 1-1/2 HP, 230V, 3Ph
• Overall Dimensions (L x W x H): 29 x 16 x 58 in.
• Style (Type): Belt
• Table Slots: 5/8 in.
• Weight: 215 lbs.
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What power supply does this belt finishing machine require?

The JET J-4301A is powered by a 1-1/2 HP motor rated at 230V, 3-Phase. It is designed for three-phase industrial electrical service, making it well-suited for professional shop environments equipped with three-phase power.

Can the table be angled for bevel and miter finishing operations?

Yes. The table tilts 45 deg. out and 20 deg. in, allowing the machine to handle a full range of angle finishing operations including plain and compound mitering. This versatility makes it capable of producing precise angled finishes across a wide variety of workpiece profiles.

How does the belt head adjust on this machine?

The belt head adjusts both vertically and horizontally, and is secured using variable position locks. Fine thread adjustments are also included for simple and easy belt tracking, ensuring consistent, accurate performance during operation.
