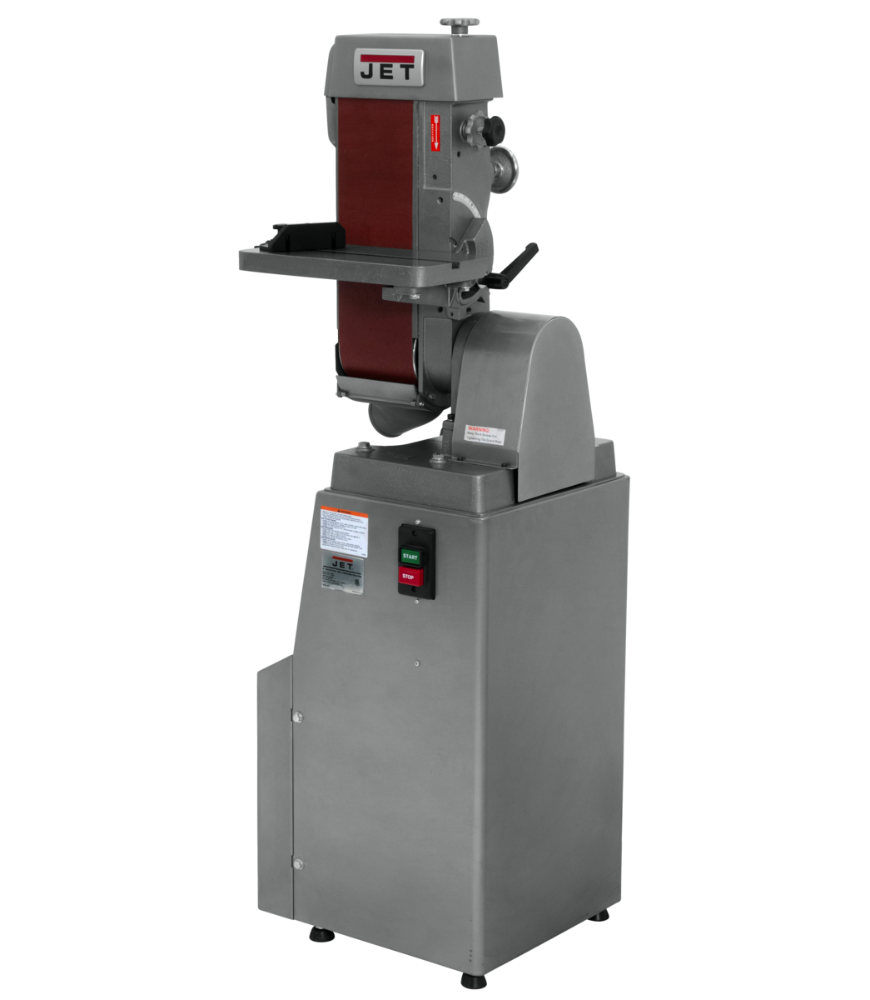

JET J-4300A 6x48 Industrial Belt Finishing Machine 1PH is a professional-grade belt sander engineered by JET for high-performance surface finishing, contour work, and compound mitering in demanding shop environments. Built around a heavy-duty one-piece steel stand, this 1-1/2 HP machine delivers exceptional versatility through a fully adjustable belt head, tilting table, and removable cast iron platen - making it a go-to solution for woodworkers and fabricators who demand precision and durability in every pass.

Key Features

• Adjustable dust deflector and dust chute help keep the work area clean during extended finishing operations
• Adjustable, heavy-duty, cast iron removable platen provides a rigid, stable backing surface for flat and contour sanding
• Belt head adjusts vertically and horizontally with variable position locks for precise positioning across a wide range of workpiece sizes and orientations
• Completely enclosed drums and guarded sanding belt deliver enhanced operator safety throughout use
• Fine thread adjustments for simple and easy belt tracking keep the abrasive belt running true with minimal downtime
• Removable upper belt guard enables contour finishing on irregular or curved profiles
• Table tilts 45 deg. out and 20 deg. in, supporting all angle finishing operations including plain and compound mitering
• Heavy-duty one-piece steel stand provides a stable, rigid foundation suited to industrial shop environments

Specifications

• MPN: JT9-414600
• Stock Number: 414600
• Style (Type): Belt
• Motor: 1-1/2 HP, 115/230V, 1Ph
• Belt Table Size (In.): 7-3/8 x 14-3/4
• Belt Table Tilt (Deg.): 45 Out, 20 In
• Table Slots (In.): 5/8
• Overall Dimensions (L x W x H) (In.): 29 x 16 x 58
• Weight (Lbs.): 215
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What are the table tilt capabilities of this belt finishing machine?

The table tilts 45 deg. out and 20 deg. in, allowing for all angle finishing operations including both plain and compound mitering tasks.

Can the upper belt guard be removed for specialized finishing work?

Yes. The upper belt guard is removable, which allows the machine to be used for contour finishing on curved or irregular workpiece profiles.

How does the belt head adjust on the J-4300A?

The belt head adjusts both vertically and horizontally and is secured with variable position locks, giving the operator flexible positioning to accommodate a wide variety of workpiece sizes and finishing angles.

What type of platen does this machine use, and can it be removed?

This machine features an adjustable, heavy-duty, cast iron removable platen. It can be removed when needed to support contour or freehand finishing work.
