Product Description

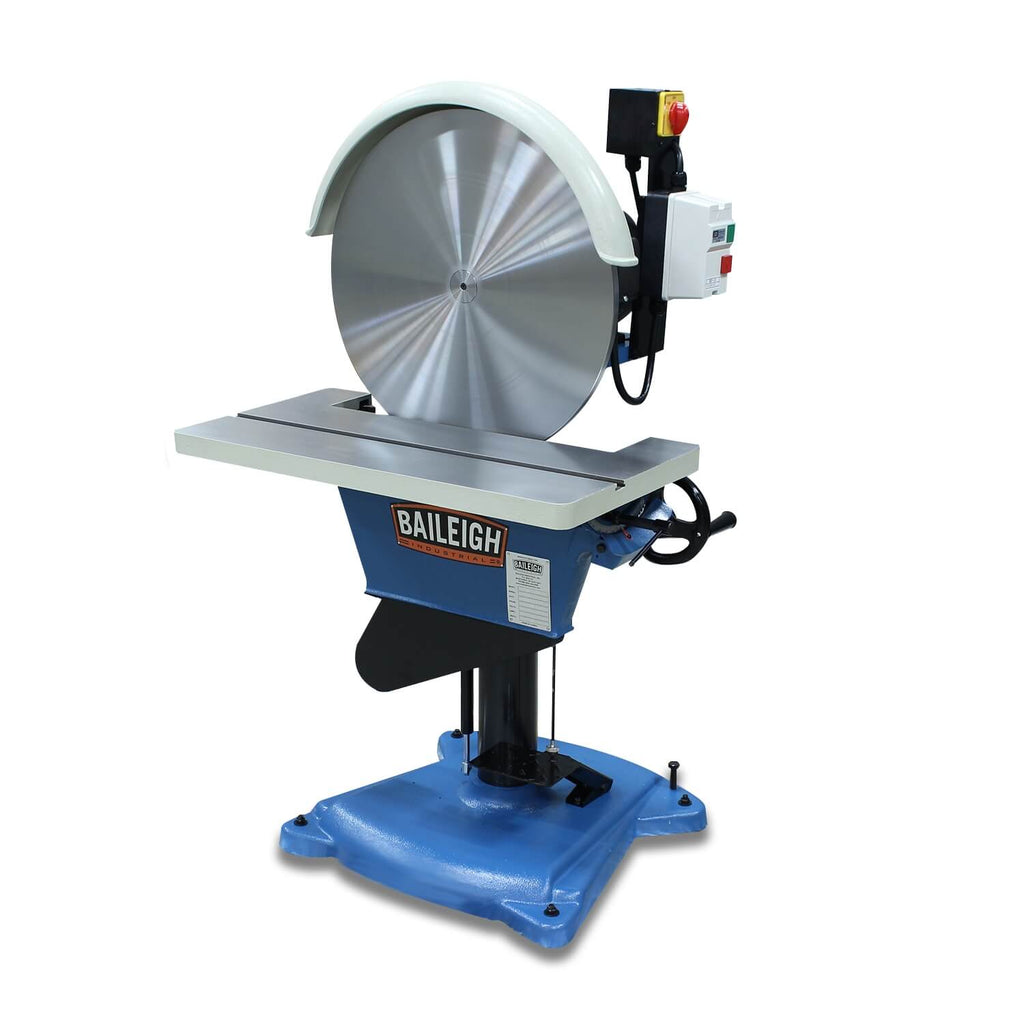

The Baileigh Heavy Duty Disc Grinder DG-500HD by Baileigh is an industrial-grade 20" disc grinder engineered for production-level metalworking shops that demand consistent, heavy-duty performance. Built on the proven DG-500 platform and taken to a higher standard, this machine delivers the power, control, and convenience features needed for smoothing burrs on metal, chamfering edges for welding, and cleaning up castings - all with the reliability of a direct-coupled 2HP motor and a host of operator-focused upgrades not commonly found on comparable machines.
Key Features

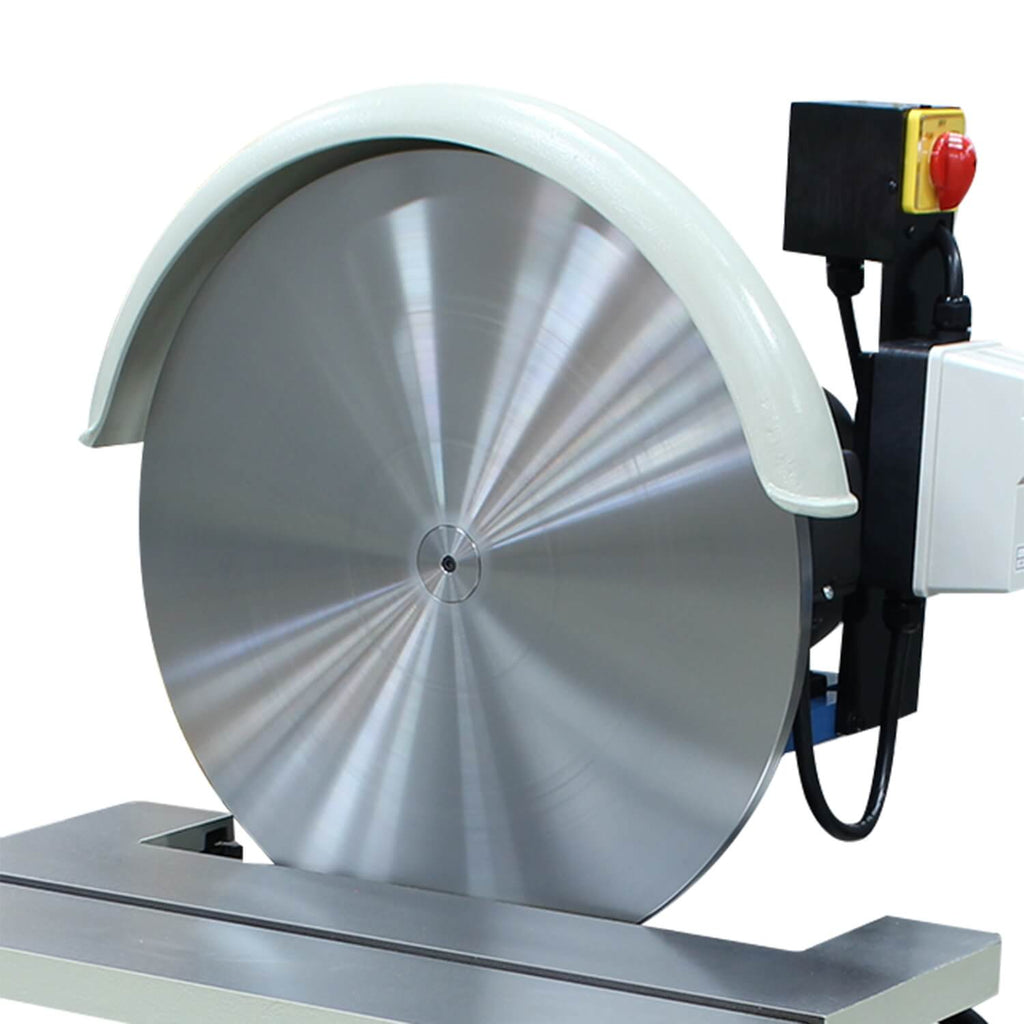

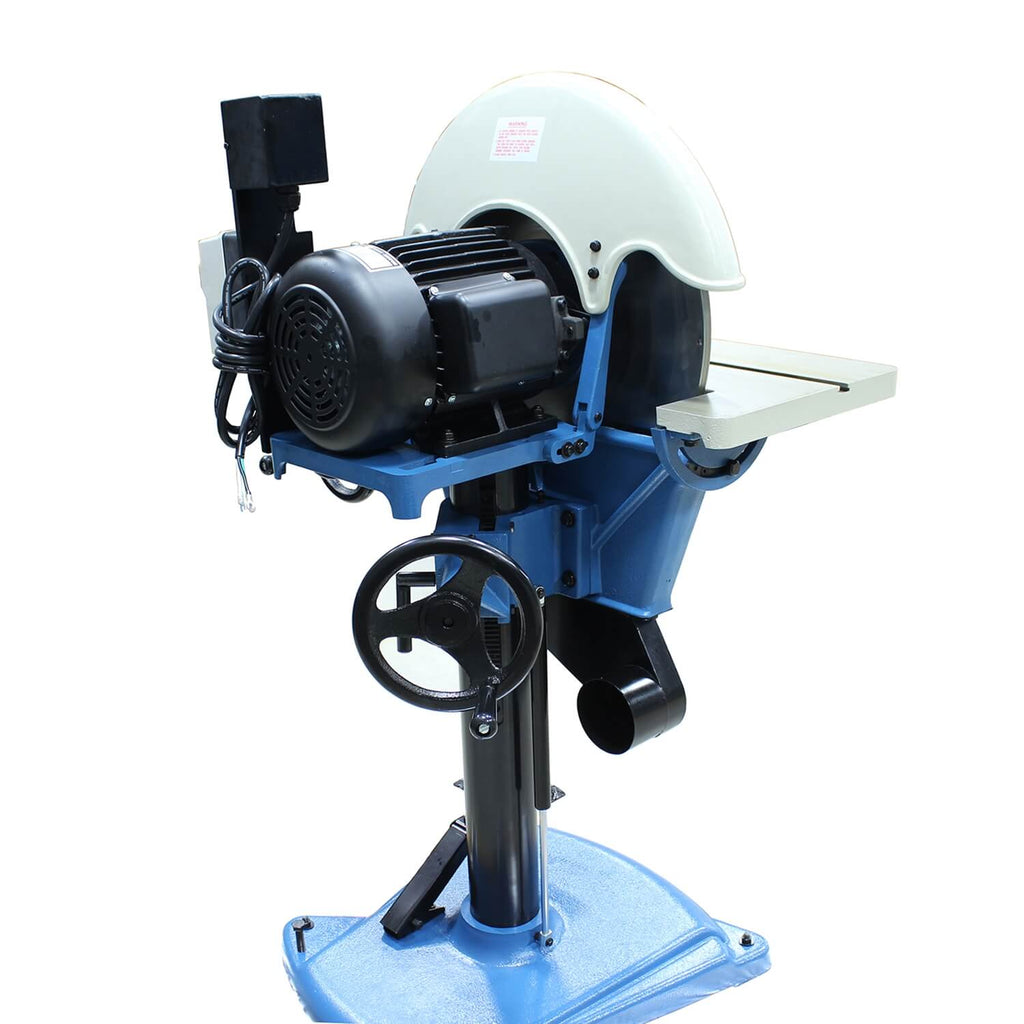

- Robust 2HP, 1750rpm motor directly coupled to the 20" grinding disc

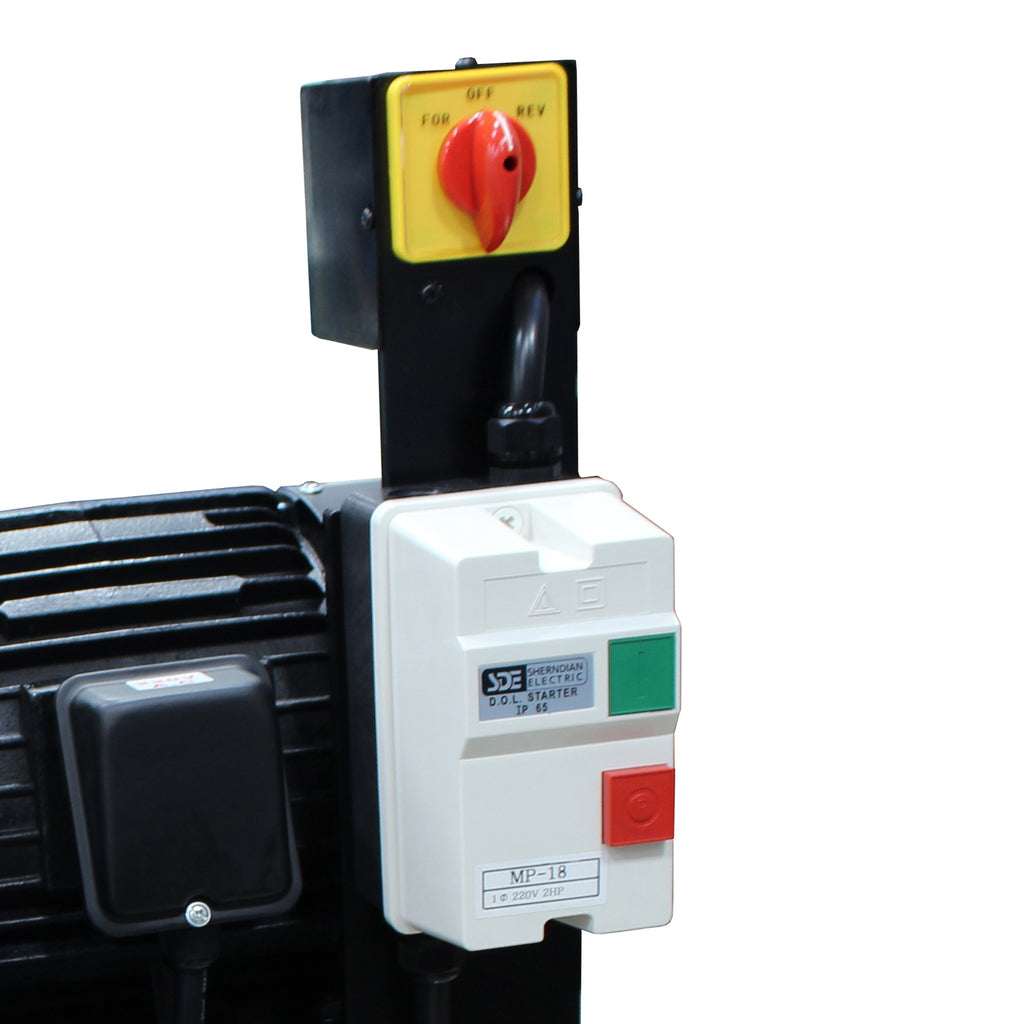

- Reversing switch - the grinding disc can be used both clockwise and counter-clockwise

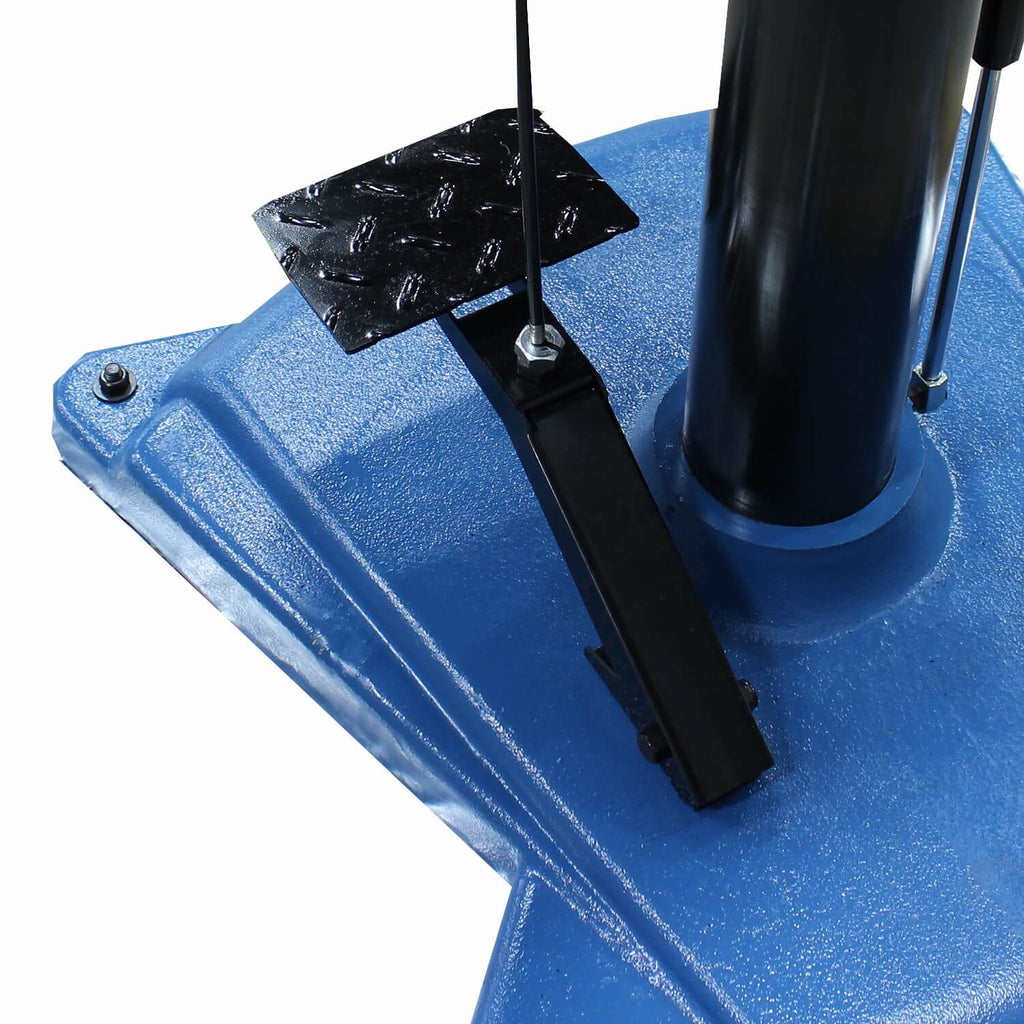

- Foot Brake - Stops the disc in a few seconds vs a few minutes. Prevents having to waste material to stop the disc faster
- 4" dust collection port

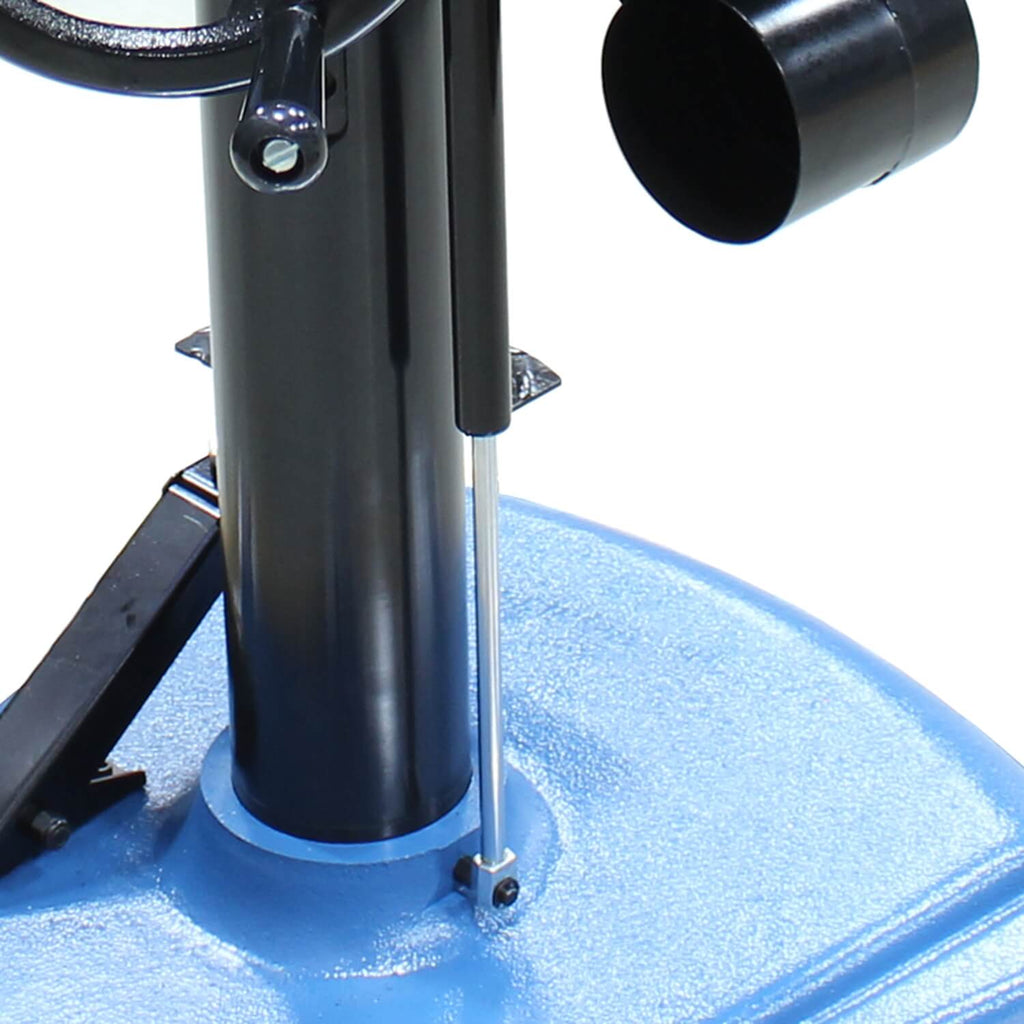

- Gas cylinder for easy table lift assist
- Miter gauge included

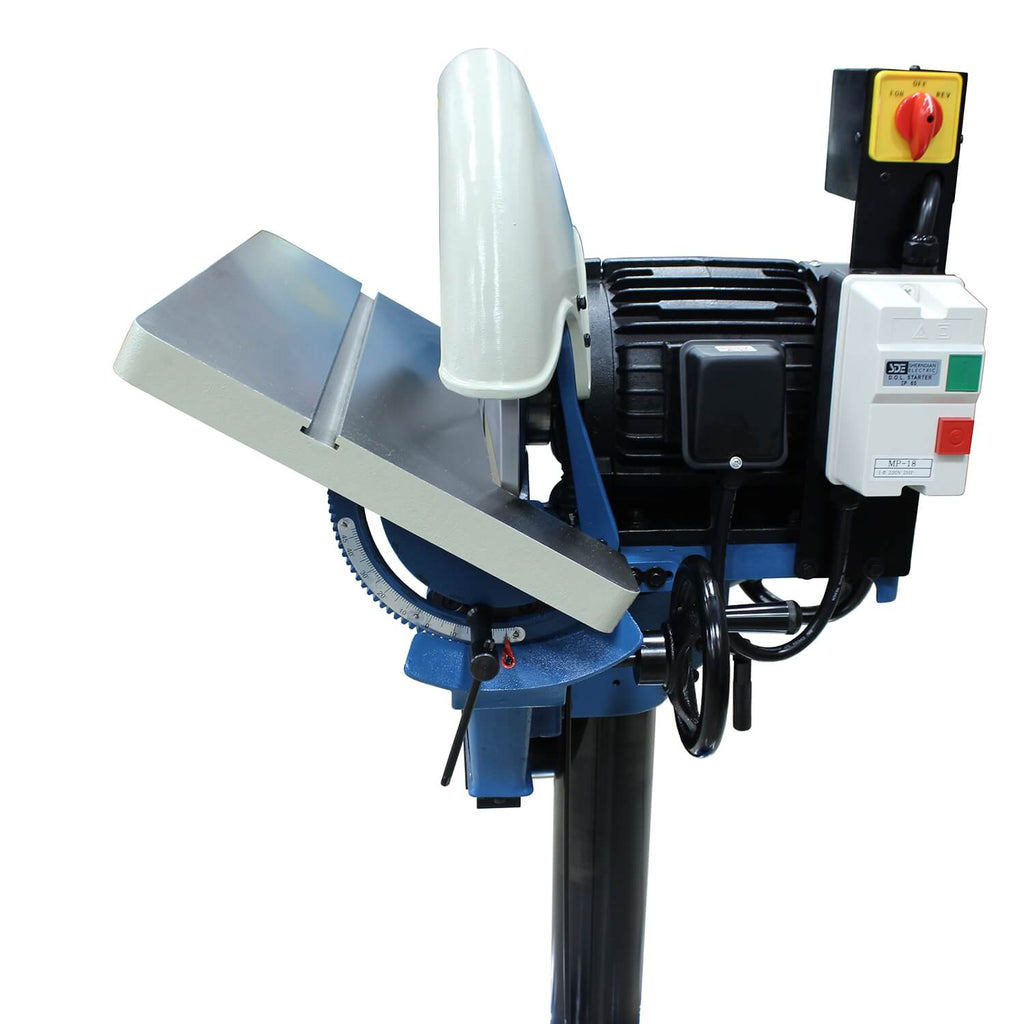

- Tilting table - 45 deg. down, 15 deg. up
- Swing away disc guard
- 220-volt single phase
Specifications
- Abrasive Type: Disc
- Disc Diameter: 20"
- Disc Speed: 1,750 rpm
- Disc Table Tilt: 45 deg. down, 15 deg. up
- Dust Port Size: 4 in.
- Motor HP: 2
- Motor Phase: Single
- Motor Voltage: 220V
- Number of Ports: 1
- Country of Origin: Taiwan
Approved Applications
- Smoothing over burrs on metal
- Chamfering edges for welding
- Cleaning up castings
What's Included
- Baileigh DG-500HD Heavy Duty Disc Grinder
- Miter gauge
Frequently Asked Questions
- What size is the grinding disc on the DG-500HD?
- The DG-500HD features a 20" grinding disc that is directly coupled to the 2HP, 1750rpm motor for consistent, high-performance material removal.
- Why is the foot brake an important feature on this disc grinder?
- The foot brake stops the disc in a few seconds versus a few minutes, which prevents having to waste material in order to stop the disc faster - a significant advantage in production shop environments where time and material efficiency matter.
- Can the grinding disc run in both directions?
- Yes. The DG-500HD includes a reversing switch that allows the grinding disc to be used both clockwise and counter-clockwise, giving operators greater flexibility depending on the workpiece and grinding application.
- What are the table tilt capabilities and dust collection options on this machine?
- The tilting table adjusts 45 deg. down and 15 deg. up to accommodate a wide range of work angles. For dust management, the machine is equipped with a 4" dust collection port to help maintain a clean working environment.
