Product Description

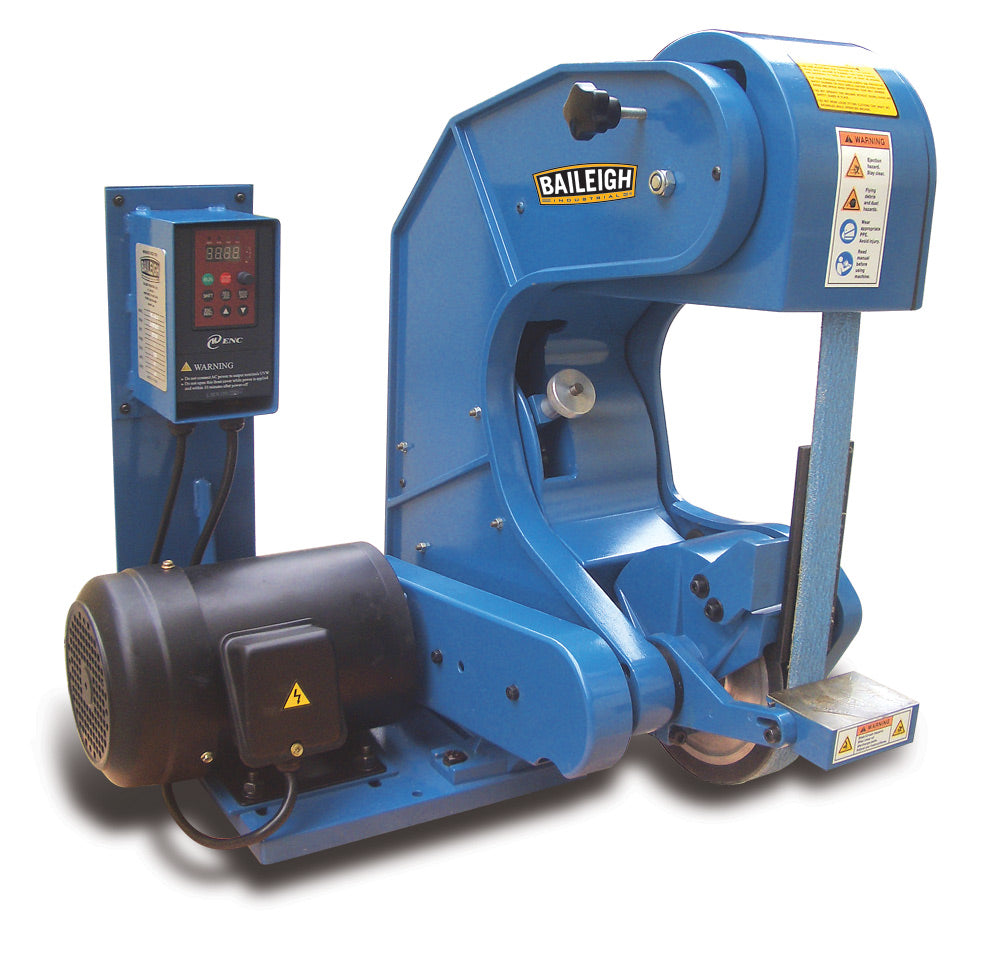

The Baileigh Three Wheel Variable Speed Belt Grinder BG-260-3-220 is a heavy-duty grinding solution from Baileigh, built around a solid cast-aluminum structure that minimizes vibration and withstands daily shop use for decades. Powered by 220-volt single-phase electricity, this three-wheel belt grinder delivers inverter-controlled speeds from 800 to 8,000 FPM, making it an exceptionally versatile machine for smoothing burrs on metal, chamfering edges for welding, and cleaning up castings.
Key Features
- Runs on 220-volt single-phase power, compatible with practically any job site or shop

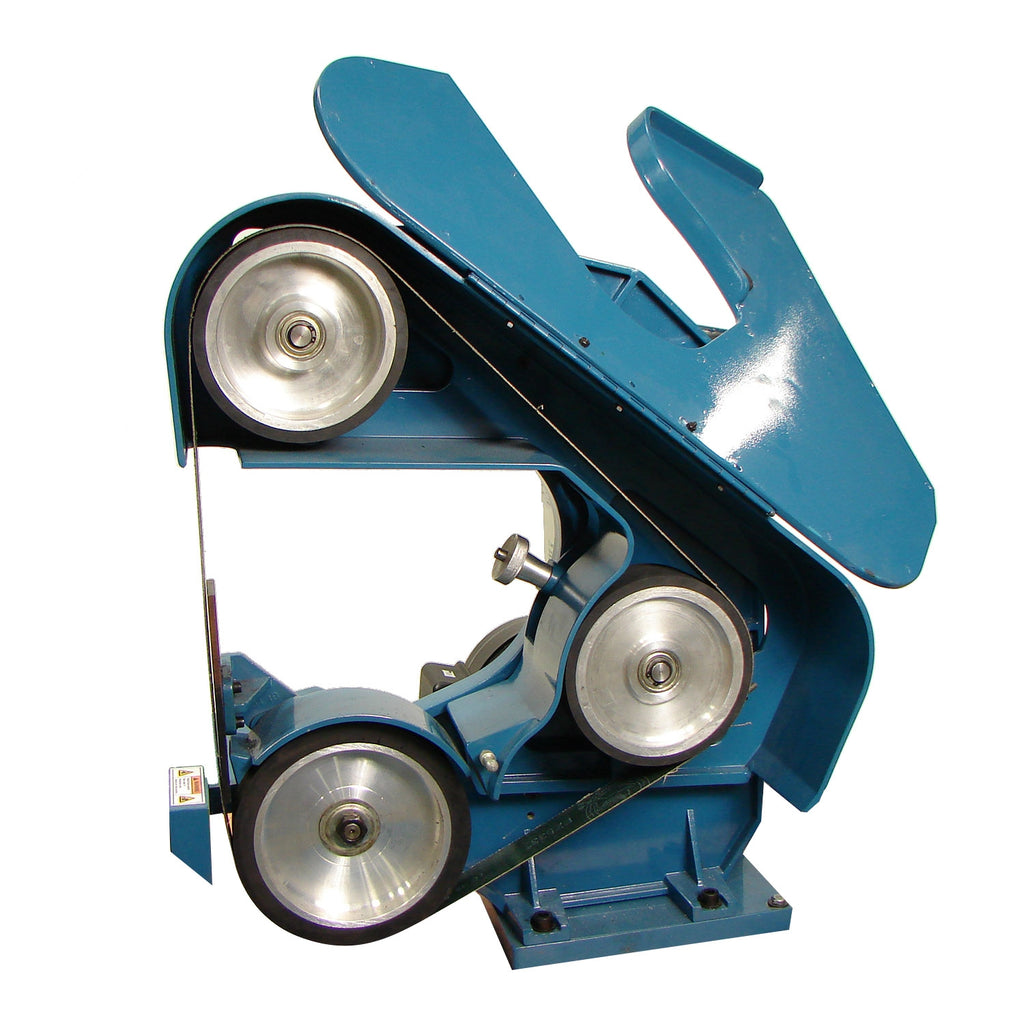

- 7" diameter contact wheel

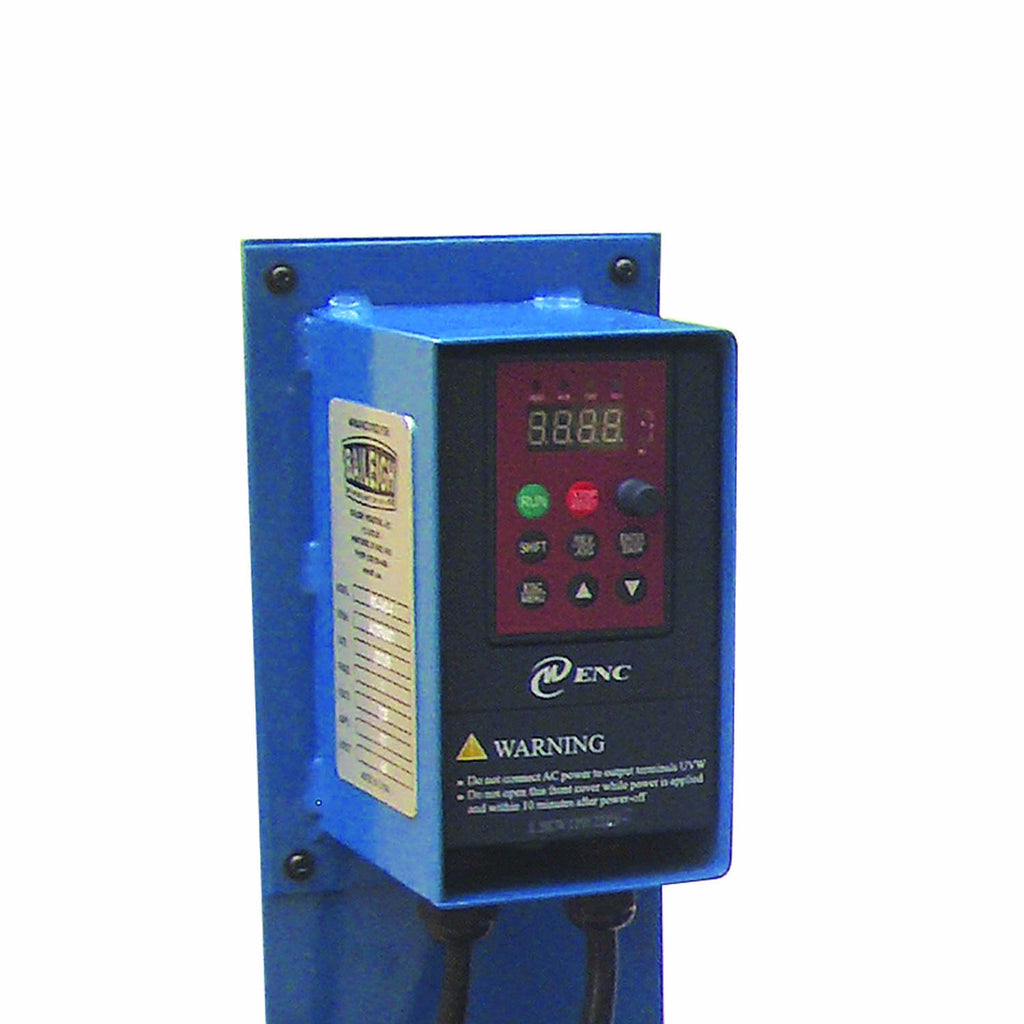

- Inverter drive speeds from 800 to 8000 fpm, so you can choose the correct speed for your application
- Grinding surface offers plenty of horizontal and vertical throat depth for those larger or unusually shaped parts
- Fully sealed ball bearings prevent breakdowns

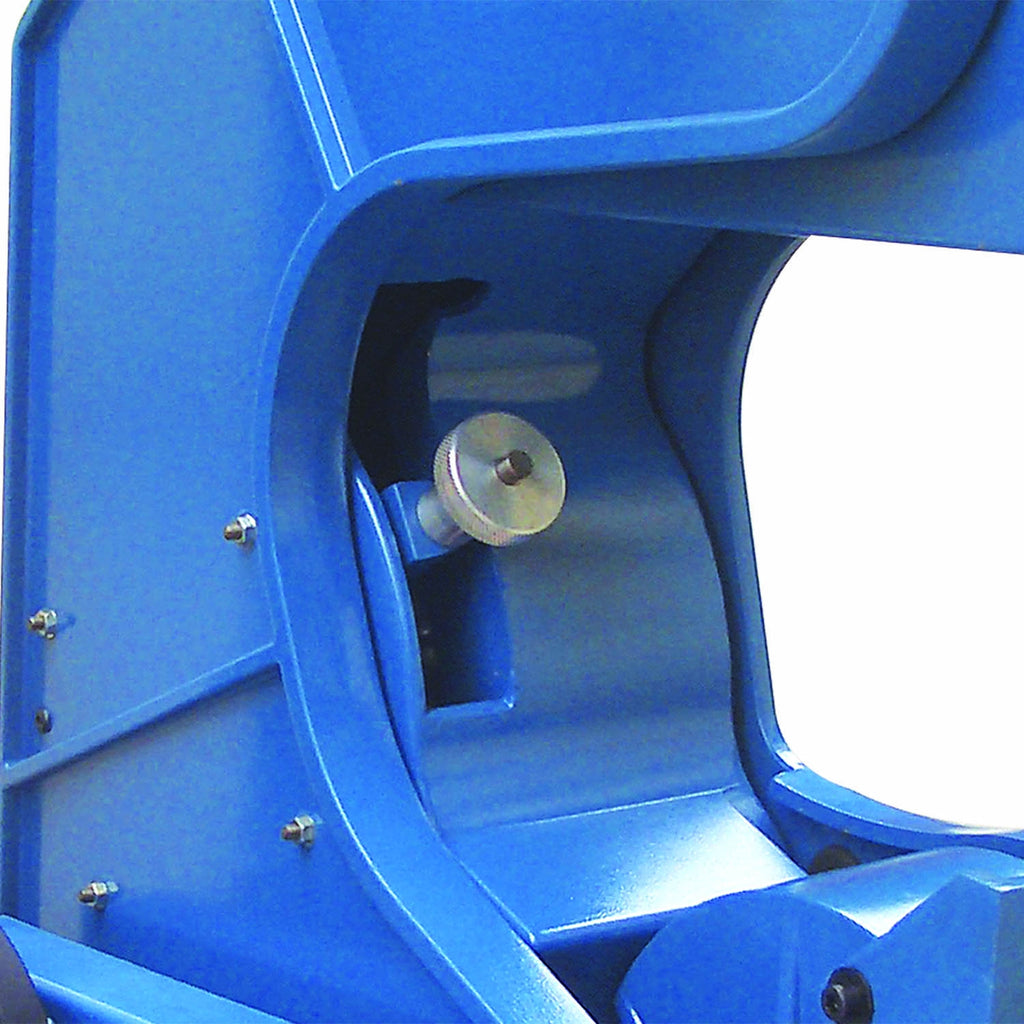

- Belt adjuster for simple tension changes and quick belt replacement
- Includes grinding table options for more precise operation

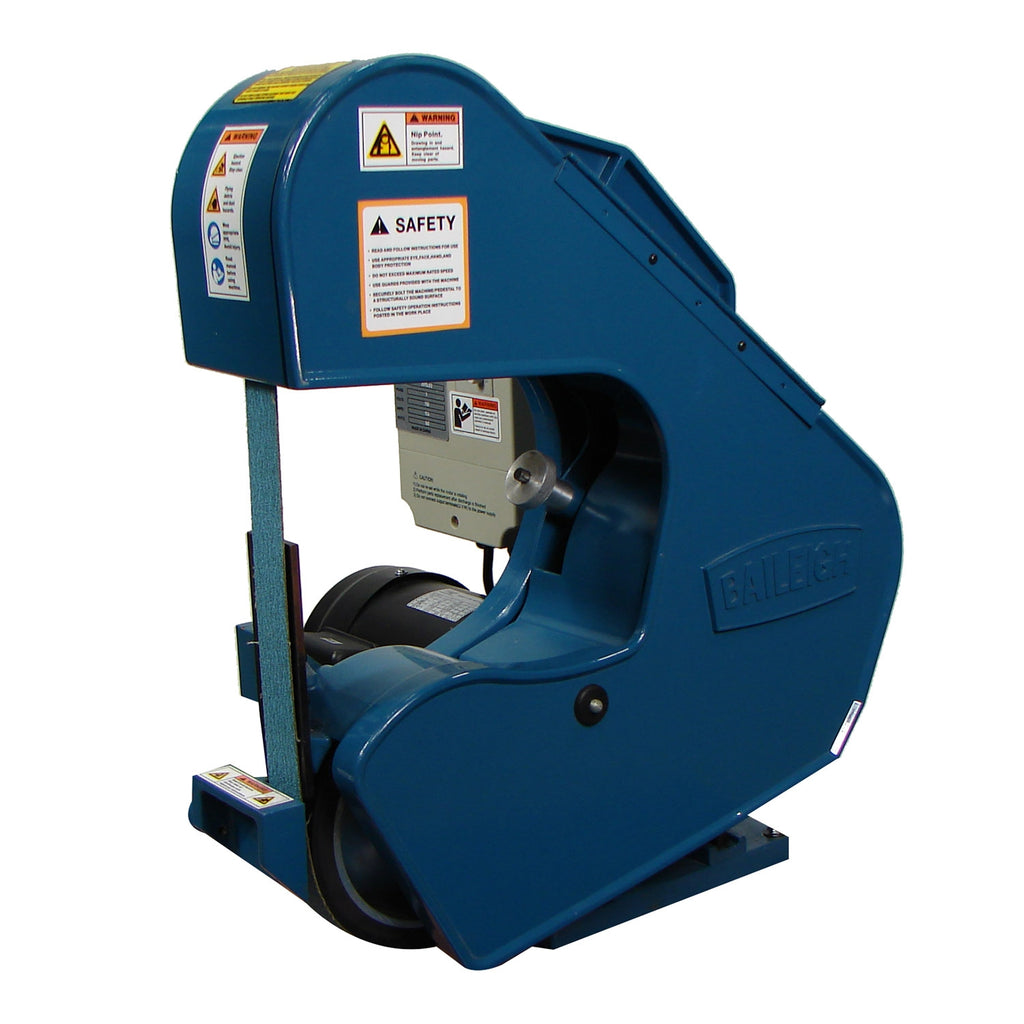

- All rotating grinder parts are fully covered for your safety
Specifications
- MPN: BA9-1000672
- Belt Size: 2 in. x 60 in.
- Belt Speed: 800 to 8,000 FPM
- Contact Wheel Size: 7 in.
- Motor HP: 1.5
- Motor Phase: Single
- Motor Voltage: 220 V.
- Country of Origin: China
Approved Applications
- Smoothing over burrs on metal
- Chamfering edges for welding
- Cleaning up castings
- Finishing larger or unusually shaped parts that require extended horizontal and vertical throat depth
Frequently Asked Questions
- What power supply does the BG-260-3-220 require?
- The BG-260-3-220 runs on 220-volt single-phase power, making it compatible with practically any job site or shop without the need for special wiring or three-phase electrical service.
- What belt speed range does this grinder offer, and why does it matter?
- The inverter drive allows you to dial in speeds from 800 to 8,000 FPM. This wide range means you can select the correct speed for your specific application - slower speeds for more delicate finishing work and higher speeds for aggressive material removal.
- How difficult is it to change or tension the belt on this machine?
- The BG-260-3-220 features a dedicated belt adjuster designed for simple tension changes and quick belt replacement, minimizing downtime between tasks.
- What safety features are built into this belt grinder?
- All rotating grinder parts are fully covered for your safety, and the machine uses fully sealed ball bearings that help prevent unexpected breakdowns during operation.
