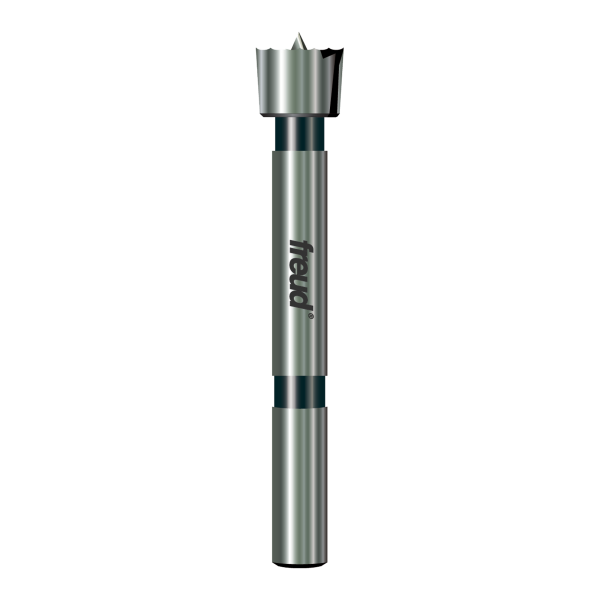

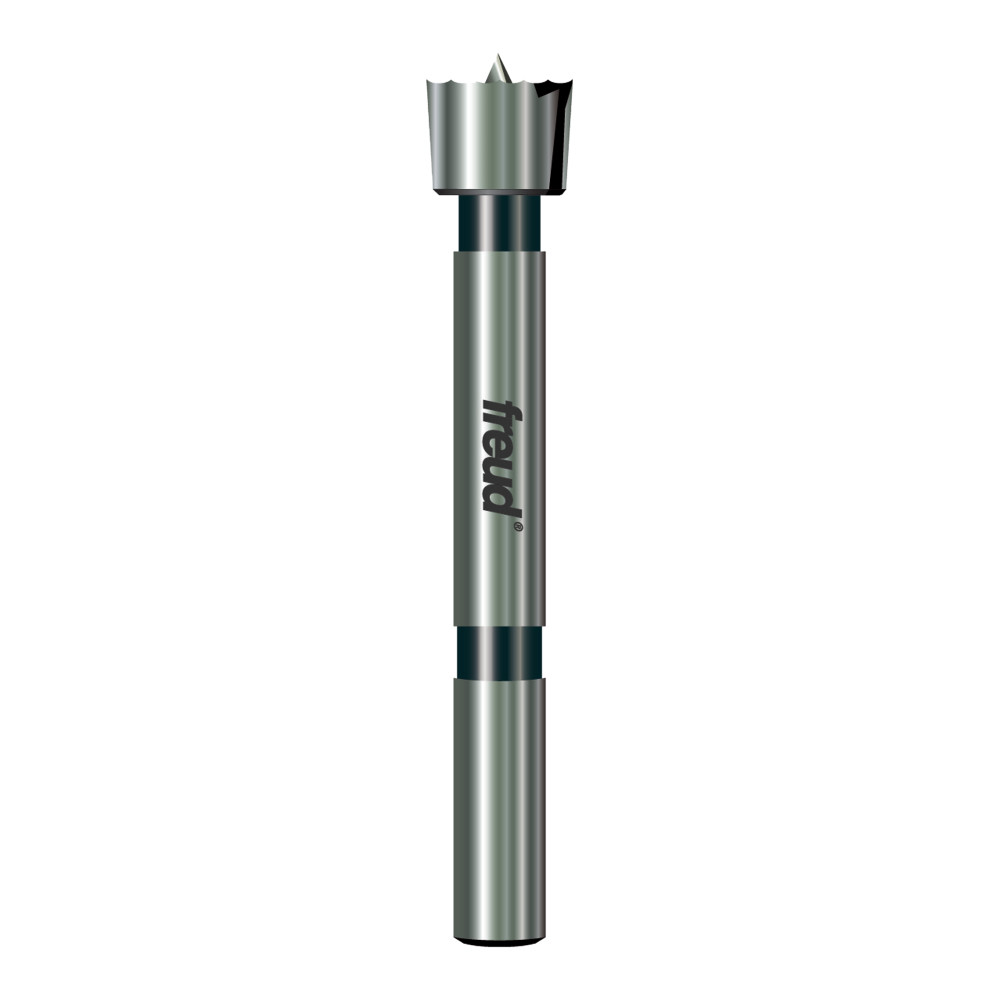

The Freud Precision Shear 5/8" Forstner Bit (PB-004) is engineered for woodworkers who demand clean, flat-bottom holes with minimal tear-out. Freud's Precision Shear series uses a double-ground, razor-sharp serrated edge that slices continuously throughout each rotation, reducing splintering and chipping in hardwoods, softwoods, veneered plywood, solid surface, and composites. Whether you are drilling pocket holes, overlapping holes, or precise flat-bottom bores on a drill press or handheld drill, this 5/8" bit delivers the accuracy and surface quality that eliminates the need for additional sanding.

Key Features

• Razor sharp serrated edge for fast and flawless cutting - the double-ground serrated profile slices cleanly throughout every rotation, producing smooth hole walls with less splintering and chipping so your workpiece needs little to no cleanup.
• Quality forged construction for extended life - forged steel construction provides the durability to withstand repeated use across a wide range of wood species and composite materials, giving this bit a longer working lifespan than stamped alternatives.
• Ultra sharp spur to ensure an accurate starting hole - the precision-ground center spur anchors the bit on contact, preventing wandering and keeping the hole exactly on layout, even in veneered plywood where surface accuracy is critical.
• Steep angled cutting edges - produce holes that are smooth and flat, and create "chisel-like" curls for fast, clean chip removal - the steep geometry lifts chips up and out of the cutting zone efficiently, reducing friction, heat buildup, and premature dulling so you can drill faster with consistent results.
• Freud Limited Lifetime Guarantee - backed by the manufacturer's lifetime warranty, offering long-term confidence in the tool's performance and durability.
• Multiple cutting edges for greater shearing action - the unique geometric design allows for faster rotational speeds and more efficient cutting compared to traditional Forstner bit designs that generate dust and small chips which increase friction and heat.

Why This Product

• Traditional Forstner bit designs accumulate chips and fine dust in the cutting area, increasing friction and heat that dulls the bit quickly - Freud Precision Shear's serrated geometry ejects material as "chisel-like" curls, keeping the cutting zone cooler and extending sharpness over more holes.
• The double-ground serrated edge produces flawless flat-bottom holes in hardwoods, softwoods, veneered plywood, solid surface, and composites - material types where tear-out and rough edges are the most common finishing problems.
• At 5/8" diameter with a 5/16" shank and 3 1/2" overall length, this bit is sized to work in both drill press and handheld drill setups, giving woodworkers versatility across bench and job-site applications including pocket holes and overlapping hole layouts.
• Manufactured in Austria with forged construction and backed by Freud's Limited Lifetime Guarantee, this bit is built to professional standards for users who need reliable, repeatable cutting performance across a full range of wood drilling tasks.

Specifications

• Brand: Freud
• Model Number: PB-004
• Sub-Brand: Precision Shear
• Category: Forstner Bits
• Diameter: 5/8"
• Length: 3 1/2"
• Shank: 5/16"
• Rotation: RH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Austria

Approved Applications

• Drilling flat bottom holes, pocket holes, or overlapping holes in plywoods, hardwoods, and softwoods.

Frequently Asked Questions

What makes the Precision Shear design different from a standard Forstner bit?

Standard Forstner bit designs produce small chips and dust that collect in the cutting area, increasing friction and heat and causing the bit to dull quickly while leaving rough hole edges that require sanding. The Freud Precision Shear design uses a double-ground, razor-sharp serrated edge with multiple cutting edges that generate greater shearing action and eject material as "chisel-like" curls. This keeps the cutting zone cleaner, reduces heat buildup, allows for faster rotational speeds, and produces flawless flat-bottom holes with smooth edges.

What materials can this 5/8" Forstner bit drill through?

This bit is rated for use in composites, solid surface, veneered plywood, hardwoods, and softwoods. The razor-sharp serrated edge is particularly effective in veneered plywood and hardwoods where tear-out and surface damage are common concerns with less refined bit designs.

What tools are compatible with this Forstner bit?

The Freud PB-004 is compatible with both a drill press and a handheld drill. The 5/16" shank is sized to fit standard chuck configurations on both tool types, giving you flexibility to use it for bench work or portable drilling applications.

What warranty does this bit carry?

This Forstner bit is backed by Freud's Limited Lifetime Guarantee, providing long-term assurance in the quality of the forged construction and cutting edge performance.
