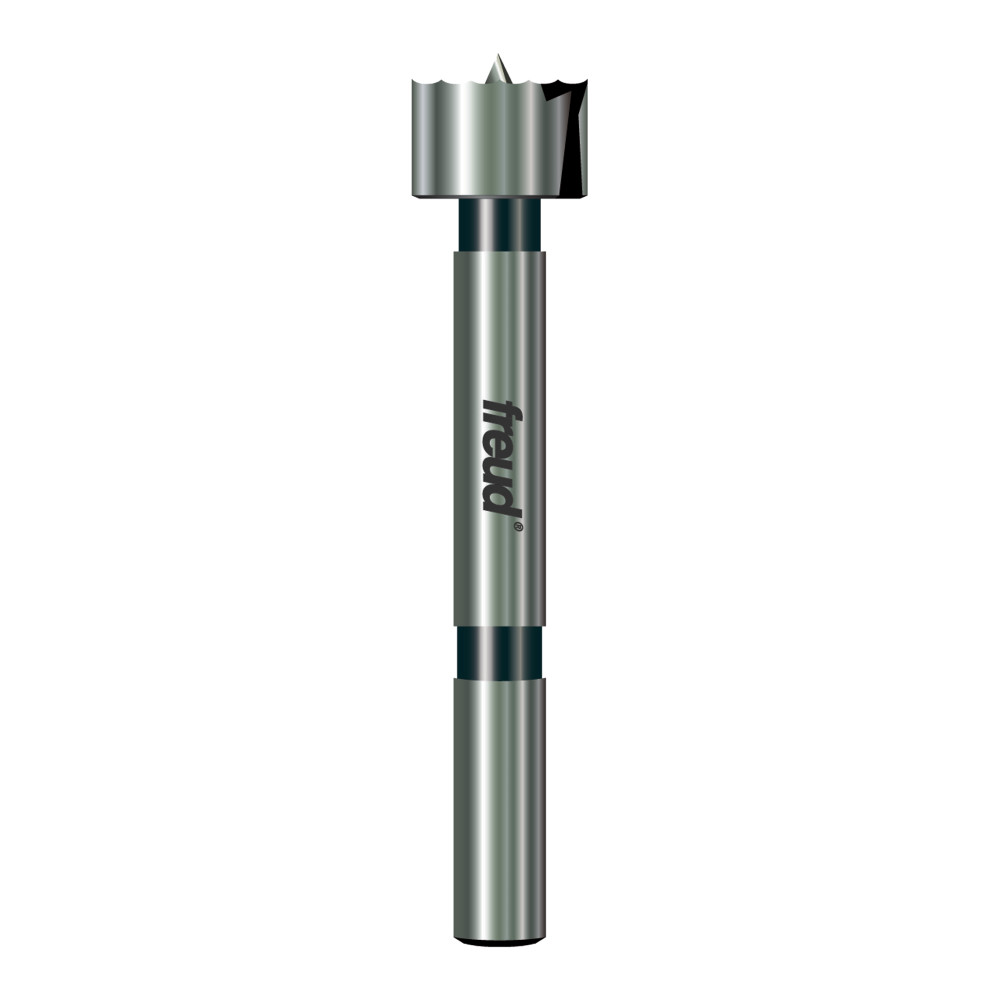

The Freud Precision Shear 3/4" Forstner Bit (PB-005) is an Austrian-forged boring tool engineered for woodworkers who demand clean, flat-bottom holes with zero tearout. Whether you are drilling pocket holes, overlapping holes, or blind holes in hardwoods, softwoods, veneered plywood, composites, or solid surface materials, this bit delivers a level of cut quality that standard Forstner designs simply cannot match. Its double-ground, razor-sharp serrated cutting edge slices through wood fiber continuously throughout each rotation - reducing splintering and chipping while producing flawlessly smooth hole walls that require no sanding.

Key Features

• Razor-sharp serrated cutting edge - slices through material throughout the full rotation of the bit, producing flat-bottom holes with minimal splintering or chipping for a finish-ready result every time.
• Unique multi-edge geometric design - generates greater shearing action compared to conventional Forstner bit designs, allowing for faster rotational speeds and more efficient cutting with less heat buildup.
• Quality forged construction - the forged body provides exceptional structural integrity and extended service life, making this bit a long-term investment for professional and serious hobbyist use.
• Ultra-sharp spur tip - centers the bit precisely at the start of each bore, reducing walking and ensuring accurate hole placement in hardwoods, softwoods, and engineered panels alike.
• Steep angled cutting edges - produce holes that are smooth and flat, and create chisel-like curls for fast, clean chip removal, which keeps the cutting area clear and reduces friction-induced heat that dulls competing bits.
• Freud Limited Lifetime Guarantee - backed by Freud's own warranty, giving buyers confidence in the long-term reliability of this precision boring tool.
• 3/8" shank diameter - compatible with standard drill press chucks and handheld drill drivers, making this bit versatile across common shop setups.
• Overall length of 3-1/2" - provides sufficient reach for typical pocket hole and flat-bottom drilling tasks in furniture making, cabinet work, and joinery.

Why This Product

• Solves the tearout problem - conventional Forstner bits leave rough edges that require additional sanding. The Precision Shear serrated edge design produces clean hole walls in veneered plywood, hardwoods, and composites right off the bit, saving time on finishing work.
• Runs cooler and stays sharper longer - competing designs allow small chips and dust to accumulate in the cutting zone, increasing friction and heat that dull the bit prematurely. The chisel-like curl chip ejection of this bit keeps the cutting area clear and the edge sharp through more uses.
• Versatile enough for drill press and handheld use - the 3/8" shank fits both drill press chucks and standard handheld drill drivers, so this single bit works across multiple tools already in most shops.
• Built and backed for professional demands - forged construction combined with Freud's Limited Lifetime Guarantee means this Forstner bit is designed to hold up under frequent professional use in woodworking, cabinetry, and furniture production.

Specifications

• Brand: Freud
• Sub-Brand: Precision Shear
• Manufacturer Part Number: PB-005
• Category: Forstner Bits
• Diameter: 3/4"
• Length: 3-1/2"
• Shank: 3/8"
• Rotation: RH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Austria

Approved Applications

• Drilling flat-bottom holes in plywoods, hardwoods, and softwoods.
• Drilling pocket holes in wood panels and solid stock.
• Drilling overlapping holes for mortise work and custom joinery.
• Boring clean holes in composites, solid surface materials, and veneered plywood without tearout.

Frequently Asked Questions

What makes Precision Shear Forstner bits different from standard Forstner bit designs?

The Precision Shear design features a double-ground, razor-sharp serrated edge that slices throughout the full rotation of the bit. This produces flawless flat-bottom holes with less splintering and chipping compared to conventional Forstner bit designs, which leave rough edges that typically require sanding. The multiple cutting edges also generate greater shearing action, allowing for faster rotational speeds and more efficient material removal.

Can this bit be used with a handheld drill, or does it require a drill press?

This bit is compatible with both a drill press and a handheld drill. Its 3/8" shank fits standard chucks on both tool types, making it practical for job-site and shop use alike.

What materials can the Freud PB-005 Forstner bit drill through?

This bit is designed to drill through composites, solid surface, veneered plywood, hardwoods, and softwoods. It is specifically suited for applications where a clean, flat-bottom hole is required without tearout or rough edges.

Does this Forstner bit come with any warranty coverage?

Yes. The Freud Precision Shear Forstner Bit is backed by Freud's Limited Lifetime Guarantee, providing long-term coverage on this precision boring tool.
