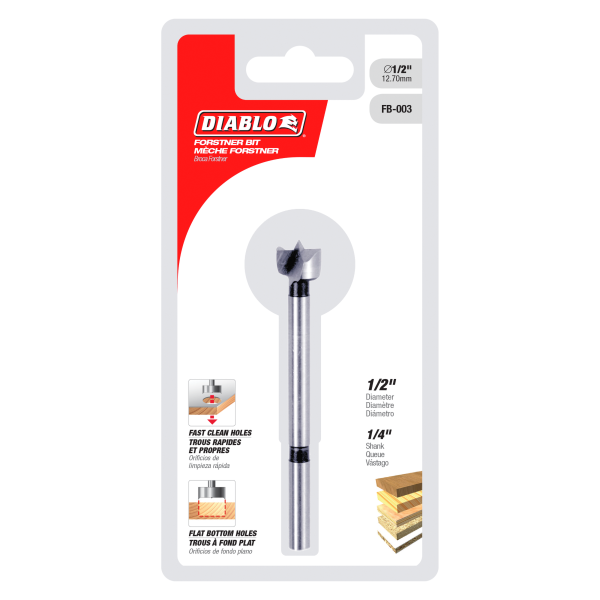

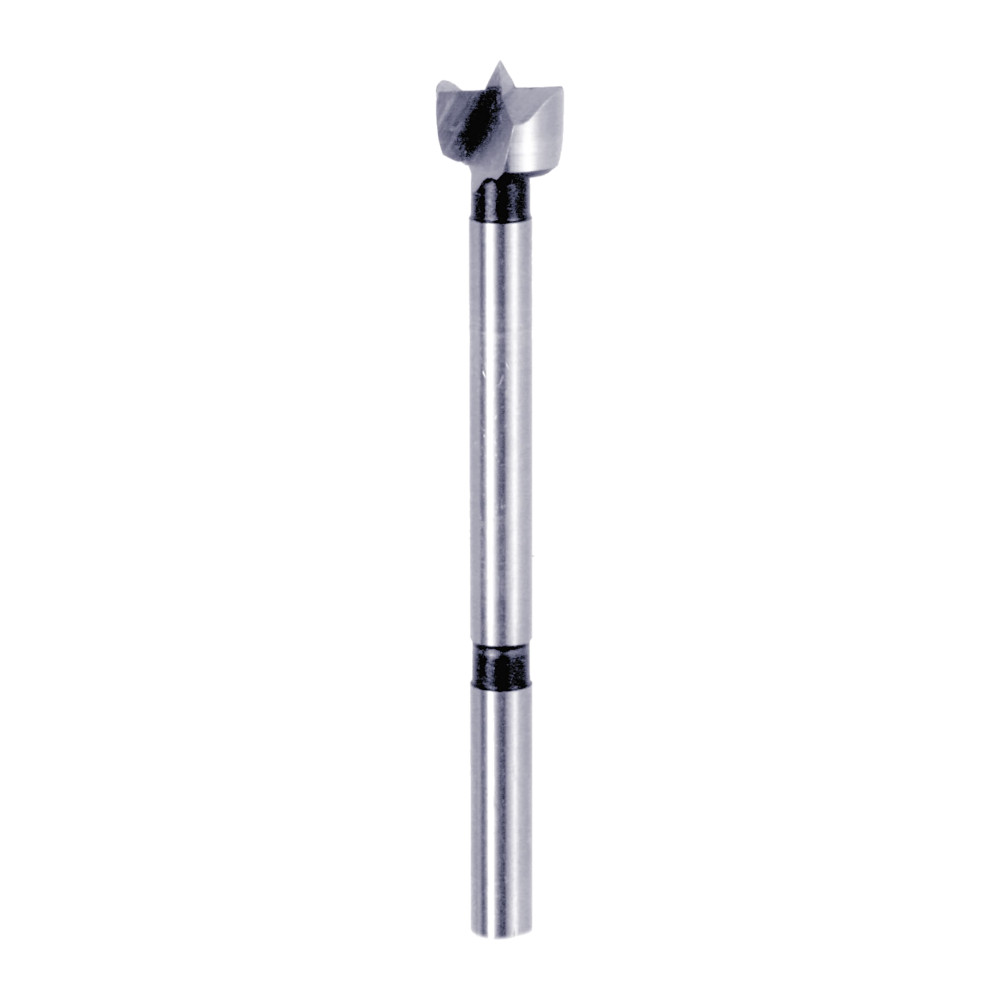

The Diablo 1/2 in. Forstner Bit for Wood is a precision-machined boring tool built for woodworkers who demand clean, flat-bottomed holes in a wide range of wood materials. Designed by Diablo, this 1/2 in. diameter bit features a forged, hardened steel body and an ultra-sharp center spur that eliminates bit wander and delivers consistently accurate, splinter-free results - whether you are drilling straight through, at an angle, or in overlapping patterns. Compatible with both drill presses and handheld drills, this Forstner bit is an ideal choice for pocket holes, shelf pin holes, and any application requiring a smooth, flat bore in hardwoods, softwoods, veneered plywood, or MDF.

Key Features

• Ultra-sharp center spur resists walking on the material surface - ensures accurate hole placement the first time, every time, with no need for a center punch
• Drills holes in all types of wood without splintering - delivers a clean, professional finish in hardwoods, softwoods, veneered plywood, and MDF
• Forged construction with a hardened steel body - extends the working life of the bit and maintains a sharp cutting edge through repeated use
• Steep, angled cutting edges produce smooth, flat holes and create chisel-like curls for fast, clean chip removal - keeps the work area clear and reduces heat buildup during drilling
• Drills straight, angled, and overlapping holes - gives woodworkers flexibility across a variety of joinery and boring tasks
• Requires a minimum chuck size of 3/8 in. - compatible with a broad range of handheld drills and drill presses already in a workshop
• 1/4 in. shank accommodates standard chuck configurations - easy to swap in and out without specialized tooling

Why This Product

• Purpose-built for flat-bottomed boring - if your project calls for pocket holes, hinge mortises, or shelf pin bores that require a clean, level floor rather than a tapered drill point, this Forstner bit gives you exactly that result in a single pass
• Splinter-free performance across multiple wood types - the steep angled cutting edges and sharp spur work together to produce clean entry holes in veneered plywood and MDF where tearout is a common problem with standard twist bits
• Forged hardened steel extends bit life - a more durable body means fewer replacements and a consistently sharp edge across a greater number of holes, making this bit a practical long-term addition to any woodworking shop
• Flexible drilling geometry - the ability to bore straight, angled, and overlapping holes with a single bit reduces the number of specialized tools needed and supports a wider range of woodworking and cabinetry applications

Specifications

• Brand: Diablo
• Manufacturer Part Number: FB-003
• Product Group: Forstner Bits
• Category: Individual Bits
• Diameter: 1/2 in.
• Length: 3-1/2 in.
• Shank: 1/4 in.
• Minimum Chuck Size: 3/8 in.
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Hardwoods; Softwoods; Veneered Plywood; MDF
• Pack Quantity: 1
• Country of Origin: Austria

Approved Applications

• Drilling flat bottom holes in hardwoods, softwoods, and plywoods
• Cutting pocket holes for joinery and cabinetry work
• Boring overlapping holes for mortises and shaped cutouts in wood panels

Frequently Asked Questions

What types of wood can this Forstner bit drill through?

This Diablo Forstner bit is designed to drill through hardwoods, softwoods, veneered plywood, and MDF without splintering. The sharp center spur and steep angled cutting edges work across all of these materials to produce clean, flat-bottomed holes.

Can this bit be used in a handheld drill, or is a drill press required?

This bit is compatible with both a drill press and a handheld drill. A minimum chuck size of 3/8 in. is required, and the 1/4 in. shank fits standard chuck configurations commonly found on handheld drills.

Can this bit drill angled or overlapping holes, or only straight through?

Yes - this Forstner bit is specifically designed to drill straight, angled, and overlapping holes in all types of wood. This makes it suitable for a variety of woodworking tasks including joinery, mortising, and shaped cutouts where overlapping bores are needed.

What is the difference between this bit's usage and a standard twist drill bit?

Unlike a standard twist drill bit, which leaves a tapered, pointed bottom, this Forstner bit is built for drilling flat bottom holes, pocket holes, or overlapping holes. The forged hardened steel body and chisel-like cutting edges produce a smooth, level bore floor - a result that standard twist bits cannot achieve.
