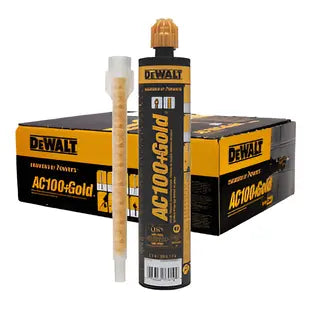

DeWALT AC100 Gold Quik-Shot Acrylic Adhesive Anchoring System is a two-component vinylester adhesive designed for securely bonding threaded rod and reinforcing bar elements into drilled holes in concrete and masonry base materials. Whether you are working with solid concrete or hollow base materials using screen tubes, this injection adhesive system delivers reliable, high-strength anchoring performance for structural and construction applications. The automatic mixing-through-nozzle design simplifies the dispensing process, ensuring a consistent adhesive blend every time.

Key Features

• Two-component vinylester adhesive formula - provides strong chemical bonding between threaded rod or rebar and the surrounding concrete or masonry base material, making it suitable for demanding structural anchoring applications
• Automatic mixing when dispensed through the nozzle - eliminates the need for manual mixing, reducing preparation time and the risk of improperly blended adhesive
• Compatible with both solid and hollow base materials - gives installers flexibility to use the same system across a wider range of anchoring conditions, including hollow masonry with screen tubes
• Designed for use with threaded rod and reinforcing bar - covers common fastening scenarios in concrete construction and renovation work, reducing the need for mechanical anchors in many situations
• Working and curing time varies with base material temperature - allows the installer to reference the chart on the cartridge to plan work sequences around environmental conditions, avoiding premature loading of the adhesive anchor
• 9.5 oz cartridge format - delivers a controlled, mess-free application that reduces adhesive waste compared to bulk mixing methods

Why This Product

• The vinylester chemistry bonds reliably into drilled holes in both concrete and masonry, making this system a practical choice for contractors who anchor threaded rod and reinforcing bar across varied base materials on the same job site
• The through-nozzle automatic mixing design means the two components are always properly combined at the point of dispensing - reducing the chance of installation errors and saving time on the job
• Compatibility with hollow base materials and screen tubes broadens the range of substrates this adhesive can address, so a single product covers more of your anchoring needs without switching systems
• The cartridge includes a clear injection procedure - fill approximately 2/3 of the hole from the back, then insert the anchor rod while turning - that promotes positive adhesive distribution and consistent anchor performance

Specifications

• Brand: DeWALT
• Adhesive Type: Two-Component Vinylester
• Volume: 9.5 oz
• Compatible Base Materials: Concrete, Masonry (solid and hollow with screen tubes)
• Compatible Hardware: Threaded Rod, Reinforcing Bar
• Application Method: Injection through mixing nozzle

Available Pack Options

• 8478SD-PWR: 1 Ea
• 8478SDF-PWR -12: 12 Pk

Approved Applications

• Bonding threaded rod into drilled holes in concrete base materials
• Anchoring reinforcing bar elements into concrete and masonry
• Use in solid concrete base materials
• Use in hollow base materials with screen tubes

Frequently Asked Questions

How should the hole be prepared before injecting the adhesive?

The hole must be properly cleaned of all dust and debris before any adhesive is injected. Residual dust or debris can compromise the bond between the adhesive and the base material, reducing anchor performance.

What is the correct method for filling the hole with adhesive?

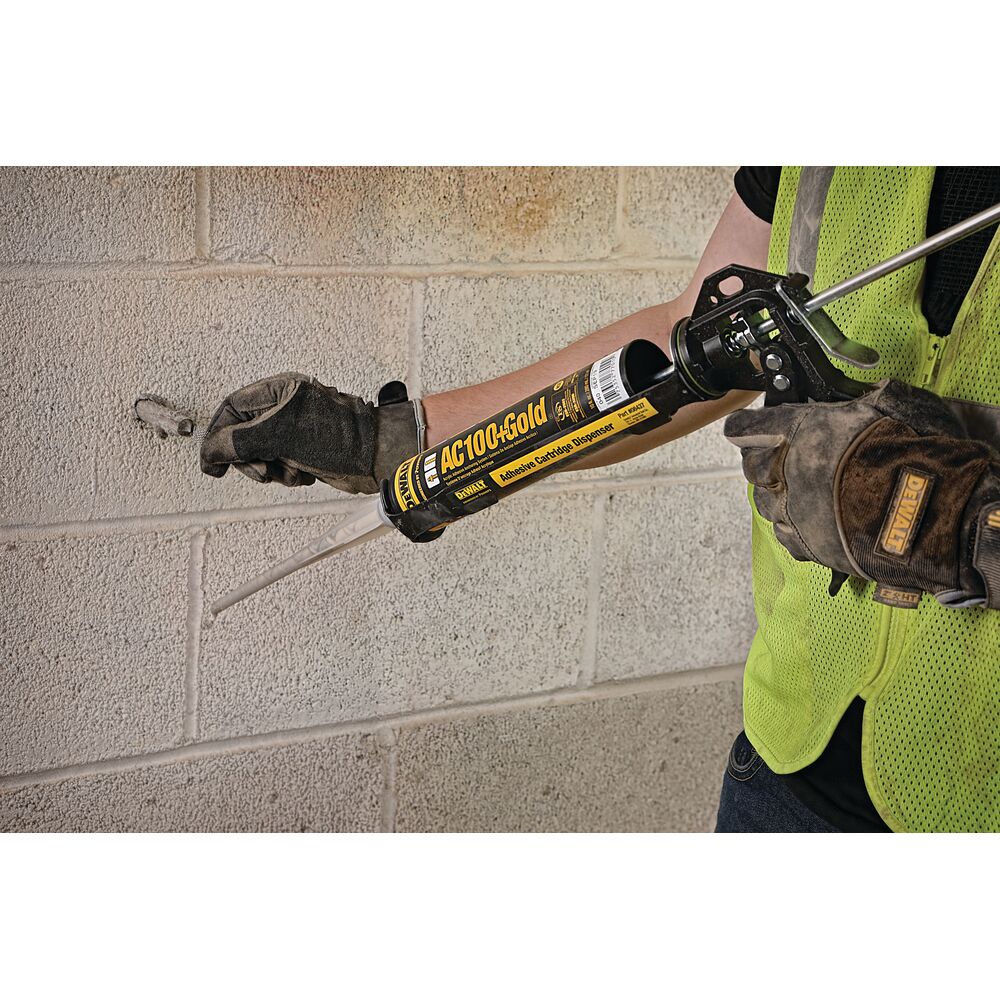

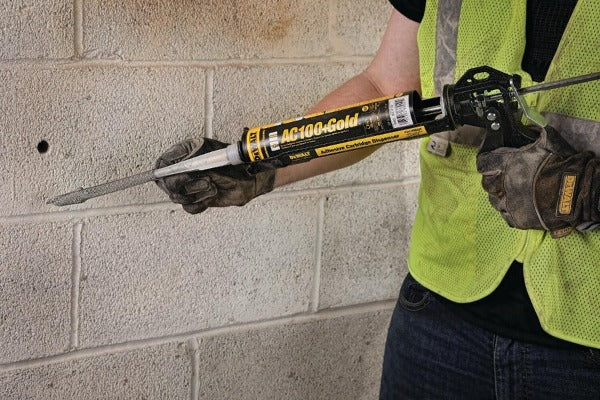

The hole should be filled approximately 2/3 with adhesive, starting from the back of the hole. After filling, insert the anchoring rod or hardware while turning it to ensure positive adhesive distribution throughout the hole.

When can a load be applied after installation?

The adhesive must be allowed to fully cure before any load is applied. Working and curing times vary depending on the temperature of the base material - consult the chart on the cartridge for specific time and temperature guidance.

Are additional mixing nozzles available if I need more than what comes with the system?

Yes. Extra mixing nozzles are available separately - see the Related Products section below for the compatible nozzle option.
