Product Description

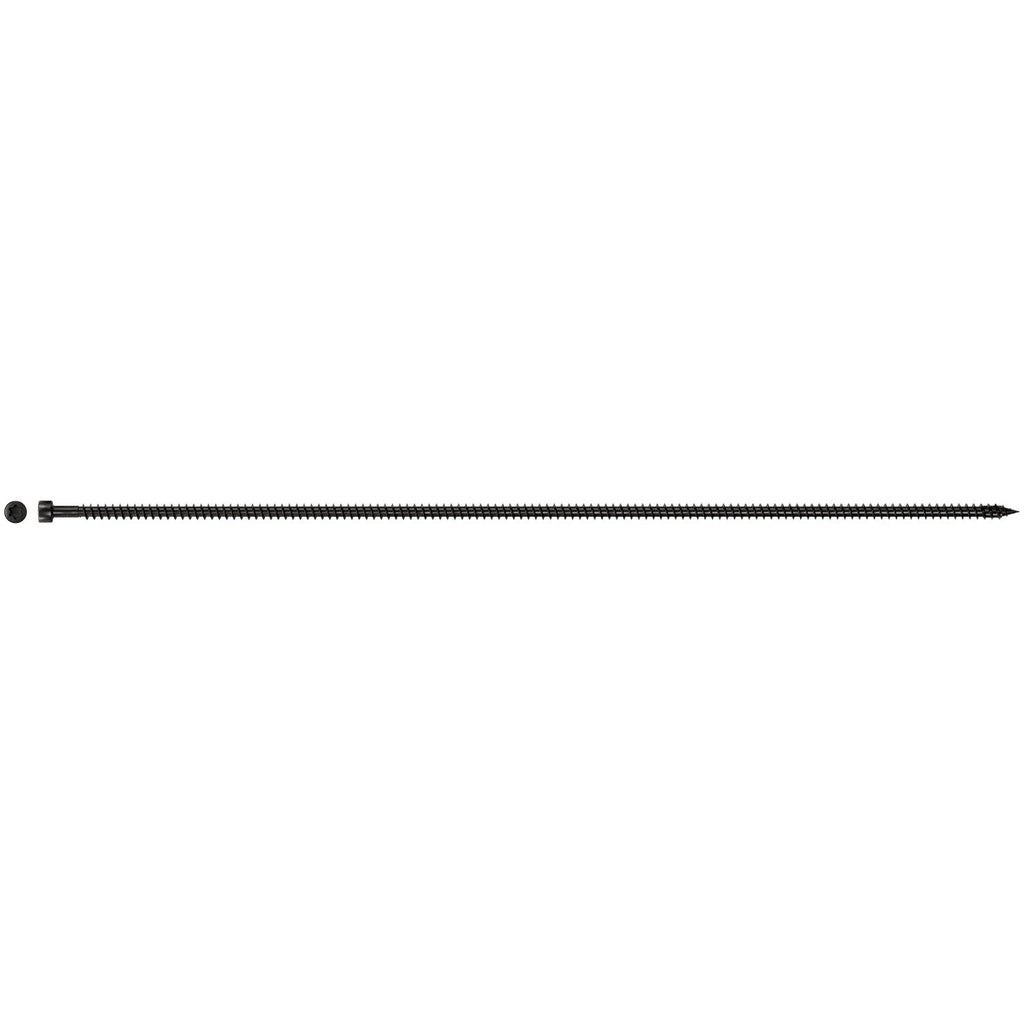

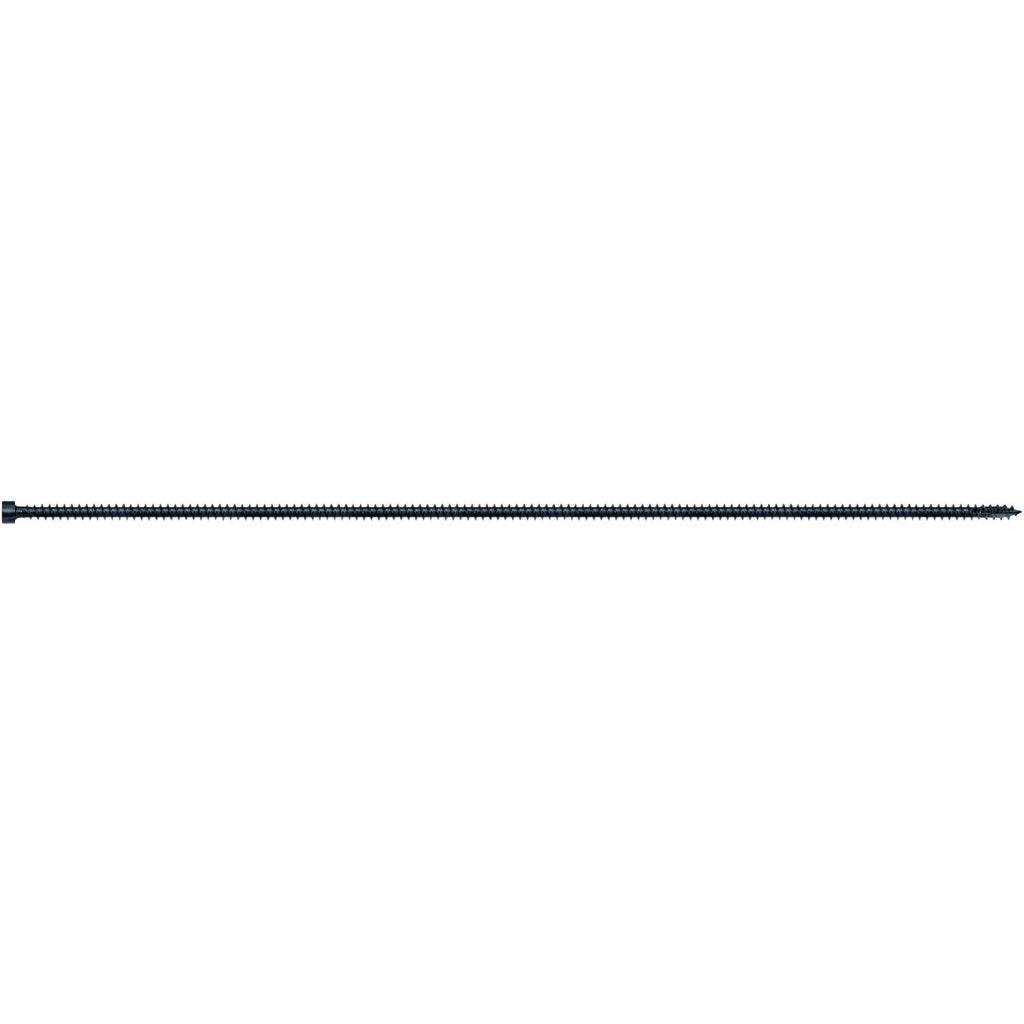

The Simpson Strong-Tie Strong-Drive SDCFC TIMBER-CFC Screw is a heavy-duty structural fastener engineered for demanding large-member wood construction applications. At 0.390 in. diameter and 23 5/8 in. length, this long timber screw delivers exceptional withdrawal resistance in mass timber, glulam, cross-laminated timber, and multi-ply engineered wood assemblies. The fully threaded shank, SawTooth point, and deep T50 6-lobe drive recess combine to make installation fast and reliable - without predrilling in most applications. The black e-coat electrocoating finish offers both a clean aesthetic and durable corrosion resistance suited to interior dry-service conditions. Each box contains 50 screws plus one included driver bit, making this an efficient choice for structural timber framing and beam reinforcement projects.
Key Features
- Compact cylinder head design - countersinks flush for a clean exposed finish or a fully concealed installation, depending on the application
- Heavy-duty, fully threaded shank (0.290 in. shank diameter, 22 5/8 in. thread length) - maximizes withdrawal resistance along the entire fastener length for superior holding power in large timber members
- SawTooth point - enables fast starts and easy driving while reducing installation torque, eliminating the need for predrilling in most applications and saving significant labor time
- Black e-coat electrocoating finish - provides a construction-durable nonmetallic coating for corrosion resistance in interior dry-service applications, while contributing to a professional aesthetic when left exposed
- Deep T50 6-lobe drive recess - delivers a secure, high-torque drive engagement that reduces cam-out and improves driver control during installation
- Compliant with CSA O86:24 hydrogen embrittlement requirements - the optimized hardness profile helps mitigate the risk of brittle fracture for reliable, long-term structural performance
- 50 screws per box - packaged for job-site efficiency on high-volume timber framing and beam fastening tasks
Why This Product
- Designed specifically for large structural members - including mass timber, cross-laminated timber, glulam beams, and multi-ply engineered wood - this 23 5/8 in. screw reaches connection depths that standard fasteners cannot achieve, making it the right tool for heavy timber framing and beam reinforcement work.
- The SawTooth point eliminates predrilling in most applications, reducing setup time and labor cost without sacrificing connection integrity - a practical advantage on fast-moving commercial and residential timber projects.
- The black e-coat finish does double duty: it protects against corrosion in interior dry-service environments and delivers a polished, professional appearance when screws are left exposed - meeting both structural and aesthetic requirements in a single fastener.
- CSA O86:24 hydrogen embrittlement compliance and an optimized hardness profile mean this screw is engineered to resist brittle fracture over time, supporting the long-term reliability demands of structural connections in engineered wood and heavy timber assemblies.
Specifications
- Brand: Simpson Strong-Tie
- Model Number: SDCFC10X600
- Product Name: Strong-Drive SDCFC TIMBER-CFC Screw
- Length: 23 5/8 in.
- Shank Diameter: 0.290 in.
- Head Diameter: 0.528 in.
- Thread Length: 22 5/8 in.
- Head Type: Cylinder Head
- Drive Type: T50 6-Lobe
- Point Type: SawTooth Point
- Coating: E-coat Electrocoating
- Finish: E-coat Electrocoating
- Color: Black
Approved Applications
- Engineered Wood
- Fastening Wood-to-Wood
- Timber Framing
- Beam Reinforcement
- Fastening Wall-to-Wall
- Fastening Support Beams
- Heavy Timber
- Glulam
- Fastening Butt Joists
- Mass Timber / Cross-Laminated Timber
- Engineered Wood - Multi-Ply Fastening
- Fastening Simpson Strong-Tie Connectors
What's Included
- 50x SDCFC10X600 Timber-CFC Screws (0.390 in. x 23 5/8 in., T50, Black E-Coat)
- T50 6-lobe driver bit (replacement bit: BIT50T-2-R1)
