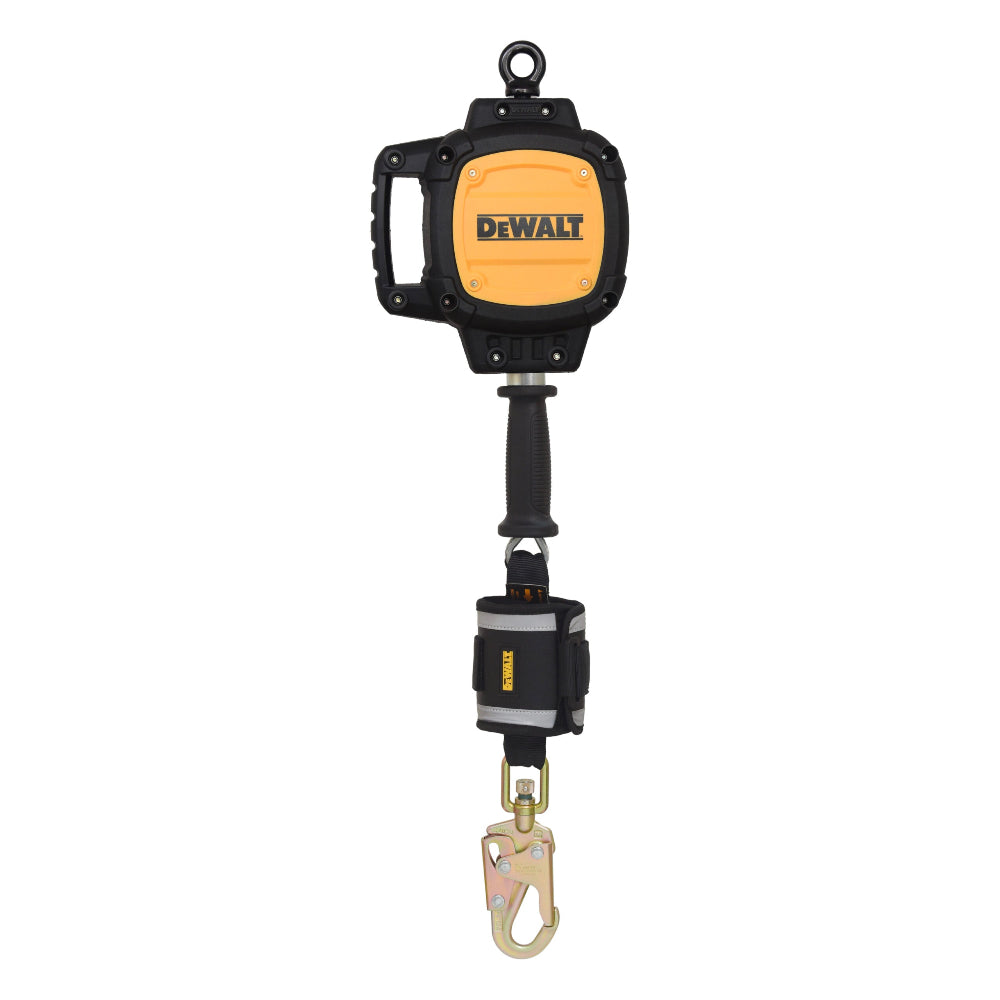

The DEWALT D200 25-Foot Self Retracting Lifeline - Leading Edge is an anchor-mounted fall protection SRL built for job sites where overhead anchorage is unavailable and the lifeline may contact sharp structural edges - making it a go-to choice for steel, concrete, and leading edge construction work. Featuring a 7/32" (5.56 mm) galvanized cable lifeline, an energy absorber at the harness end, and anchorage flexibility from foot-level up to above the dorsal D-ring, this DEWALT fall arrest device is engineered to meet ANSI Z359.14-2021 Class 2 and OSHA compliance standards across a wide range of applications. Backed by a 2-year warranty and rated to ANSI 310 lbs. (141 kg) and OSHA 420 lbs. (191 kg), it delivers the dependable, rugged protection workers and safety managers need when standard SRLs fall short.

Key Features

• ANSI Z359.14-2021 Class 2 Rated Strength - rated to ANSI 310 lbs. (141 kg) and OSHA 420 lbs. (191 kg) when anchored at or above the dorsal D-ring, this SRL meets current compliance requirements for both general industry and construction, giving safety managers a straightforward path to ANSI and OSHA conformance.
• 7/32" (5.56 mm) Galvanized Steel Cable Lifeline - the galvanized cable is specifically engineered to resist abrasion and cutting from sharp structural edges, making it a dependable choice in leading edge environments where a standard lifeline would be at risk of damage.
• High Impact Strength Polymer Housing with Recessed Labels - the rugged polymer shell protects the internal mechanism from impact and harsh job site conditions, while recessed labeling keeps critical safety information legible over the long term - reducing the risk of compliance issues from worn or unreadable markings.
• Foot-Level to Above D-Ring Anchorage Flexibility - secure anchorage from above the dorsal D-ring all the way down to foot level means this leading edge SRL adapts to a wider range of worksite configurations, reducing the need for multiple specialized fall protection devices on the same job.
• Compact and Lightweight at 12.95 lbs. (5.87 kg) - at 12.95 lbs. (5.87 kg), this SRL is designed to minimize fatigue and maximize freedom of motion throughout a full shift, so workers stay focused on the task rather than managing a heavy device.
• 3,600 lb. (16kN) Gate Rated Steel Connectors at Both Ends - both the anchor-end carabiner and the harness-end snap hook are rated to 3,600 lb. (16kN) gate strength and constructed from galvanized alloy steel with golden yellow/silver passivation, delivering corrosion-resistant, high-strength connection points at every link in the fall protection system.
• Tagline Included - the included tagline allows workers to retrieve and manage the lifeline immediately on arrival, adding practical usability right out of the box without requiring additional accessories.
• 2-Year Warranty - backed by a 2-year DEWALT warranty, this SRL offers purchasing confidence and long-term accountability, supporting the total value of the fall protection investment over time.

Why This Product

• Built for leading edge hazards where standard SRLs are not rated - when anchorage above the dorsal D-ring is unavailable and the lifeline may contact sharp edges or structural corners, most standard self retracting lifelines are not appropriate for the application. This DEWALT D200 is specifically rated and designed for exactly those conditions, with a galvanized cable lifeline and energy absorber at the harness end to manage the increased fall forces common in leading edge scenarios.
• Dual compliance with ANSI and OSHA standards - meeting both ANSI Z359.14-2021 Class 2 and OSHA 1926.502 and 1910.66, this SRL covers compliance requirements across construction and general industry applications, making it a practical choice for contractors and safety teams working across multiple regulatory environments.
• Anchorage versatility reduces the number of devices needed on site - the ability to anchor from foot level up to above the dorsal D-ring means one device can cover a broader range of worksite configurations, which can simplify equipment management and reduce the cost of maintaining multiple specialized fall protection units.
• Rugged construction designed for extended field use - the high impact strength polymer housing with recessed labels and 7/32" (5.56 mm) galvanized steel cable are chosen specifically for longevity in tough conditions, supported by a 2-year DEWALT warranty that backs the product's durability claims with real accountability.

Specifications

• Brand: DEWALT
• MPN: DXFP210221-025
• Working Length: 25' (7.62 m)
• Max Capacity (ANSI): 310 lbs. (141 kg)
• Max Capacity (OSHA): 420 lbs. (191 kg) when anchored at or above dorsal D-ring
• Lifeline Material: 7/32" (5.56 mm) Galvanized Steel Cable
• Housing: High Impact Strength Polymer
• Tagline: Included
• Anchor End Connector: 3,600 lb. (16kN) gate Steel (galvanized alloy steel with golden yellow/silver passivation) Carabiner
• Harness Connector: 3,600 lb. (16kN) gate Steel (galvanized alloy steel with golden yellow/silver passivation) Snap Hook
• Standards: ANSI Z359.14-2021 Class 2, OSHA 1926.502 and 1910.66
• Color: Black/Gold
• Warranty: 2 years
• Unit of Measure: 1

Frequently Asked Questions

What makes this SRL suitable for leading edge applications?

This DEWALT D200 is specifically designed as a leading edge self retracting lifeline, meaning it is rated and built for use where the lifeline may come into contact with sharp structural edges. The 7/32" (5.56 mm) galvanized steel cable provides the edge resistance required in these conditions, and the unit meets ANSI Z359.14-2021 Class 2 requirements for leading edge use - a classification that standard SRLs do not satisfy.

Can this self retracting lifeline be anchored below the dorsal D-ring?

Yes. The DEWALT D200 SRL is designed to allow secure anchorage from above the dorsal D-ring all the way down to foot level. This flexibility makes it appropriate for a wider range of working conditions where overhead anchorage is not available. Note that the OSHA-rated max capacity of 420 lbs. (191 kg) applies when anchored at or above the dorsal D-ring; the ANSI-rated capacity is 310 lbs. (141 kg).

What connectors are included and what are their strength ratings?

The anchor end uses a galvanized alloy steel carabiner with golden yellow/silver passivation rated to 3,600 lb. (16kN) gate strength. The harness end uses a galvanized alloy steel snap hook with the same golden yellow/silver passivation, also rated to 3,600 lb. (16kN) gate strength. Both connectors are designed to provide corrosion resistance alongside high-strength performance.

What compliance standards does this fall arrest device meet?

The DEWALT DXFP210221-025 meets ANSI Z359.14-2021 Class 2 as well as OSHA 1926.502 and OSHA 1910.66, covering both construction and general industry fall protection requirements. Always verify that the selected fall protection system meets all applicable site-specific and regulatory requirements before use.
