Product Description

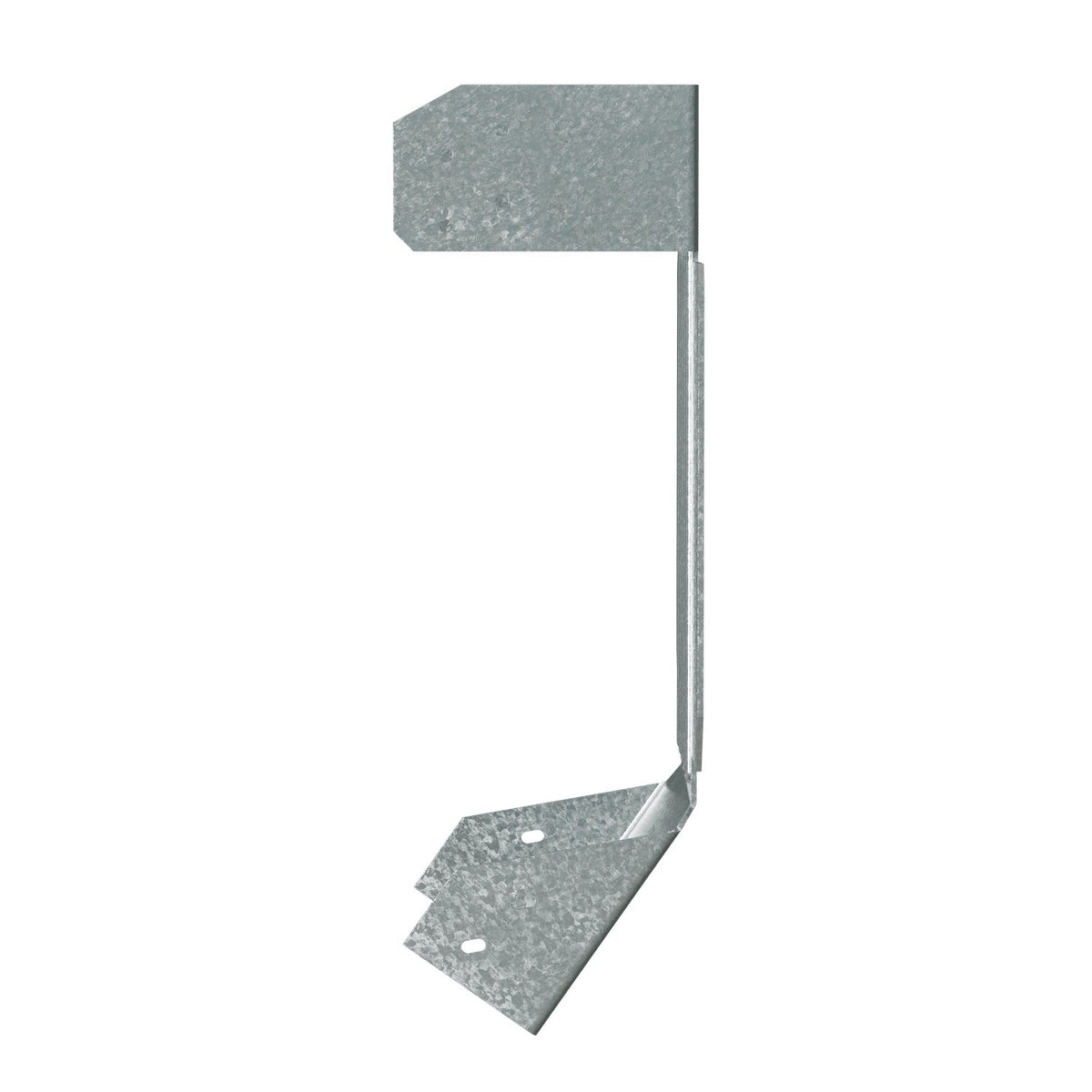

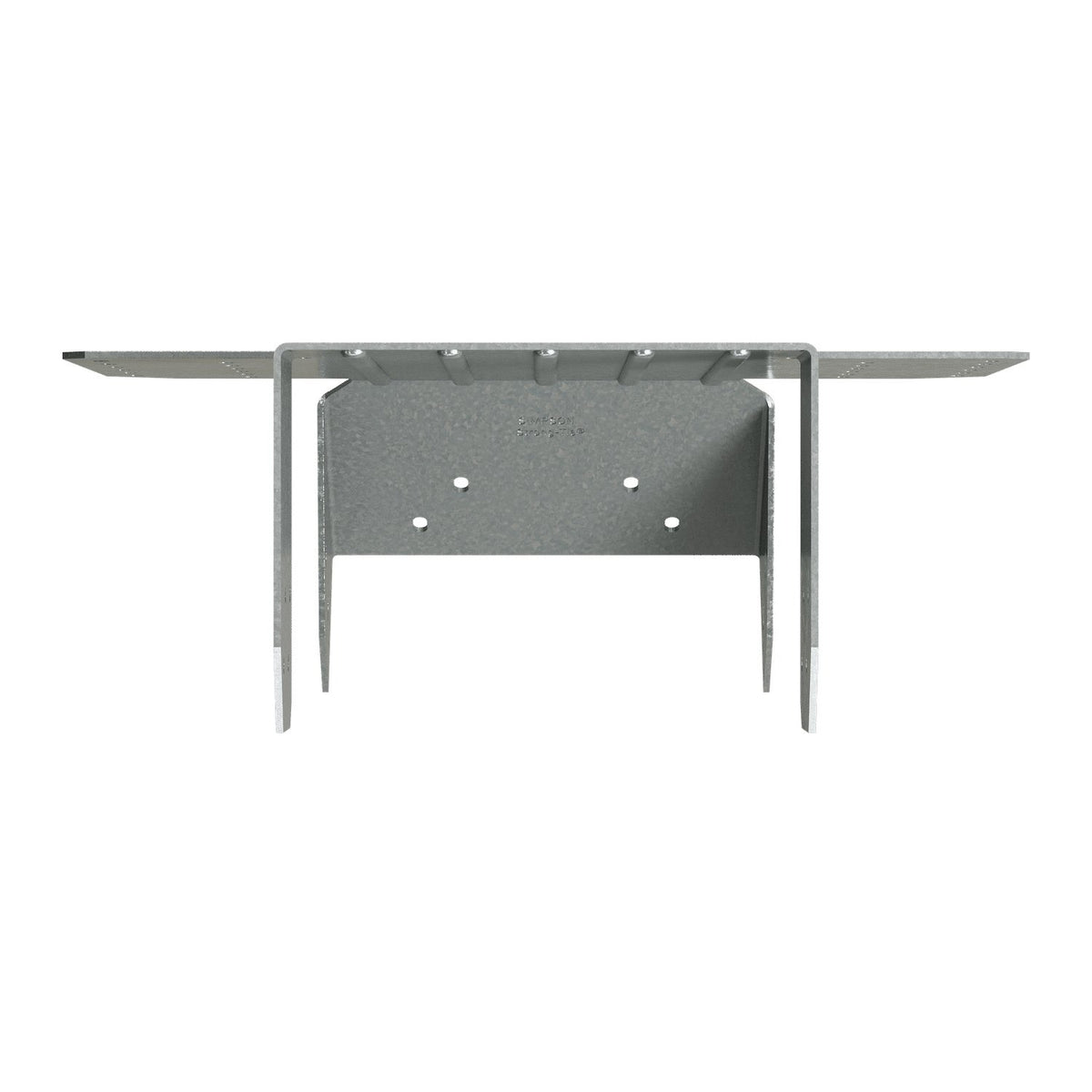

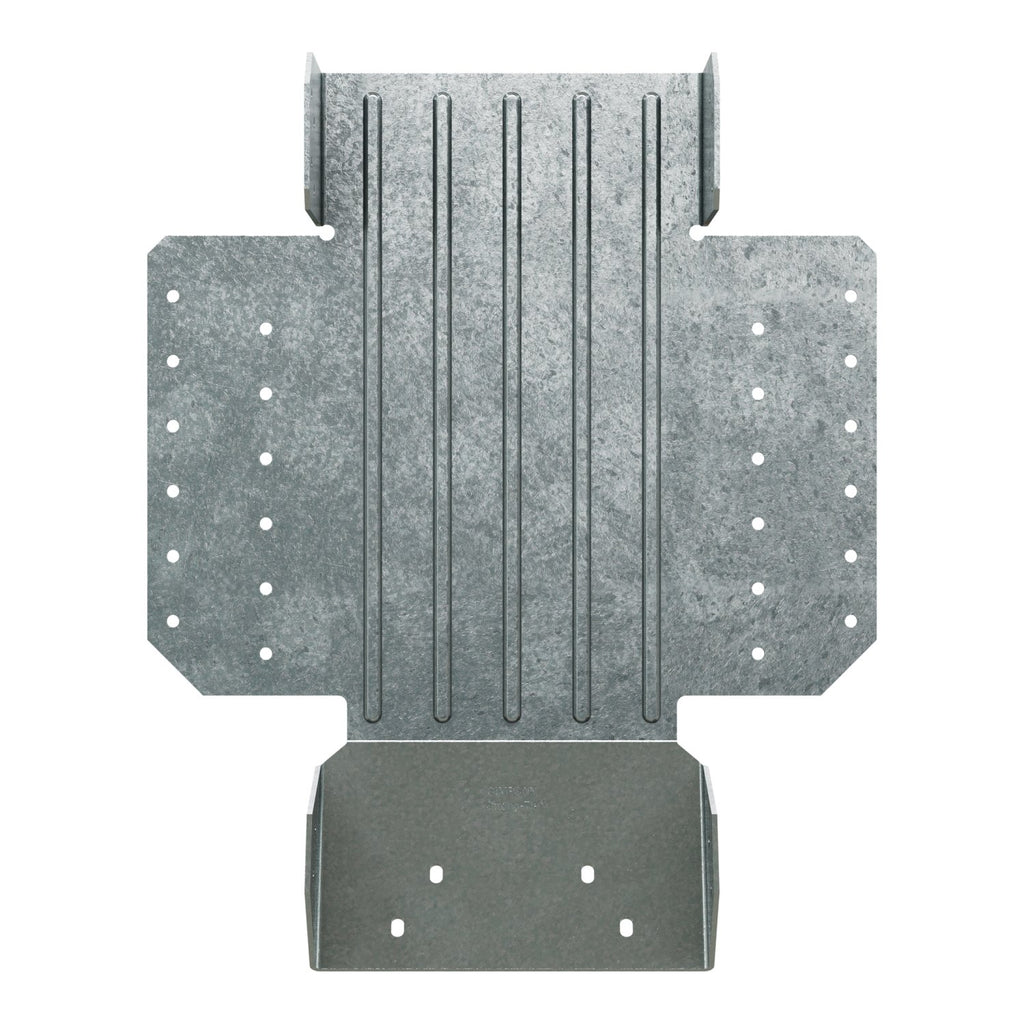

The Simpson Strong-Tie LSU5.12 LSU Galvanized Adjustable Light Slopeable/Skewable U Hanger for 5x is a field-adjustable rafter and joist hanger engineered by Simpson Strong-Tie to deliver a strong, reliable connection for sloped and skewed framing applications. Designed for 5-inch wide joists, this hanger can be sloped up or down and skewed left or right up to 45 deg., making it a versatile solution for attaching joists and rafters to headers in complex framing conditions. It is preferable to similar connectors because of easier installation, higher loads, and lower installed cost.
Key Features
- This product is preferable to similar connectors because of easier installation, higher loads, and lower installed cost
- Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the supporting members
- Adjustments can be made in the field
- Web stiffeners required for I-joist applications
- Joist width: 5 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: LSU5.12
- Brand: Simpson Strong-Tie
- Series: LSU
- Joist Width: 5 in.
- Gauge: 14
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common and 10d x 1-1/2 in. nails (sold separately)
- Width: 5-1/8 in.
- A: 2-1/4 in.
- Height: 9 in.
- Country of Origin: United States
Frequently Asked Questions
- How much can the LSU5.12 be sloped or skewed in the field?
- The LSU5.12 may be sloped up or down and skewed left or right up to 45 deg., and all adjustments can be made in the field without special equipment or prefabrication.
- What joist width is the LSU5.12 designed for?
- The LSU5.12 is specifically designed for use with 5-inch wide joists or rafters.
- Are web stiffeners required when using the LSU5.12 with I-joists?
- Yes, web stiffeners are required for I-joist applications when using the LSU5.12 hanger.
- What fasteners should be used to install the LSU5.12?
- The LSU5.12 should be installed with 16d common and 10d x 1-1/2 in. nails.
Note: Product dimensions and/or nail or screw holes may differ from picture. Please see item description for specifications.
