Product Features
Product Description

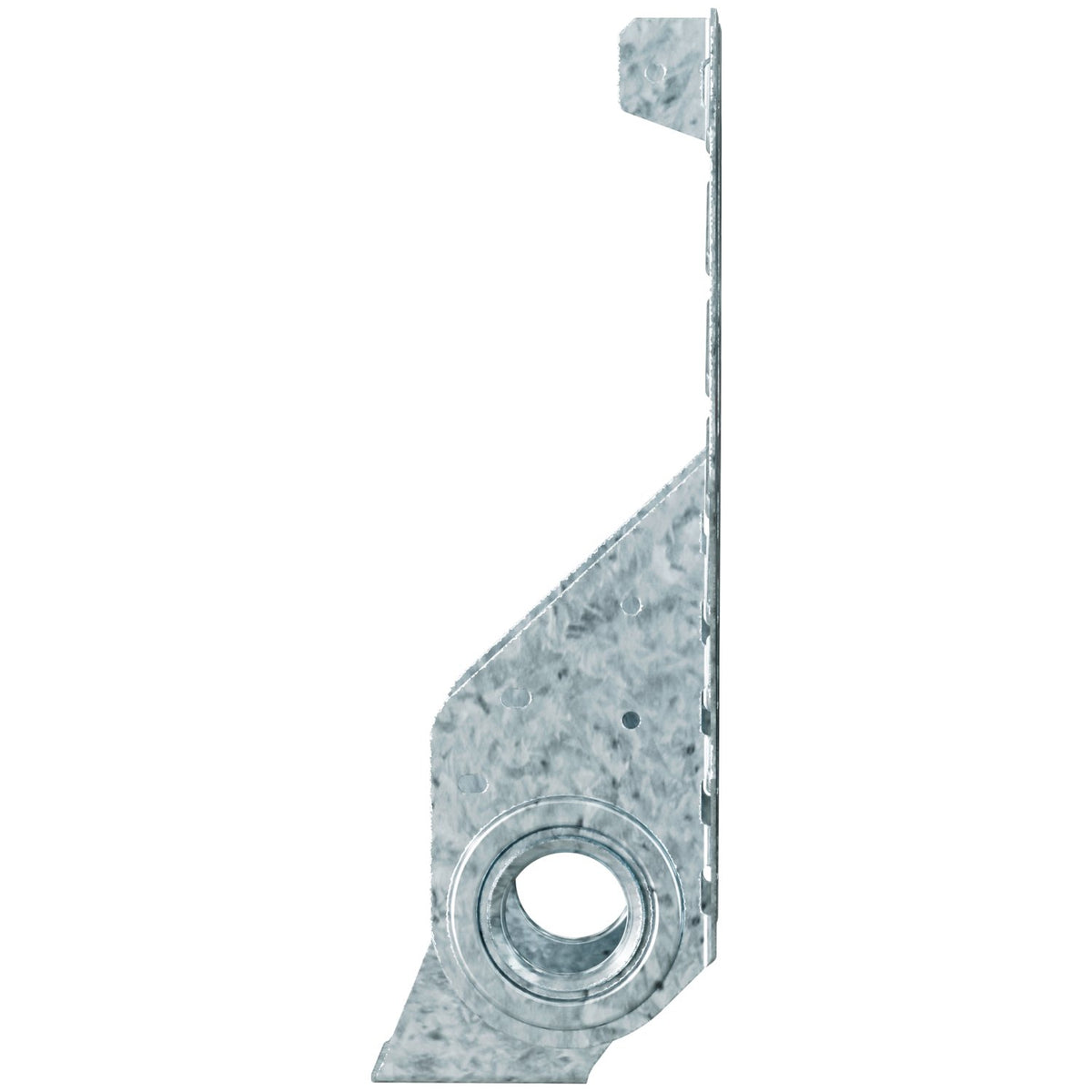

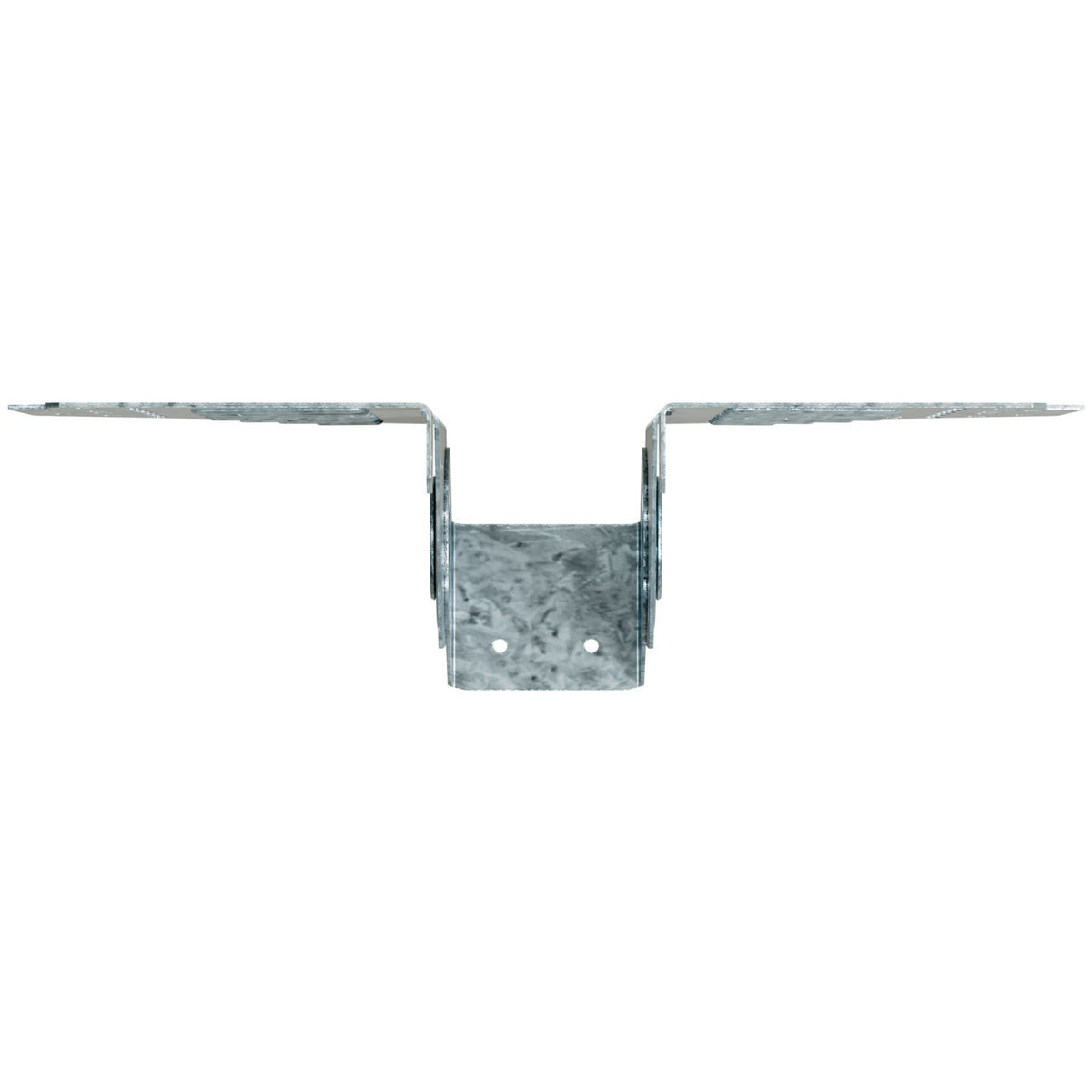

The Simpson LSSR2.1Z LSSR Light Field-Adjustable Rafter Hanger by Simpson Strong-Tie is a patent-pending, next-generation field-adjustable rafter hanger engineered for 2-inch engineered wood applications. Featuring a ZMAX galvanized finish for superior corrosion resistance, this versatile hanger is skewable up to 45 deg. and slopeable up to 45 deg. via an innovative hinged swivel seat - and it can be installed after all rafters have already been tacked into place.
Key Features

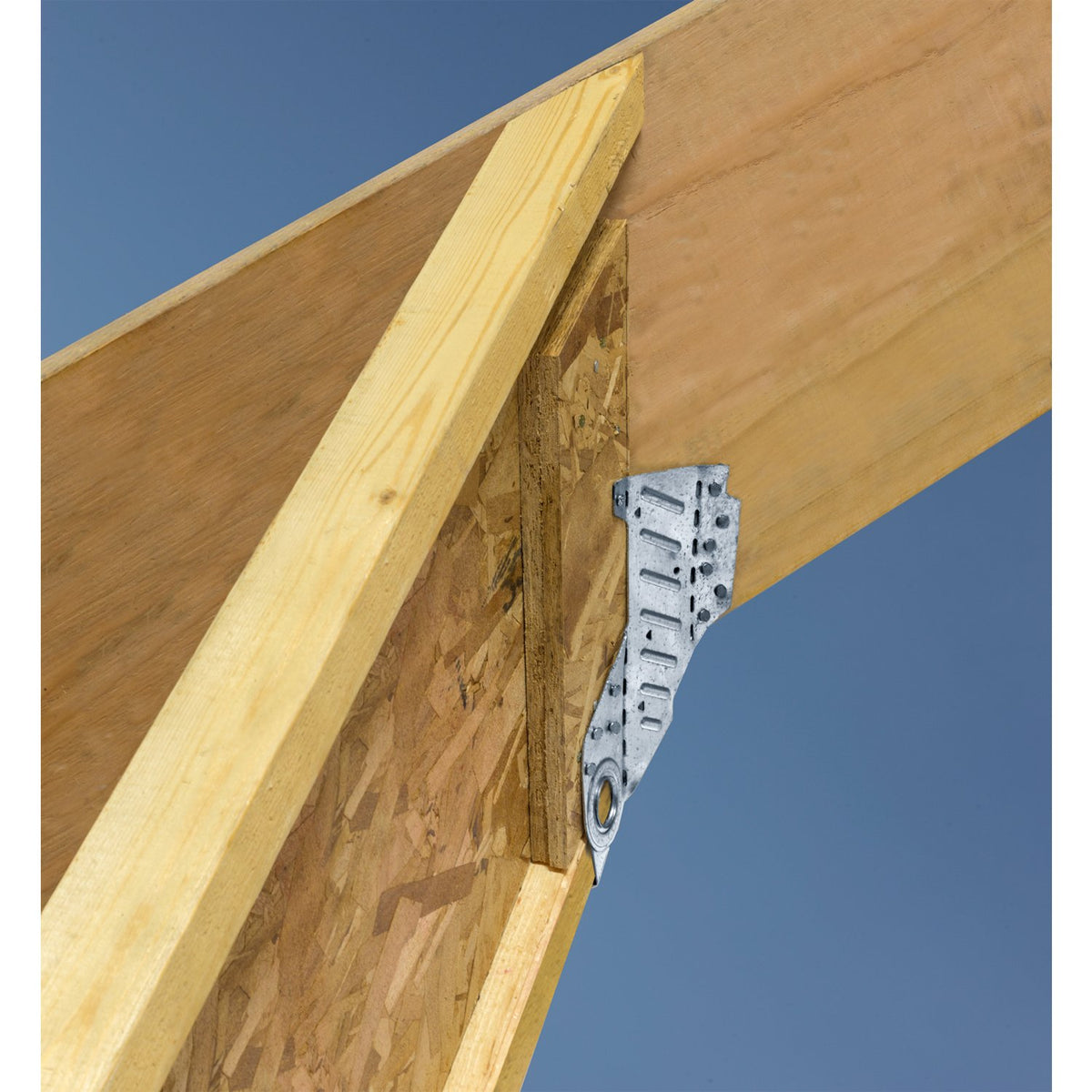

- Makes it possible to install after the rafters are already in place
- Flange design allows for easy skew adjustment, from 0 deg. to 45 deg.
- Swivel seat adjusts easily and supports joist
- Actual joist width: 2 in.
- Minimum joist height: 9-1/2 in.
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- MPN: LSSR2.1Z
- Member Size: 2 to 2-1/16 in.
- Gauge: 18
- Coating/Finish: ZMAX
- Installation Fasteners: Install with 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
- Width: 2-1/8 in.
- Flange Width: 4-1/8 in.
- Height: 8-15/16 in.
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- Can the LSSR2.1Z be installed after rafters have already been set in place?
- Yes. One of the key features of the LSSR2.1Z is that it makes it possible to install after the rafters are already in place, simplifying the installation process on the job site.
- How much skew and slope adjustment does the LSSR2.1Z support?
- The LSSR2.1Z is field adjustable for skew up to 45 deg. via its flange design, and it features an innovative hinged swivel seat that adjusts for slope up to 45 deg..
- What type of corrosion protection does the ZMAX coating provide?
- ZMAX galvanization offers extra corrosion resistance, making this hanger suitable for exterior and treated-wood applications where standard coatings may not be sufficient.
- What fasteners are recommended for installing the LSSR2.1Z?
- Install with 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist for a proper, code-compliant connection.
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
