Product Features
Product Description

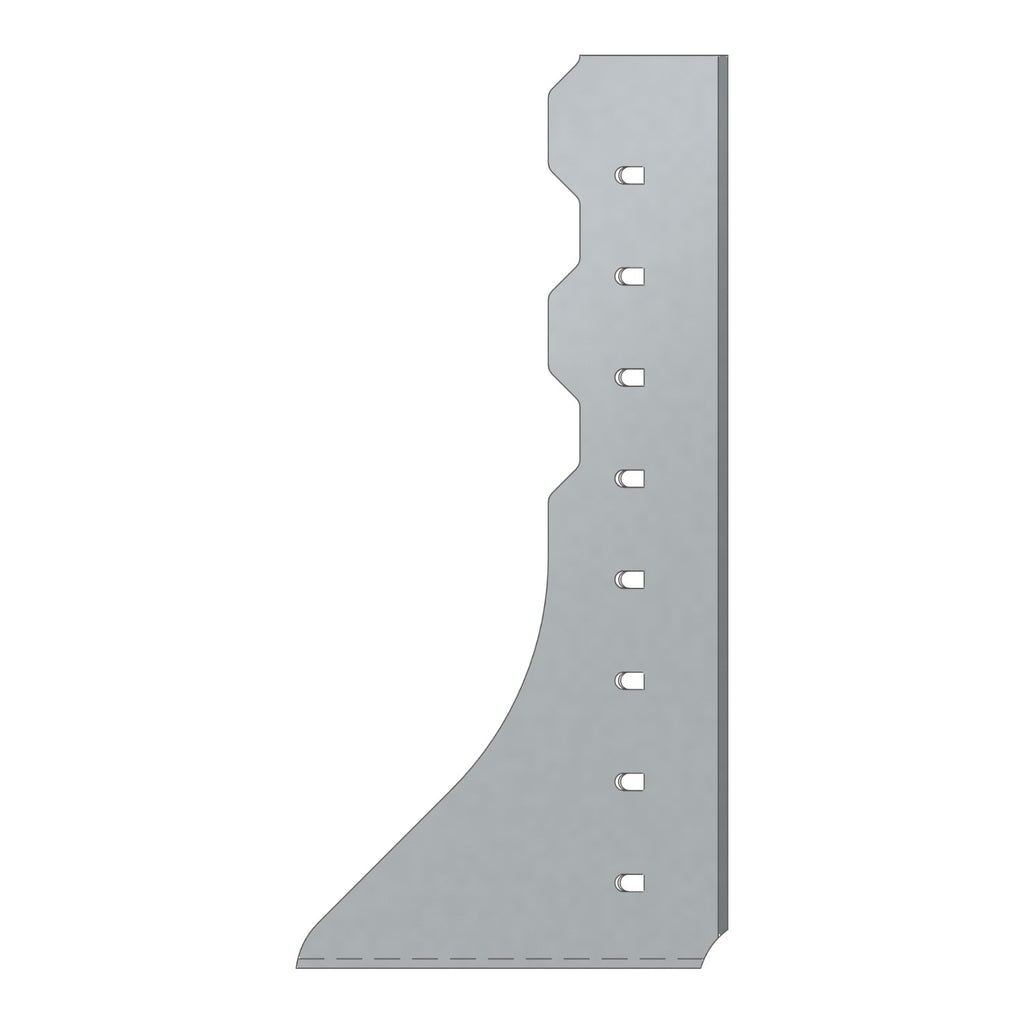

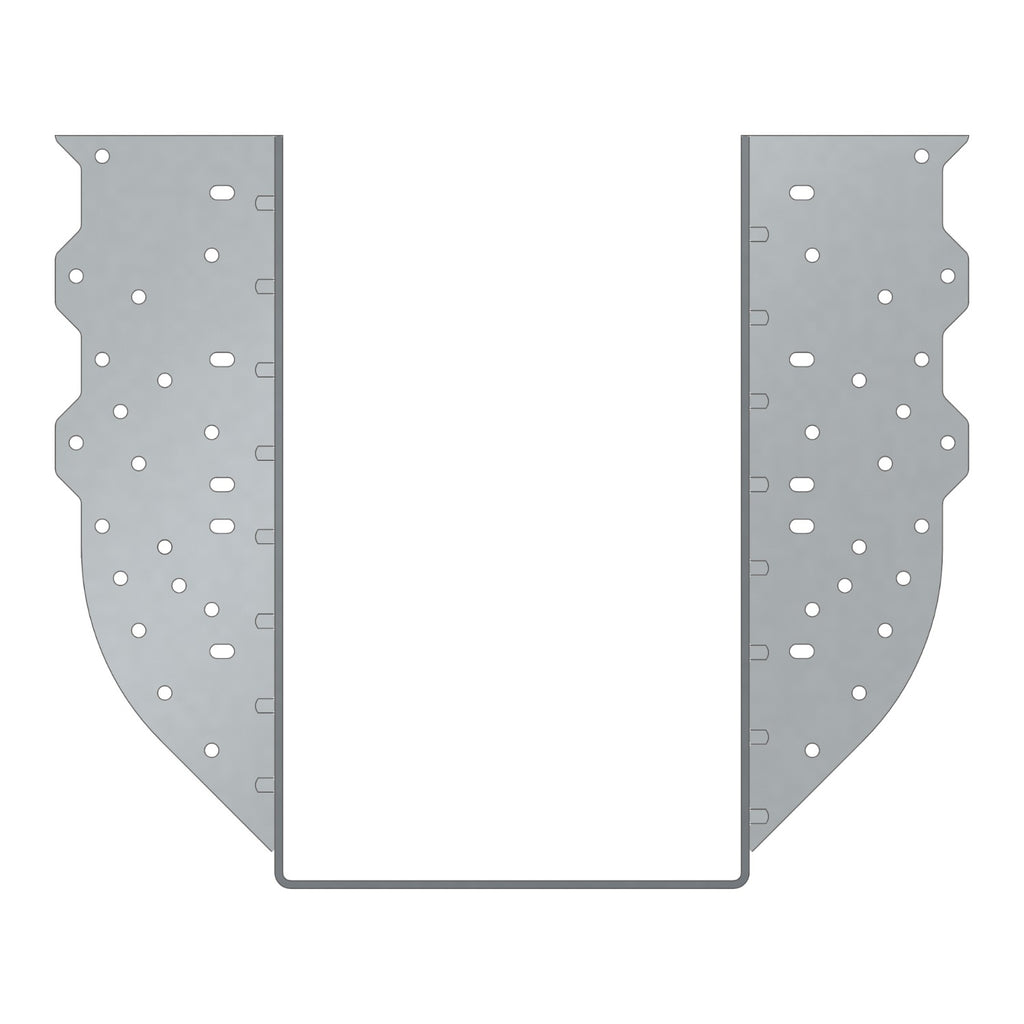

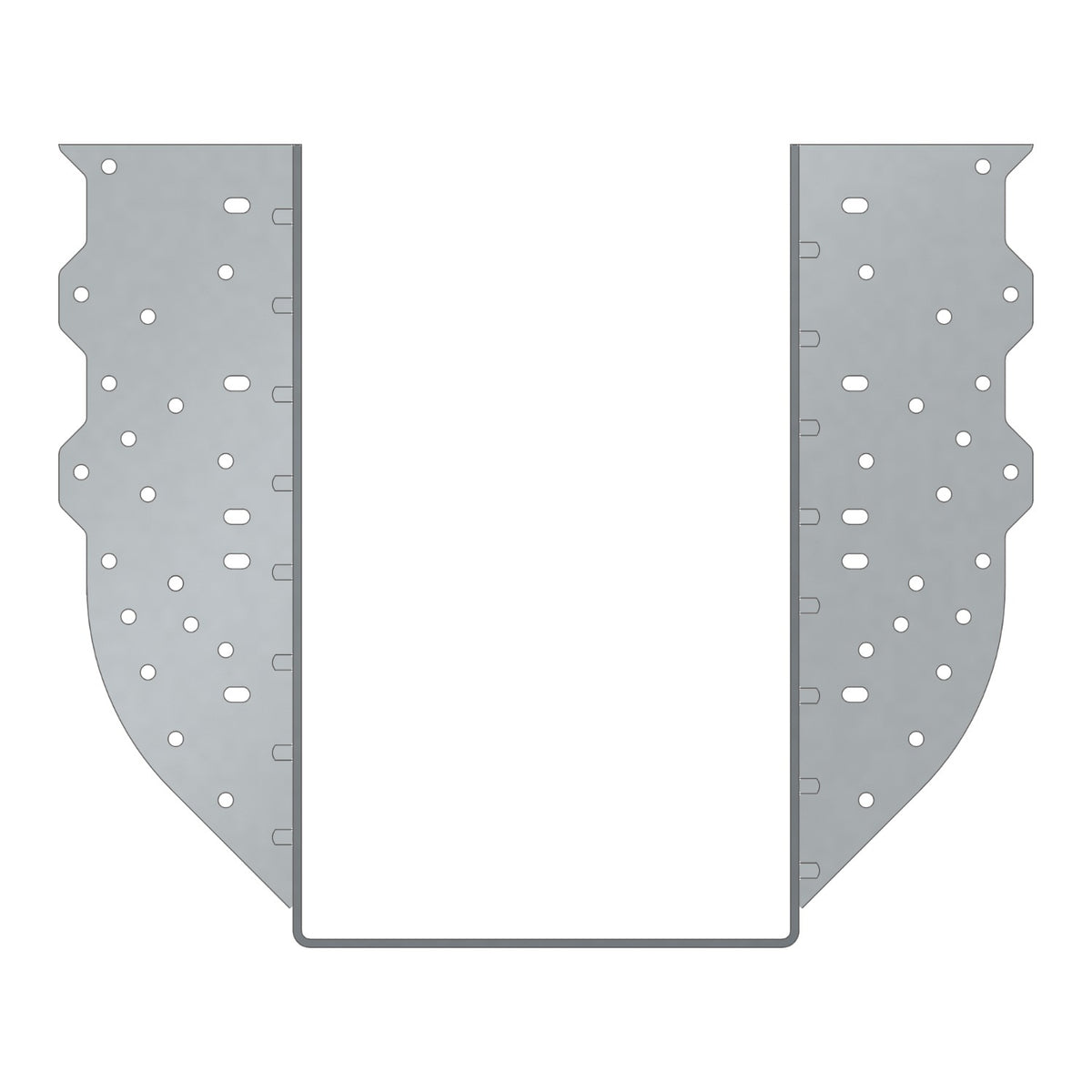

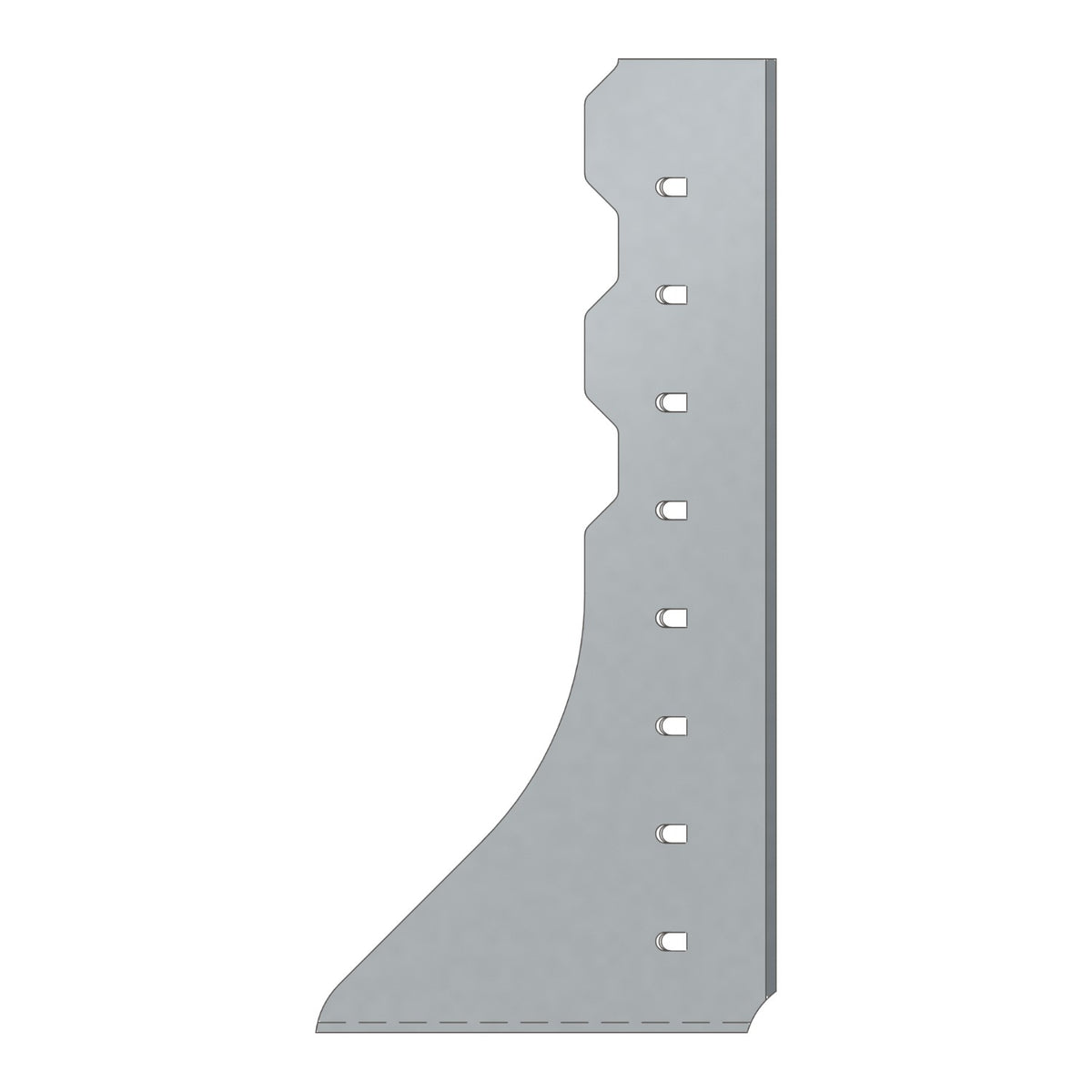

Simpson HGUS5.50/10 HGUS Galvanized Face-Mount Joist Hanger for 5-1/4 in. x 9-1/2 in. Engineered Wood is an extra-heavy-capacity face-mount hanger from Simpson Strong-Tie engineered for applications requiring girder support. Featuring double-shear nailing that distributes the load through two points on each joist nail for greater strength, this value-engineered hanger is designed to carry high loads at an economical price.
Key Features
- Can be installed after the beam is secured in place
- HGUS-series hangers are tested, load rated and code compliant
- Do not bend or remove tabs
- Joist size: 5-1/4 in. x 9-1/4 in. to 9-1/2 in., nominal 6x10, 5-1/4 in. SCL, 5-1/2 in. glulam
- Seat width: 5-1/2 in.
- Height: 8-15/16 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: HGUS5.50/10
- Gauge: 12
- Seat Width: 5-1/2 in.
- Height: 8-15/16 in.
- Member Size: 5-1/4 in. x 9-1/4 in. to 9-1/2 in., 6x10, 5-1/4 in. SCL, 5-1/2 in. glulam
- Coating/Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What engineered wood sizes is the HGUS5.50/10 compatible with?
- The HGUS5.50/10 is designed for joist sizes of 5-1/4 in. x 9-1/4 in. to 9-1/2 in., which includes nominal 6x10 lumber, 5-1/4 in. SCL (structural composite lumber), and 5-1/2 in. glulam beams.
- What type of nails should be used to install this hanger?
- This hanger should be installed with 16d common nails for proper load performance and code compliance.
- Can this hanger be installed after the beam is already in place?
- Yes. The HGUS5.50/10 is designed so that it can be installed after the beam is secured in place, offering installation flexibility on the job site.
- What corrosion protection does the HGUS5.50/10 have?
- The hanger is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance suitable for demanding construction environments.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
