Product Features
Product Description

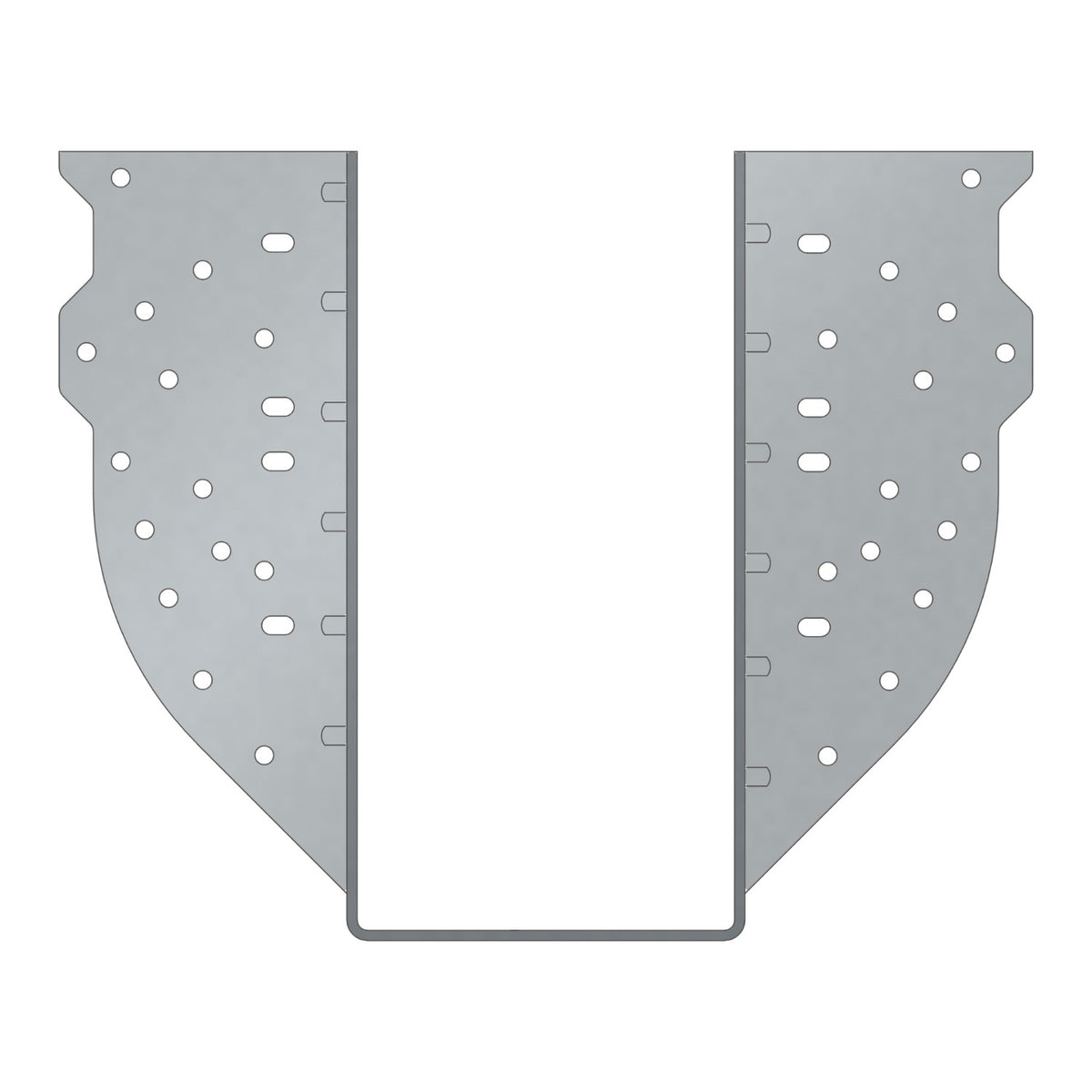

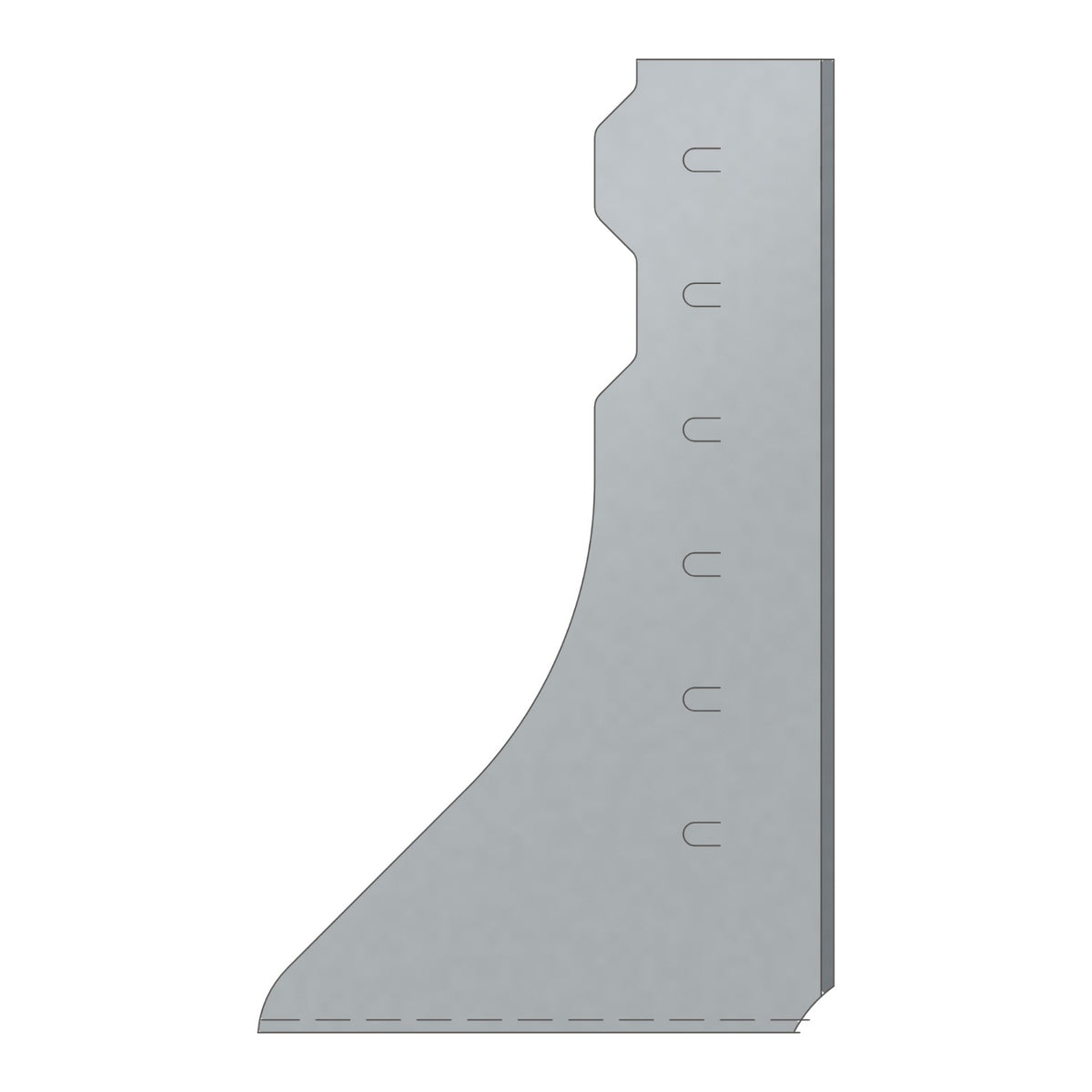

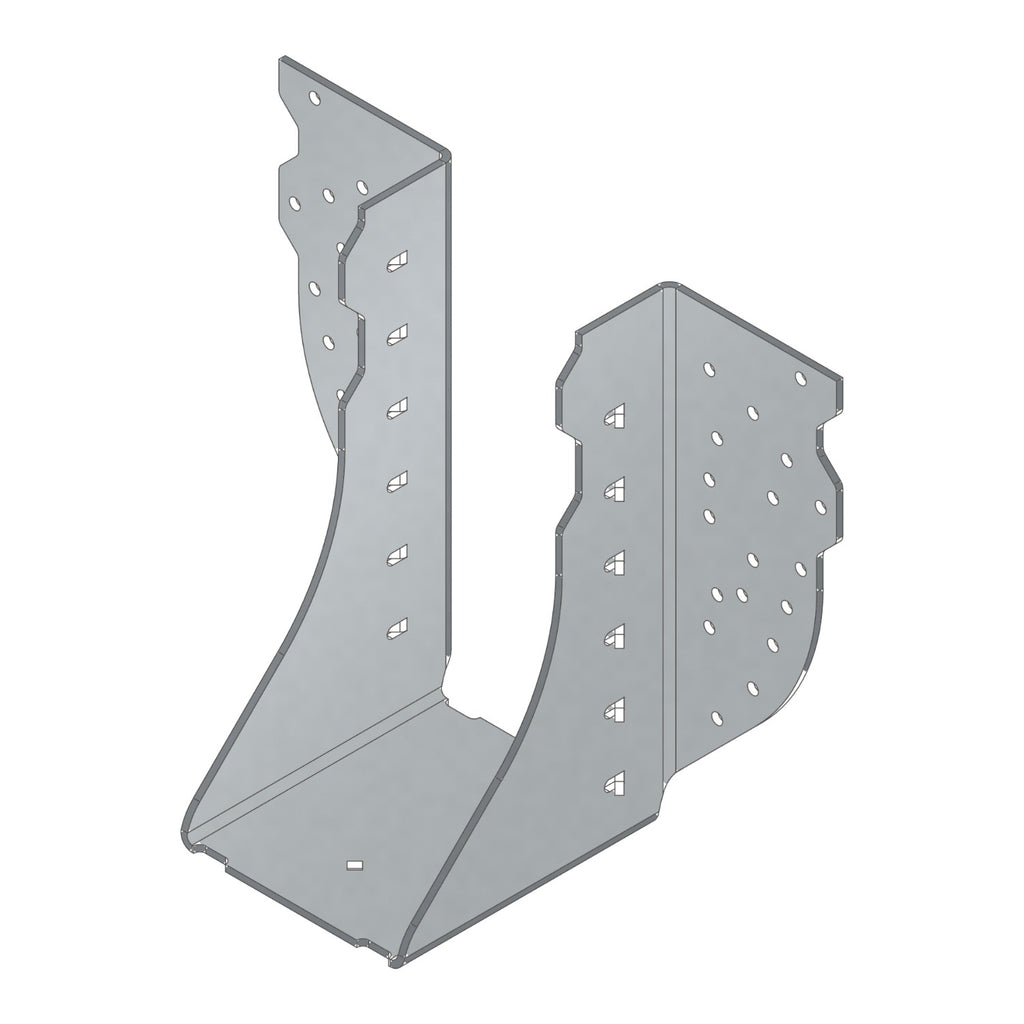

The Simpson HGUS28-2 HGUS 7-3/16 in. Galvanized Face-Mount Joist Hanger for Double 2x Truss by Simpson Strong-Tie is an extra-heavy-capacity face-mount hanger engineered for applications where higher load values are needed. Designed to provide support underneath the joist, rafter, or beam, this hanger delivers a strong, reliable connection for double 2x8 members using double-shear nailing technology for superior load distribution.
Key Features
- Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
- Do not bend or remove tabs
- Nominal joist size: Double 2x8
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: HGUS28-2
- Member Size: Double 2x8
- Gauge: 12
- Height (H): 7-3/16 in.
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size member is the HGUS28-2 designed to support?
- The HGUS28-2 is designed for a nominal joist size of Double 2x8, making it suitable for applications requiring girder-level support with double-member construction.
- What type of nails should be used to install the HGUS28-2?
- The HGUS28-2 should be installed with 16d common nails. The double-shear nailing design allows for the use of fewer nails while still achieving greater strength.
- What is the benefit of double-shear nailing on this hanger?
- Double-shear nailing distributes the load through two points on each joist nail, providing greater strength compared to single-shear designs. This also allows for faster installation using standard nails for all connections.
- How is the HGUS28-2 protected against corrosion?
- The HGUS28-2 is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance and helps extend the service life of the hanger in demanding environments.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
