Product Features
Product Description

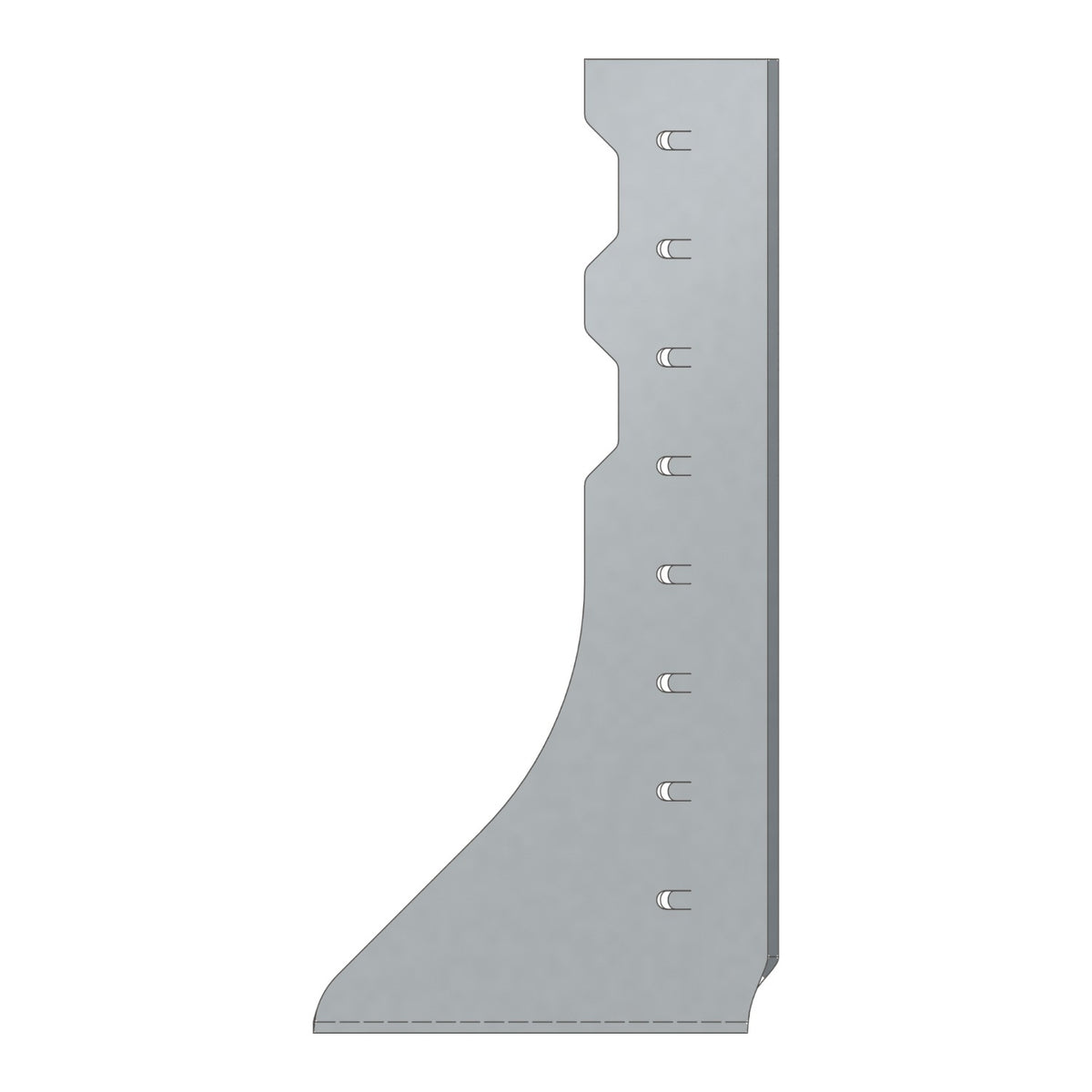

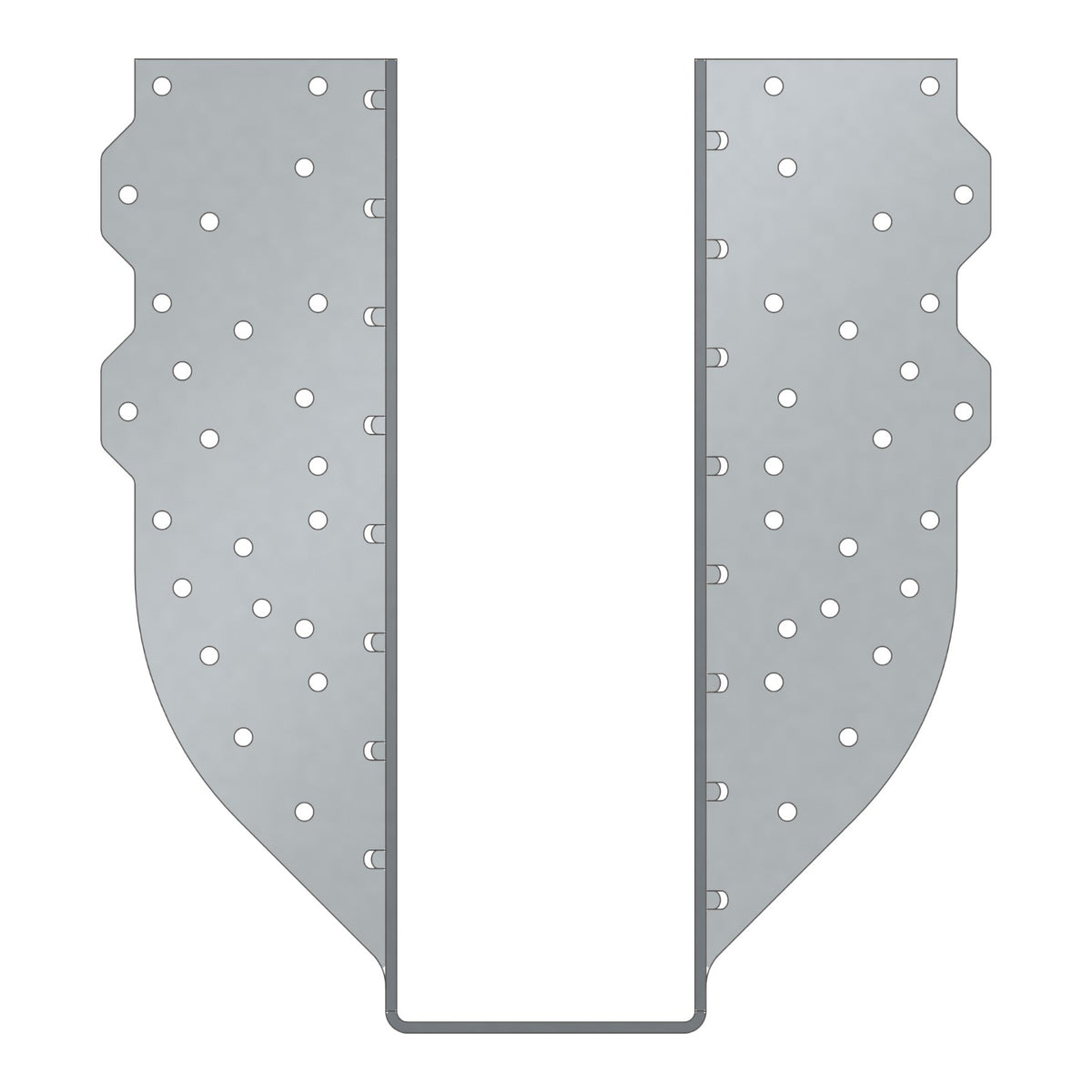

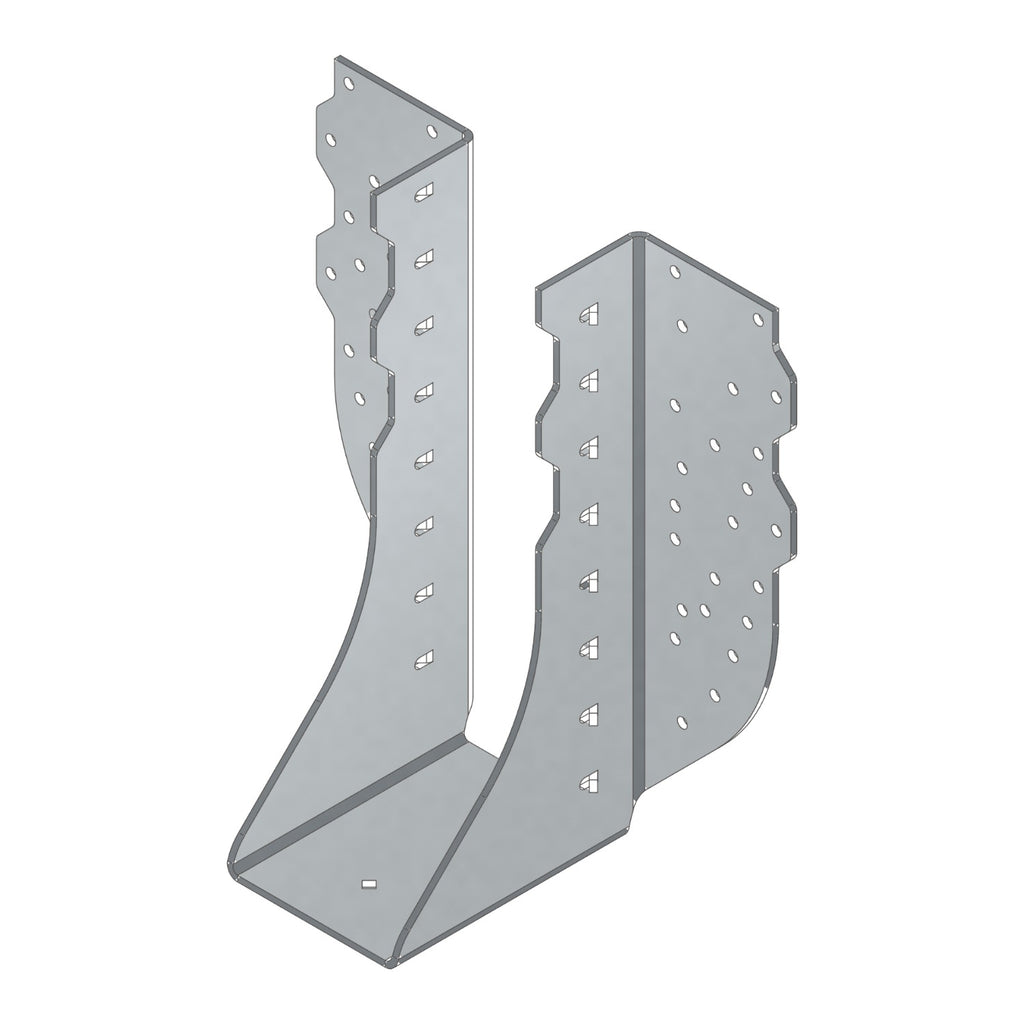

Simpson Strong-Tie HGUS2.75/10 Face-Mount Hanger is an extra-heavy-capacity girder hanger engineered for demanding structural applications that require dependable girder support. Featuring a value-engineered design, this hanger delivers high load-carrying performance with double-shear nailing technology that distributes load forces through two points on each joist nail for exceptional strength and reliability.
Key Features
- Extra-heavy-capacity construction designed for applications requiring girder support
- Double-shear nailing distributes the load through two points on each joist nail for greater strength
- Value-engineered design provides high load capacity at an economical price point
- 12-gauge steel construction for robust structural performance
- Zinc Galvanized G90 coating for corrosion resistance
- Face-mount installation design for straightforward field application
Specifications
- Model No.: HGUS2.75/10
- Gauge: 12
- W (in.): 2-3/4
- H (in.): 8-7/8
- B (in.): 4
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Options
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What makes the HGUS2.75/10 suitable for heavy girder applications?
- The HGUS2.75/10 is built as an extra-heavy-capacity hanger specifically designed for applications requiring girder support. Its 12-gauge steel construction and double-shear nailing system work together to distribute loads through two points on each joist nail, providing the structural integrity needed for demanding girder connections. < This design significantly increases the overall strength and load capacity of the connection, making it well suited for heavy structural applications where load distribution is critical.
- What type of coating does the HGUS2.75/10 have?
- The HGUS2.75/10 features a Zinc Galvanized G90 coating, which provides a protective layer against corrosion and helps extend the service life of the hanger in typical construction environments.
- What are the primary dimensions of the HGUS2.75/10?
- The HGUS2.75/10 has a width (W) of 2-3/4 inches, a height (H) of 8-7/8 inches, and a bearing seat width (B) of 4 inches, making it appropriately sized for 2-3/4-inch nominal width girder members.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
