Product Description

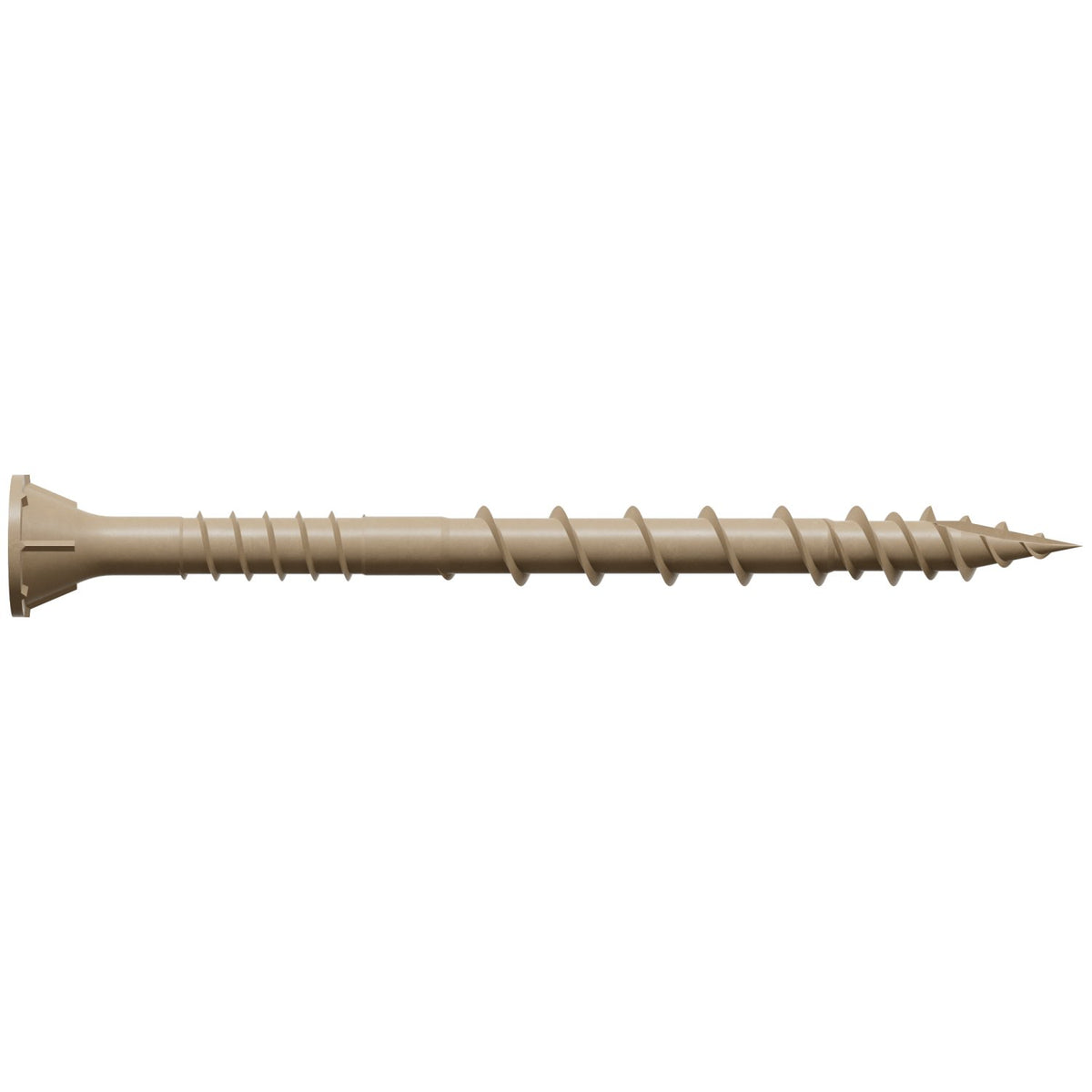

The Simpson Strong-Tie Deck-Drive DSV Wood Screw (Model HCKDSVT2S) is a powerful fastening solution engineered specifically for preservative-treated decking applications. Featuring a rimmed flat head with under-head nibs and a high-low threaded fast-start tip, the DSV screw is ideally suited to be driven and countersunk cleanly into today's wood deck boards. Its variable thread design and optimized shank are built to withstand the swelling and shrinkage common with fast-growth dimensional lumber. This package contains 750 collated #10 x 2 in. screws in a tan finish with Quik Guard corrosion-resistant coating, and is designed for use with the Simpson Strong-Tie Quik Drive auto-feed screw driving system - making large deck projects faster, easier, and more consistent than ever.
Key Features
- Low-Torque Threads: Specially engineered low-torque threads reduce driving effort and extend battery life on cordless auto-feed systems.

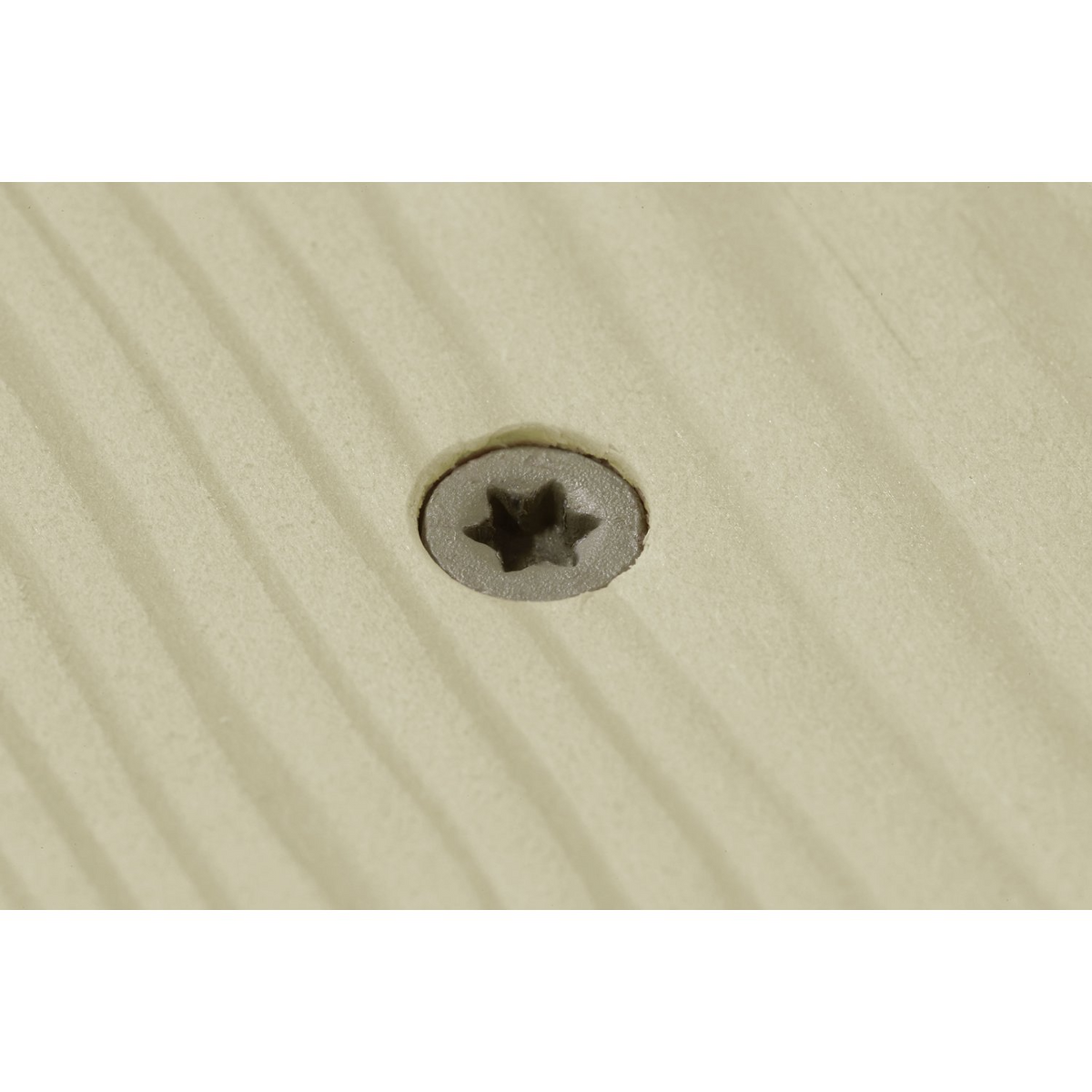

- Rimmed Flat Head with Nibs: The rimmed flat head with nibs design countersinks easily into wood deck boards and provides a clean, finished appearance at the surface.
- High-Low Threaded Point for Fast Starts: The high-low threaded tip engages material quickly, providing fast, accurate starts without pre-drilling in dimensional lumber.
- Variable Thread Design: Optimized threads are engineered specifically for dimensional lumber, accommodating the natural movement and grain structure of wood decking.
- Quik Guard Coating: The proprietary Quik Guard coating delivers corrosion resistance for exterior and certain preservative-treated wood applications.
- Meets AC257 Performance Requirements: Tested and confirmed to meet the performance requirements of ICC-ES AC257 exposure conditions 1 and 3.
- T25 6-Lobe Drive: Compatible T25 6-lobe drive system provides positive bit engagement and reduces cam-out. A T25 driver bit (model BITTX25) is included.

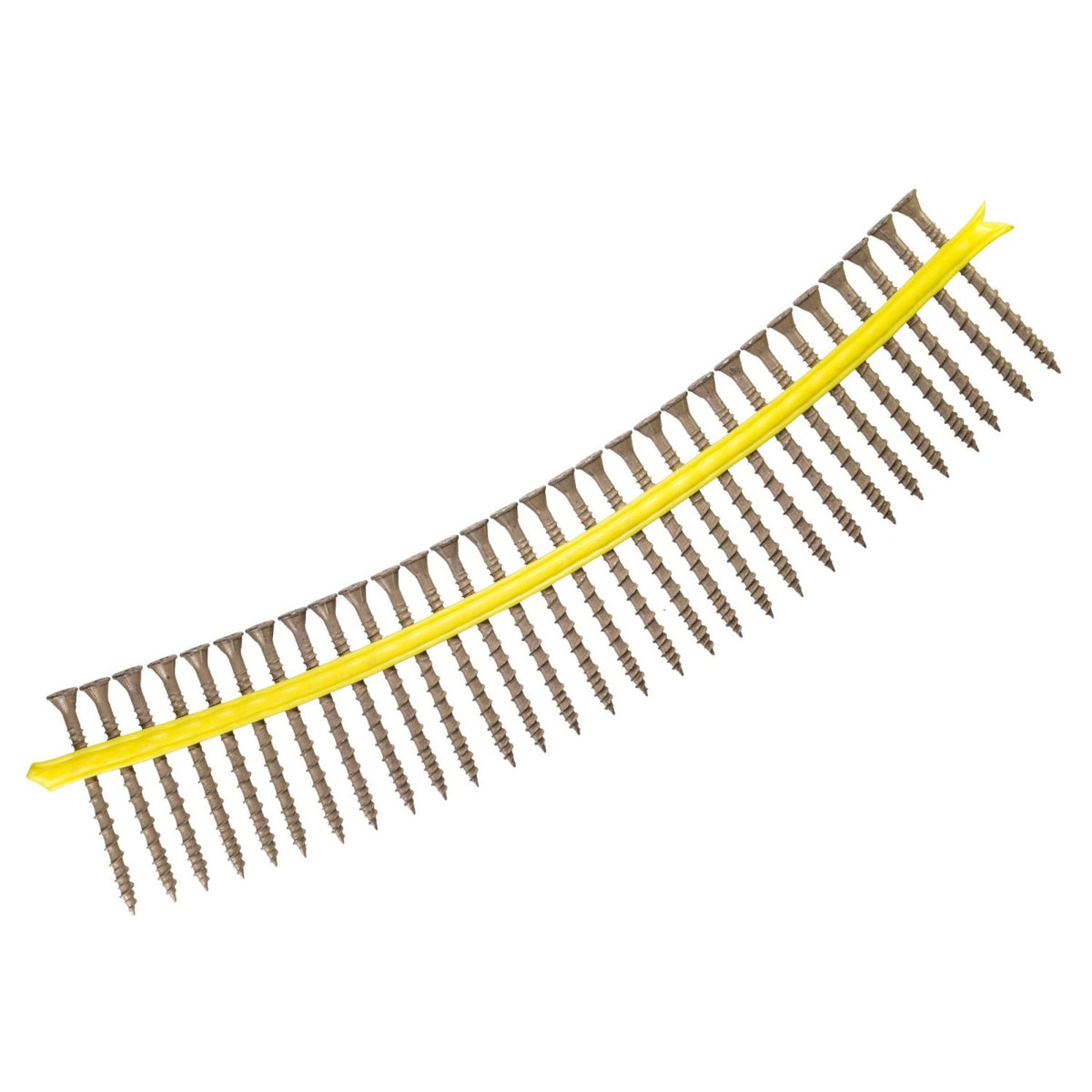

- Collated for Auto-Feed Systems: Curved collation strip format is compatible with Simpson Strong-Tie Quik Drive PRO200SG2, PRO250G2, PRO300SG2, and Project Pro auto-feed screw driving systems and attachments.
- Tan Color: Tan finish is designed to blend with the natural appearance of most wood deck boards.
- 750-Count Package: Each package includes 750 collated screws - ideal for large decking projects.
Specifications
- Model Number (MPN): HCKDSVT2S
- Screw Size: #10
- Length: 2 in.
- Head Type: Rimmed Flat Head with Nibs
- Head Diameter: 0.333 in.
- Drive Type: T25 6-Lobe
- Thread Type: Variable Thread Design
- Point Type: High-Low Threaded Point
- Collation Type: Curved
- Coating / Finish: Quik Guard Coating
- Color: Tan
- Package Quantity: 750
- Compatible Auto-Feed Systems: Simpson Strong-Tie Quik Drive PRO200SG2, PRO250G2, PRO300SG2, and Project Pro
Frequently Asked Questions
- Which auto-feed screw driving systems are compatible with these collated DSV screws?
- These collated DSV screws are designed for use with the Simpson Strong-Tie Quik Drive PRO200SG2, PRO250G2, PRO300SG2, and Project Pro auto-feed screw driving systems and their corresponding attachments. The collation type is curved, which is specific to these compatible systems.
- Are these screws suitable for use with preservative-treated lumber?
- Yes. The DSV screws feature a Quik Guard coating that provides corrosion resistance for exterior and certain preservative-treated wood applications. They also meet the performance requirements of AC257 exposure conditions 1 and 3, making them appropriate for treated decking applications.
- What drive type do these screws use, and is a driver bit included?
- These screws use a T25 6-lobe drive. A T25 driver bit (model BITTX25) is included in the package, so no separate bit purchase is required to get started.
- How does the variable thread design benefit wood decking installations?
- The variable thread design is optimized specifically for dimensional lumber, allowing the shank to better withstand the swelling and shrinkage that is common with fast-growth lumber. Combined with low-torque threads and a high-low threaded point for fast starts, the DSV screw is engineered to countersink cleanly into wood deck boards without excessive driving effort.
