Product Description

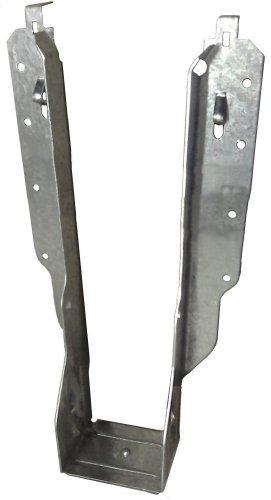

The Simpson IUS2.37/9.5 Face-Mount Joist Hanger is a hybrid connector from Simpson that brings together the strengths of both face-mount and top-mount hanger designs into a single, versatile solution. Built specifically for shallow-flange I-joists with an actual joist size of 2-5/16 in. x 9-1/2 in., this 18-gauge steel hanger delivers a strong, reliable connection for engineered wood framing applications. The innovative Strong-Grip seat lets the I-joist snap securely into place, eliminating the need for joist nails and keeping your installation moving efficiently.
Key Features
- Strong-Grip seat with self-jigging locator tabs - the I-joist snaps firmly into position without joist nails, reducing labor time and installed cost on the job site
- Easy-to-reach face nail locations - fastening access is built into the design, so driving 10d common nails through the hanger is straightforward and does not require awkward positioning
- Hybrid face-mount and top-mount design - combines the advantages of both hanger styles in one product, giving framers greater installation flexibility and full compatibility with shallow-flange I-joists
- 18-gauge steel construction - provides a sturdy, load-bearing connection suited to engineered wood joist applications without adding unnecessary bulk
- G90 zinc galvanized finish - adds an extra layer of corrosion resistance, helping the hanger hold up in demanding or moisture-prone framing environments
Why This Product
- Engineered for I-joist compatibility - the IUS series is fully compatible with shallow-flange I-joists, making it a precise fit for engineered wood framing rather than a compromise solution adapted from standard lumber hardware
- Faster installs with fewer fasteners - the Strong-Grip seat secures the I-joist without joist nails, and self-jigging locator tabs keep the hanger properly positioned during installation, cutting down on setup time on every bay
- One hanger, two mounting advantages - by combining face-mount and top-mount hanger principles into a single product, this hanger reduces the need to source and manage multiple connector types for a single framing project
- Built-in corrosion protection - the G90 zinc galvanized coating means this connector is ready for use in environments where bare steel would deteriorate, helping maintain connection integrity over the life of the structure
Specifications
- MPN: IUS2.37/9.5
- Member Size: 2-5/16 in. x 9-1/2 in.
- Seat Width: 2-7/16 in.
- Height: 9-1/2 in.
- Gauge: 18
- Coating/Finish: Zinc Galvanized, G90
- Install With: 10d common nails (sold separately)
- Width: 2-7/16 in.
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What type of lumber or beam is the IUS2.37/9.5 designed to support?
The IUS2.37/9.5 is designed for use with engineered wood I-joists with an actual joist size of 2-5/16 in. x 9-1/2 in. It is fully compatible with shallow-flange I-joists.
What makes this a "hybrid" hanger?
The IUS series incorporates the advantages of both face-mount and top-mount hanger designs into a single product, offering greater installation flexibility and compatibility compared to a traditional single-style hanger.
Do I need to nail through the joist seat to secure the I-joist?
No. The Strong-Grip seat feature allows the I-joist to snap securely into place without the need for joist nails, which helps reduce installed cost and speeds up the installation process.
What fasteners are recommended for installing the IUS2.37/9.5?
This hanger is recommended to be installed with 10d common nails, driven through the easy-to-reach face nail locations on the hanger.
