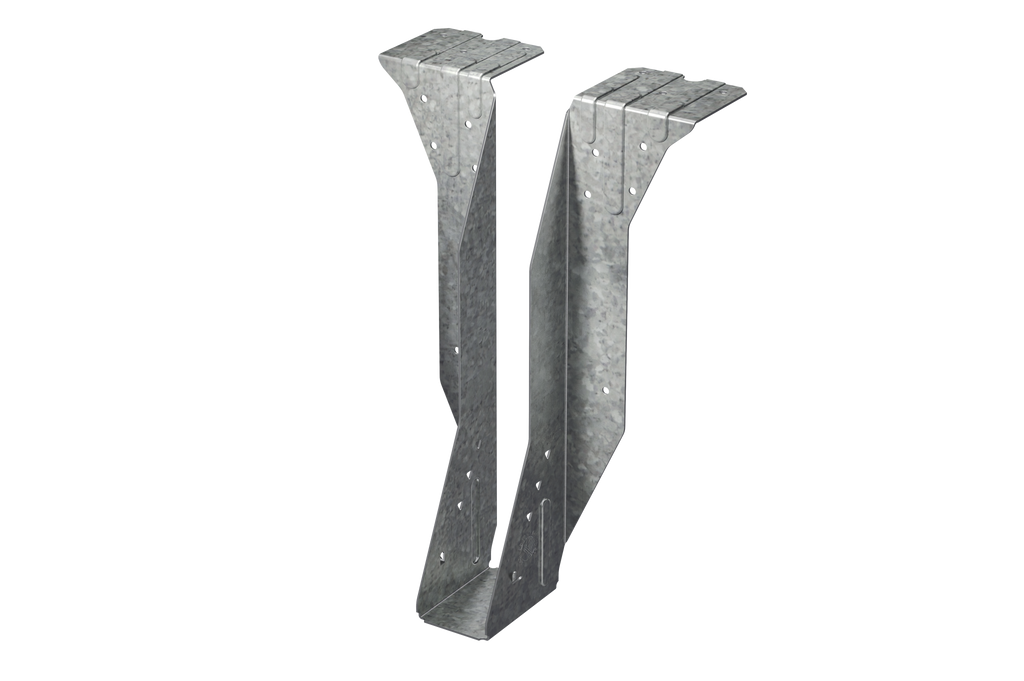

The Simpson BA5.12/9.5 Top-Flange Joist Hanger is a heavy-duty connector designed for double 2-1/2 in. x 9-1/2 in. engineered wood and solid sawn lumber framing connections. Built from 12-gauge steel with a G90 galvanized finish, this top-flange hanger supports medium loads with solid sawn lumber and higher loads with engineered wood products. The BA design accommodates both minimum nailing with positive-angle nailing (PAN) for moderate load conditions and maximum nailing for higher-load applications, giving framers the flexibility to meet a wide range of structural requirements in a single connector.

Key Features

• Cost-effective one-piece design - eliminates the added expense and potential weak points of welded hangers, delivering reliable structural integrity without unnecessary complexity.
• Full-height joist flange - captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners, reducing both material costs and installation steps.
• Dual nailing configurations (minimum PAN and maximum) - lets installers dial in the right load capacity for each application without switching to a different hanger model.
• Compatible with both engineered wood products and solid sawn lumber - provides flexibility across framing systems and job-site conditions without requiring separate connectors for each material type.
• 12-gauge steel construction - provides the thickness and rigidity needed to handle medium to higher structural loads in top-flange joist-to-header and joist-to-beam installations.
• G90 zinc galvanized finish - adds an extra layer of corrosion resistance, making this hanger suitable for applications where long-term durability matters.
• Available modified for sloped and/or skewed members - offers adaptability for non-standard framing angles, keeping the same trusted hanger design working across more complex framing layouts.

Why This Product

• One hanger, two load levels - the BA's support for both minimum PAN nailing and maximum nailing means a single connector model covers moderate and higher load demands, reducing the need to stock multiple hanger types for similar joist sizes.
• Built-in rotation control without extra hardware - the full-height joist flange captures the top chord and prevents joist rotation, removing the need for web stiffeners and simplifying the overall framing assembly.
• Engineered wood-ready performance - while capable of handling solid sawn lumber at medium loads, this hanger is specifically suited to carry higher loads when paired with engineered wood products, making it a strong match for modern framing where LVL and I-joist construction is common.
• Durable finish for long-term reliability - the G90 galvanized coating provides corrosion resistance that helps the connection maintain its structural integrity over the life of the building, without requiring additional protective treatment.

Specifications

• Model Number: BA5.12/9.5
• Member Size: Double 2-1/2 in. x 9-1/2 in.
• Steel Gauge: 12-gauge
• W (in.): 5-1/8
• H (in.): 9-1/2
• B (in.): 3
• TF (in.): 2-1/2
• Coating / Finish: Zinc Galvanized, G90
• Country of Origin: United States

Approved Applications

• Engineered wood product (EWP) framing connections
• Solid sawn lumber framing connections
• Top-flange joist-to-header or joist-to-beam installations requiring medium to higher load capacity
• Applications with moderate load conditions using minimum nailing with positive-angle nailing (PAN)
• Higher-load applications using maximum nailing configuration

Installation

• Install with 0.162 in. x 3-1/2 in. nails in the header
• Install with 0.148 in. x 1-1/2 in. nails in the joist

Options

• Other widths are available; specify W dimension (the minimum W dimension is 1 9/16").

• For modified hangers, fastener quantity listed in tables may need to increase depending on joist size, skew and slope. All modified hangers are 12 ga.
• Hangers may be modified for slopes and/or skews up to 45 deg.. The top flanges may be sloped as much as 35 deg. and may be open or closed up to 30 deg.. See Modifications and Associated Load Reductions under Specifications
• Contact us for Customizations and Special orders
