Product Description

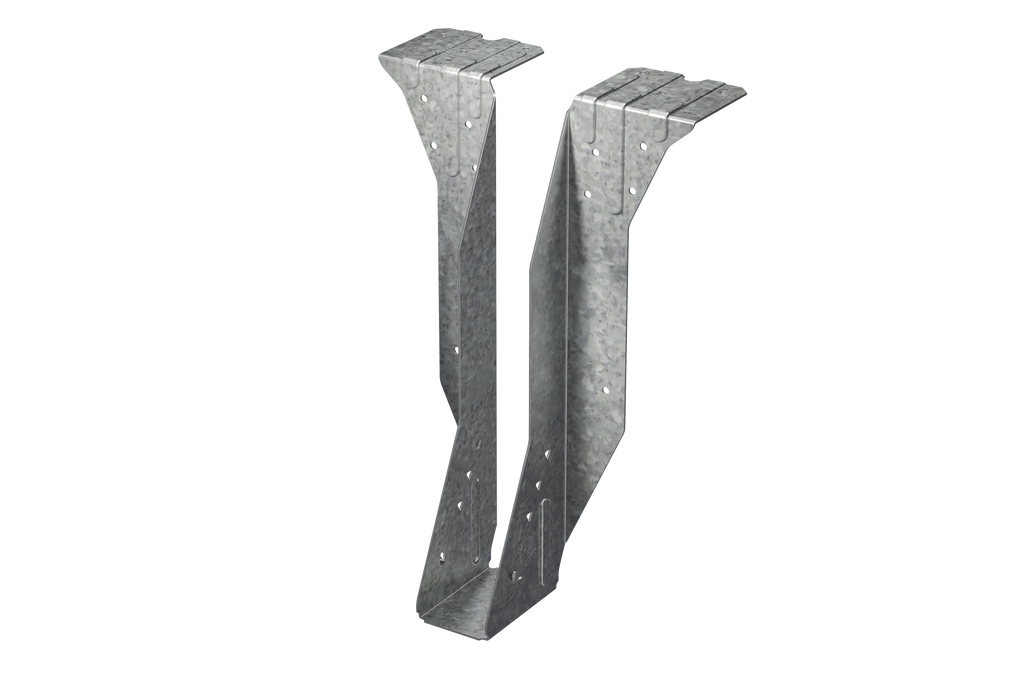

The Simpson BA3.56/22 Top-Flange Joist Hanger is a heavy-duty connector built for 3-1/2 in. x 22 in. engineered wood products and solid sawn lumber, delivering reliable load transfer in a single, job-site-ready component. Formed from 12-gauge steel with a G90 zinc galvanized finish, this top-flange hanger supports medium loads with solid sawn lumber and higher loads with engineered wood, making it a practical choice for a wide range of structural framing connections. Its positive-angle nailing (PAN) capability accommodates moderate load conditions with minimum nailing, while maximum nailing configuration handles heavier demands - giving installers straightforward flexibility without switching hardware.
Key Features
- Cost-effective one-piece construction - eliminates the added expense and complexity of welded hangers, streamlining procurement and installation
- Full-height joist flange - captures the top chord of the joist to actively prevent rotation and remove the need for web stiffeners, reducing labor and material costs on the job site
- Dual nailing configurations (PAN minimum and maximum) - lets installers dial in the right load capacity for the application without sourcing a different hanger
- 12-gauge steel construction - provides the structural strength needed to carry medium loads in solid sawn lumber applications and higher loads in engineered wood product installations
- G90 zinc galvanized finish - delivers extra corrosion resistance to extend service life in demanding framing environments
- Available for sloped and skewed member applications - accommodates non-standard framing configurations through special order, adding versatility to the BA series
Why This Product
- Engineered for both EWP and solid sawn lumber - the BA3.56/22 handles higher loads when paired with engineered wood products and medium loads with solid sawn lumber, making it a genuinely dual-purpose hanger that reduces the need to stock multiple SKUs for different framing scenarios
- No web stiffeners required - the full-height joist flange design captures the top chord and resists rotation on its own, cutting out a separate installation step and the associated materials cost
- One-piece design at a lower price point than welded alternatives - buyers get structural performance without paying a premium for multi-piece or welded hanger assemblies, keeping project budgets in check
- Made in the United States from 12-gauge galvanized steel - consistent material quality and G90 corrosion protection mean the hanger is built to perform over the long term in structural framing applications
Specifications
- Model Number: BA3.56/22
- Member Size: 3-1/2 in. x 22 in.
- Steel Gauge: 12
- W (in.): 3-9/16
- H (in.): 22
- B (in.): 3
- TF (in.): 2-1/2
- Coating / Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Engineered wood product (EWP) beam and joist connections requiring higher load capacity
- Solid sawn lumber framing applications requiring medium load support
- Top-flange hanger installations where joist rotation resistance is required
- Applications where web stiffeners need to be eliminated for installation efficiency
- Moderate load conditions using minimum nailing with positive-angle nailing (PAN)
- Higher load conditions using maximum nailing configuration
Installation
- Install with 0.162 in. x 3-1/2 in. nails in the header
Options
- Contact us for Customizations and Special orders
Frequently Asked Questions
What size joist is the BA3.56/22 designed to support?
The BA3.56/22 is designed for members measuring 3-1/2 in. x 22 in. It is compatible with both engineered wood products and solid sawn lumber of that size.
What nails should be used to install the BA3.56/22?
Install the BA3.56/22 with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist. The hanger supports both minimum nailing using positive-angle nailing (PAN) for moderate load conditions and maximum nailing for higher loads.
Does the BA3.56/22 require web stiffeners?
No. The BA3.56/22 features a full-height joist flange that captures the top chord of the joist, which prevents rotation and eliminates the need for web stiffeners.
Can the BA3.56/22 be used for sloped or skewed applications?
The standard BA3.56/22 is not configured for sloped or skewed members, but it is available for special order to accommodate sloped and/or skewed installations.
