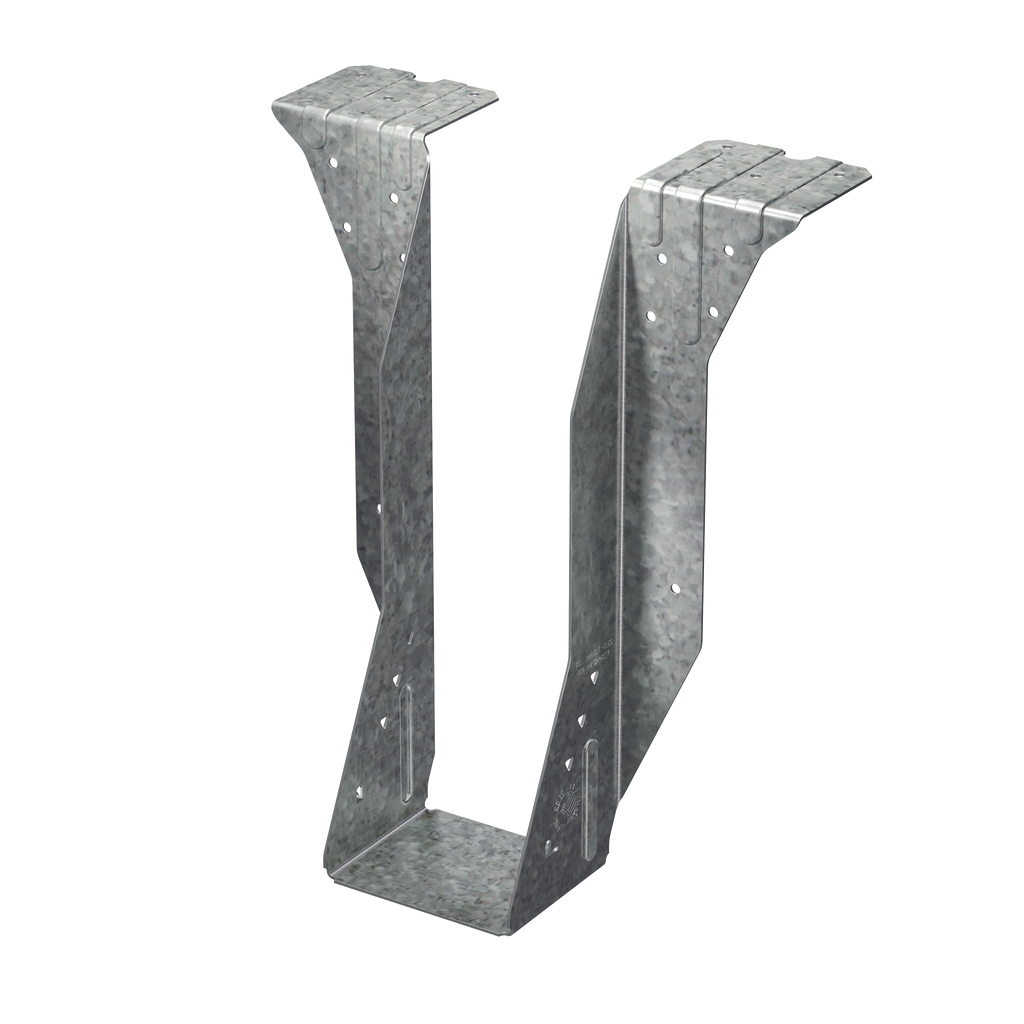

The Simpson BA2.37/14 BA Top-Flange Joist Hanger for 2-5/16 in. x 14 in. Engineered Wood from Simpson is a versatile structural connector designed for both engineered wood products and solid sawn lumber applications. This top-flange hanger handles medium loads with solid sawn lumber and higher loads with engineered wood products, giving builders flexibility across a range of framing conditions. The BA series supports minimum nailing with positive-angle nailing (PAN) for moderate load conditions, as well as maximum nailing configurations for higher load demands - making it a practical fit for residential and light commercial framing projects alike.

Key Features

• Cost-effective one-piece design - eliminates the higher cost and complexity of welded hangers, saving time and money on structural framing installations
• Full-height joist flange - captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners, reducing both labor and material costs
• Dual nailing configurations (PAN minimum and maximum nailing) - lets installers match the fastening pattern to the actual load requirement, avoiding over-engineering or under-building
• Compatible with engineered wood and solid sawn lumber - supports medium loads with solid sawn lumber and higher loads with engineered wood products, adding flexibility across project types
• Available for sloped and/or skewed member applications - accommodates non-standard framing angles, making it usable in complex roof and floor geometries
• 14-gauge steel construction - provides the structural integrity and rigidity needed for load-bearing joist hanger applications in demanding framing conditions
• Zinc Galvanized G90 finish - delivers extra corrosion resistance, extending service life in environments where moisture exposure is a concern

Why This Product

• One hanger, two lumber types - because the BA2.37/14 works with both engineered wood and solid sawn lumber, contractors can use a single connector model across mixed-material framing jobs without stocking multiple hanger types
• No web stiffeners needed - the full-height joist flange prevents joist rotation and eliminates a separate installation step, keeping the job moving faster with fewer components on site
• Load flexibility built in - the support for both minimum PAN nailing and maximum nailing configurations means this hanger adapts to moderate and higher load conditions without requiring a different product, reducing the risk of specification errors
• G90 galvanized protection on a domestic-made connector - the Zinc Galvanized G90 coating provides meaningful corrosion resistance for long-term performance, and the hanger is made in the United States to Simpson quality standards

Specifications

• Model Number: BA2.37/14
• Member Size: 2-5/16 in. x 14 in.
• Gauge: 14
• W (in.): 2-3/8
• H (in.): 14
• B (in.): 3
• TF (in.): 2-1/2
• Coating/Finish: Zinc Galvanized, G90
• Installation Fasteners: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
• Country of Origin: United States

Options

• Other widths are available; specify W dimension (the minimum W dimension is 1 9/16").

• For modified hangers, fastener quantity listed in tables may need to increase depending on joist size, skew and slope. All modified hangers are 12 ga.
• Hangers may be modified for slopes and/or skews up to 45 deg.. The top flanges may be sloped as much as 35 deg. and may be open or closed up to 30 deg.. See Modifications and Associated Load Reductions under Specifications
• Contact us for Customizations and Special orders

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
