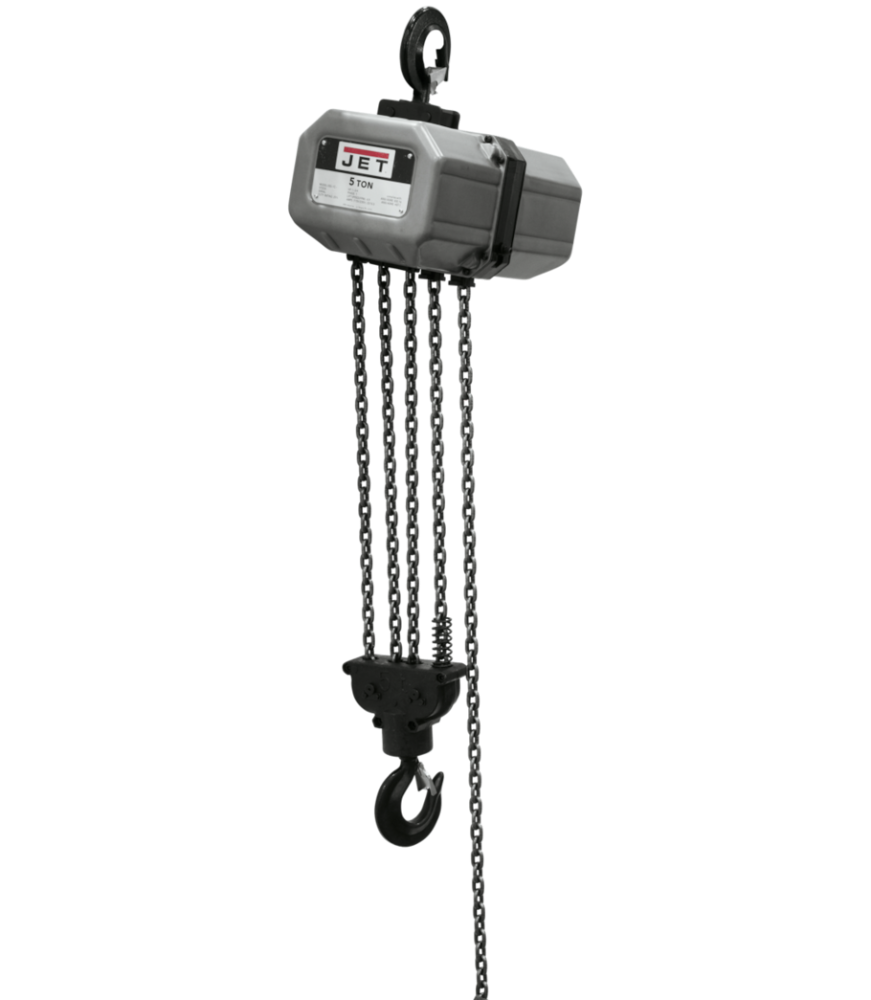

JET 5SS-3C-20 5-Ton Electric Chain Hoist is a heavy-duty, three-phase electric chain hoist engineered by JET for demanding commercial and industrial lifting applications. With a rated capacity of 11,200 lbs and a 20-foot lift, this hoist delivers reliable, safe performance backed by a robust suite of safety mechanisms and an all-steel construction built to withstand the rigors of daily industrial use.
Key Features
- All Steel Construction - Built entirely of steel for maximum strength, longevity, and resistance to the demands of heavy industrial environments.
- NEMA 4X Compliant Push Button Control Pendants - Control pendants meet NEMA 4X standards, providing protection against corrosion, dust, and moisture during operation.
- Durable Powder Coat Finish - A tough powder coat finish protects the hoist body against wear, chipping, and corrosion for extended service life.
- Grade 80 Load Chain - Grade 80 black oxide coated load chain delivers exceptional durability and reliable performance under heavy loads.
- Upper and Lower Limit Switches - Upper and lower limiting switches increase safety by preventing the load chain from over traveling at either end of the lift range.
- Slip Clutch Overload Protection - Slip clutch design prevents the hoist from lifting damaging loads above its rated capacity, protecting both the equipment and the operator.
- Push Button Controller with Cable Strain Relief - The push button controller incorporates a cable strain relief system for enhanced durability and reliability during extended use.
- Reverse Phase Relay - A safety switch that protects the hoist from incorrect wiring of the power supply, preventing potentially damaging reverse-phase operation.
Specifications
- MPN: JT9-530200
- Brand: JET
- Model: 5SS-3C-20
- Load Capacity: 5 Tons
- Capacity (Lbs.): 11,200 lbs
- Lift: 20 ft
- Phase Configuration: 3-Phase
- Lifting Speed: 4.9 FPM
- Duty Cycle: 30%
- Duty Cycle Rating: H3
- Max. Number of Starts (Per Hr.): 180
- Country of Origin: China
Frequently Asked Questions
- What safety features does this hoist include to prevent overloading?
- The JET 5SS-3C-20 features a slip clutch overload protection design that prevents the hoist from lifting damaging loads above its rated capacity of 11,200 lbs. This mechanism protects both the hoist and surrounding equipment from harm caused by accidental overloading.
- What is the purpose of the upper and lower limit switches?
- The upper and lower limiting switches increase safety by preventing the load chain from over traveling at either end of its range. This ensures the chain does not run past its safe operating boundaries during lifting or lowering operations.
- Why does this three-phase hoist include a reverse phase relay?
- The reverse phase relay is a safety switch that protects the hoist from incorrect wiring of the power supply. If the three-phase power supply is wired incorrectly, the relay prevents the hoist from operating in a potentially dangerous reverse-phase condition.
- What makes the load chain on this hoist suitable for heavy industrial use?
- This hoist uses a Grade 80 black oxide coated load chain, which provides exceptional strength and durability under heavy loads. The Grade 80 rating denotes a high-strength alloy steel chain specifically designed for overhead lifting applications, and the black oxide coating adds an additional layer of corrosion and wear resistance.
