Product Features
Product Description

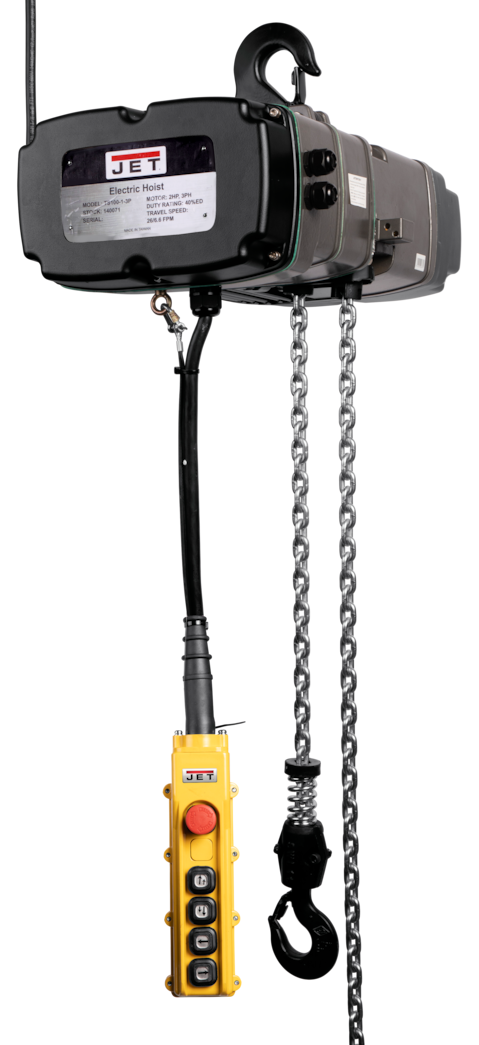

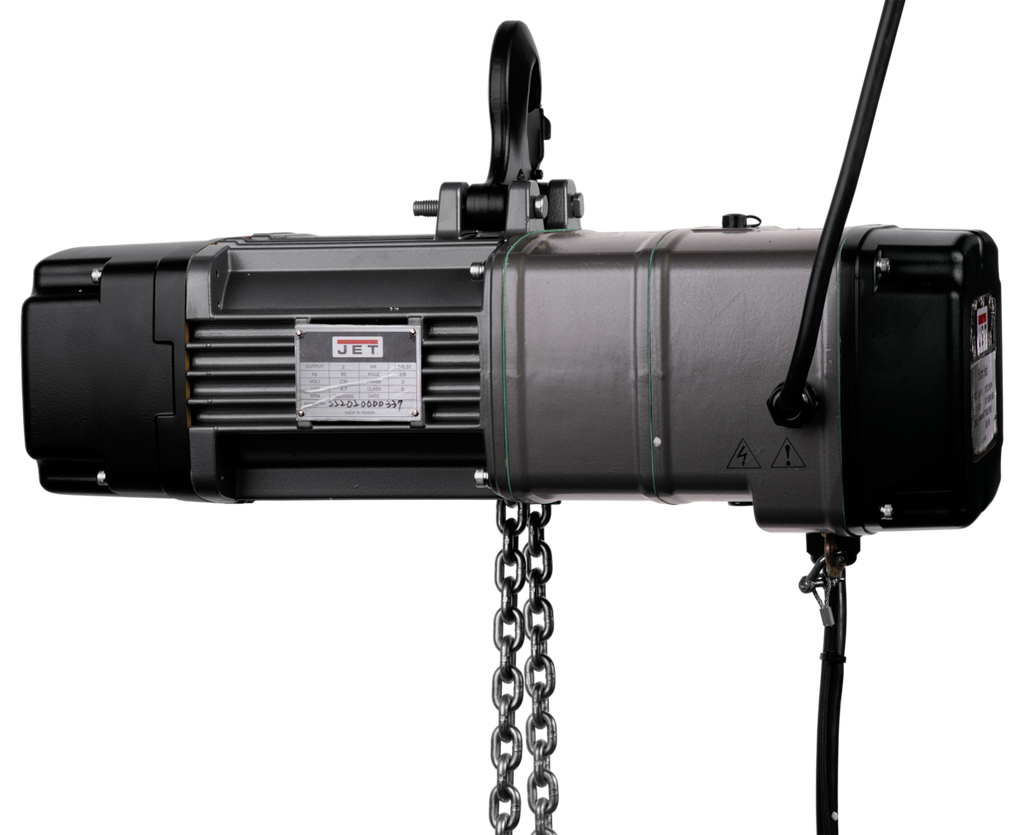

JET 1/2-Ton Two Speed Electric Chain Hoist with 3-Phase Motor, 10' Lift, 2 Speed Trolley, and 4 Button Wired Pendant is engineered by JET for demanding industrial lifting applications where safety, precision, and durability are non-negotiable. Combining a two-speed motor, patented gear limit switch, and robust overload protection into one powerful package, this electric chain hoist delivers reliable performance in even the harshest working environments.
Key Features
- The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life
- Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position
- DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
- Two Speed Motor ensures the correct speed for the job with a click of a button
- IP55 TEFC Motor with Class F insulation for working in harsh environments
- 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads
- Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service
- Built in heat protection will not allow lifting if internal temperatures exceed 285 deg.F (+/-40 deg.). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
- Comes with 10ft power supply cord
Specifications
- MPN: JT9-144001K
- Brand: JET
- Capacity: 1,100 lbs (1/2 Ton)
- Lift: 10 ft
- Motor Type: Two Speed, 3-Phase
- Motor Protection Rating: IP55 TEFC with Class F Insulation
- Pendant Rating: IP65 (Waterproof, Insulated, Impact Resistant)
- Pendant Type: 4 Button Wired Pendant
- Trolley: 2 Speed, 3-Phase
- Power Supply Cord Length: 10 ft
- Thermal Protection Cutoff: 285 deg.F (+/-40 deg.)
- Country of Origin: Taiwan
What's Included
- JET 1/2-Ton Two Speed Electric Chain Hoist (3-Phase)

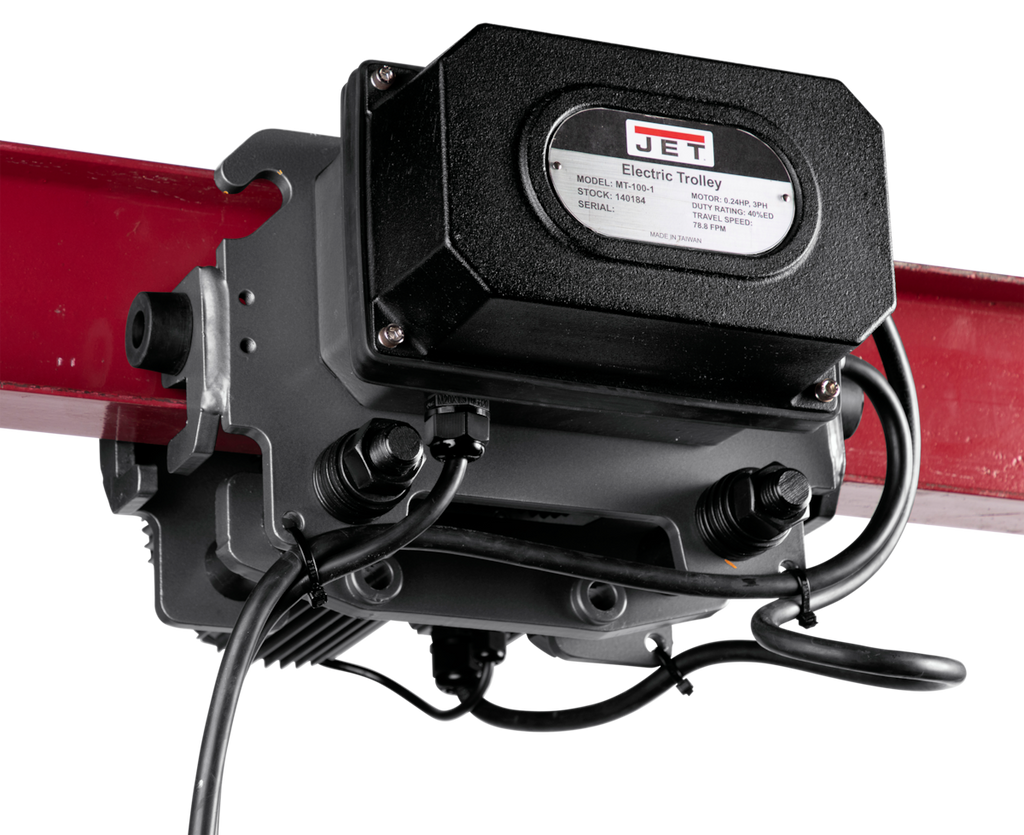

- 2 Speed Trolley (3-Phase)

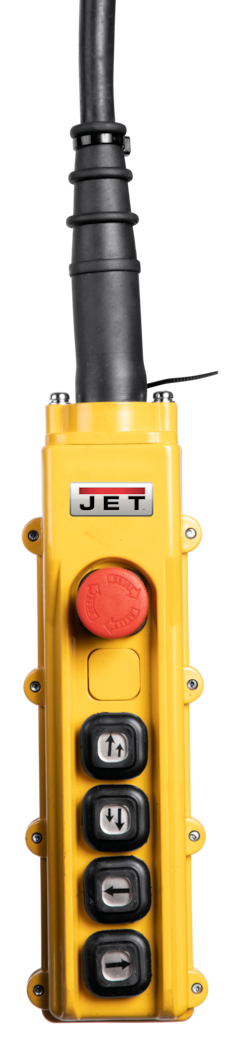

- 4 Button Wired Pendant (6 ft)
- 10 ft power supply cord
Frequently Asked Questions
- What safety features are built into this electric chain hoist?
- This hoist includes multiple layers of safety protection: the 2 in 1 Mechanical Brake and Overload Protection design safeguards both the operator and the hoist, the DC Motor Brake actuates instantly in the event of a power failure, the patented gear limit switch cuts power immediately if the hook reaches an over lifting or lowering position, and built-in heat protection prevents lifting if internal temperatures exceed 285 deg.F while still allowing the load to be safely lowered.
- Is this hoist suitable for use in wet or harsh industrial environments?
- Yes. The hoist features an IP55 TEFC Motor with Class F insulation specifically designed for working in harsh environments. Additionally, the Pendant Control is IP65 rated and is fully water-proof, insulated, and impact resistant for years of service.
- What is the benefit of the Two Speed Motor on this chain hoist?
- The Two Speed Motor ensures the correct speed for the job with a click of a button, allowing operators to move loads quickly when needed and then switch to a slower speed for precise placement - reducing excessive bump firing and improving overall efficiency and control.
- How does the 5 Pocket Chain Sprocket improve hoist performance?
- The 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads, resulting in a more controlled lift cycle and a longer service life for both the chain and the hoist itself.
