Product Features
Product Description

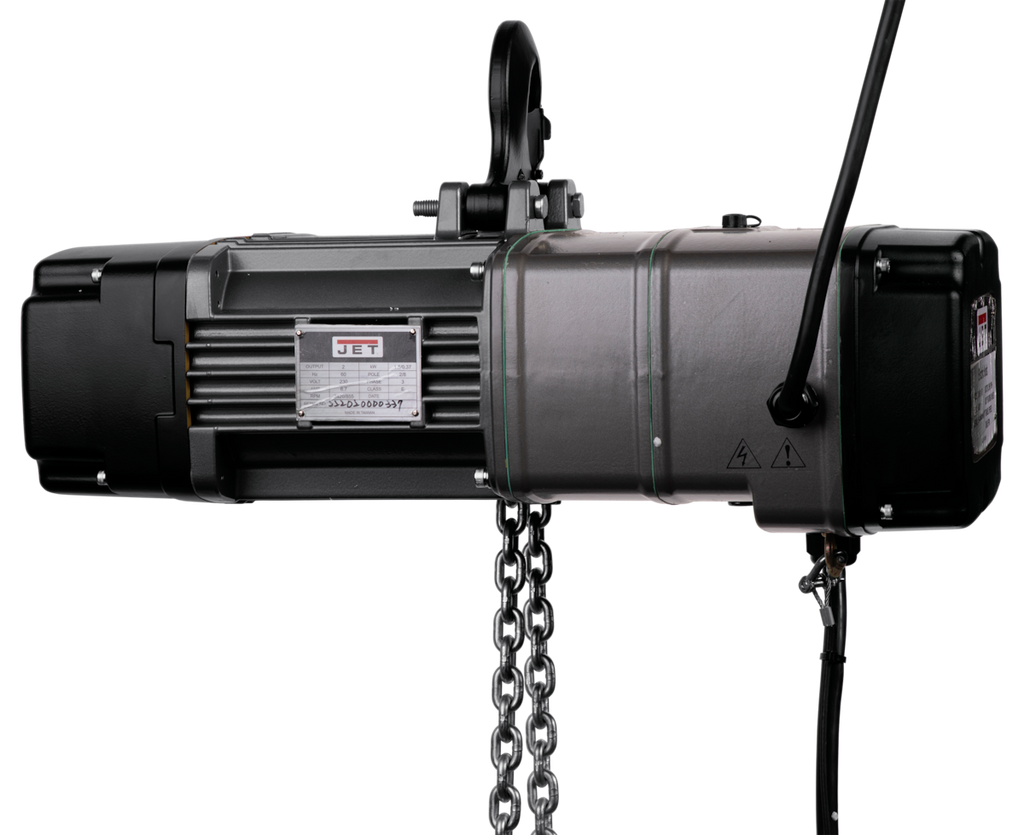

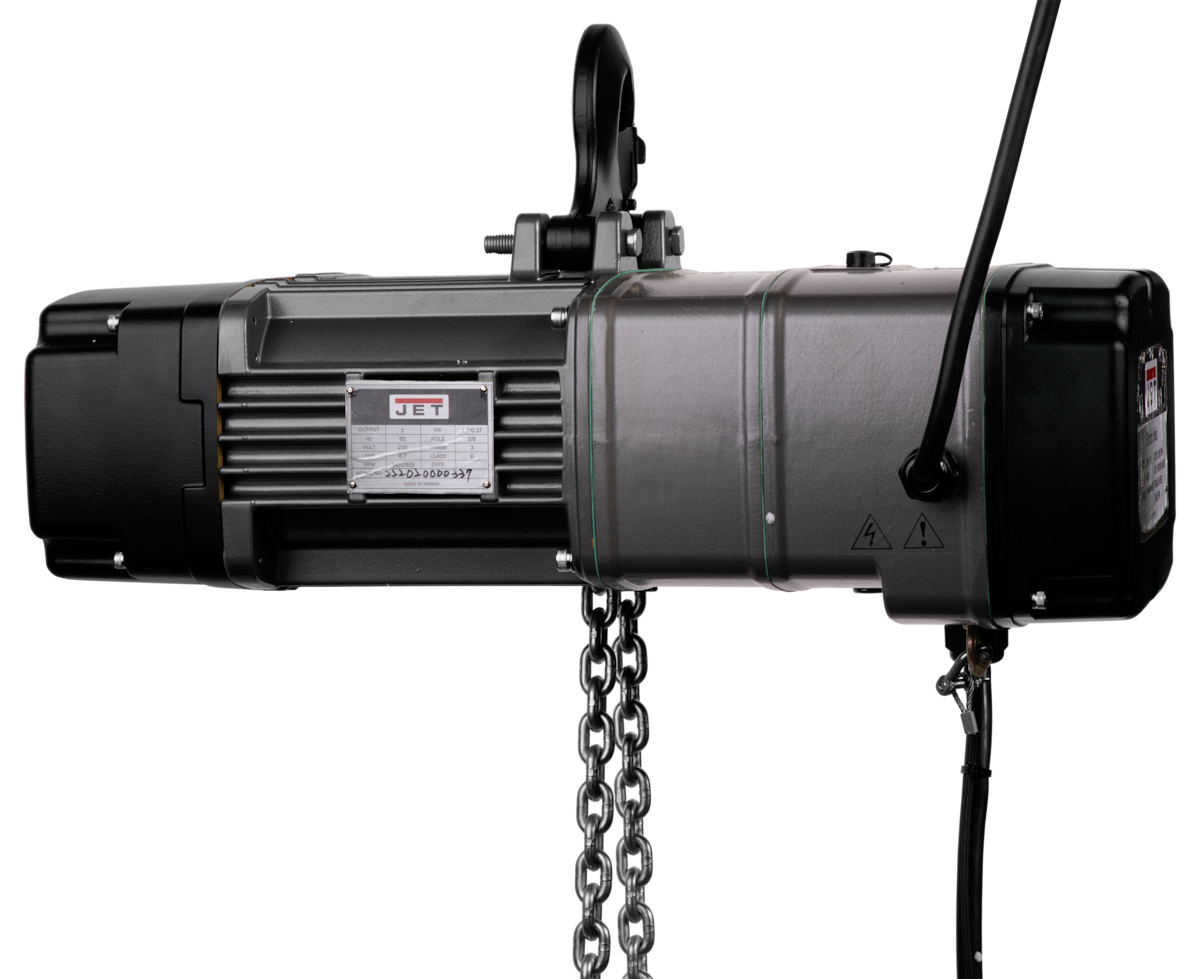

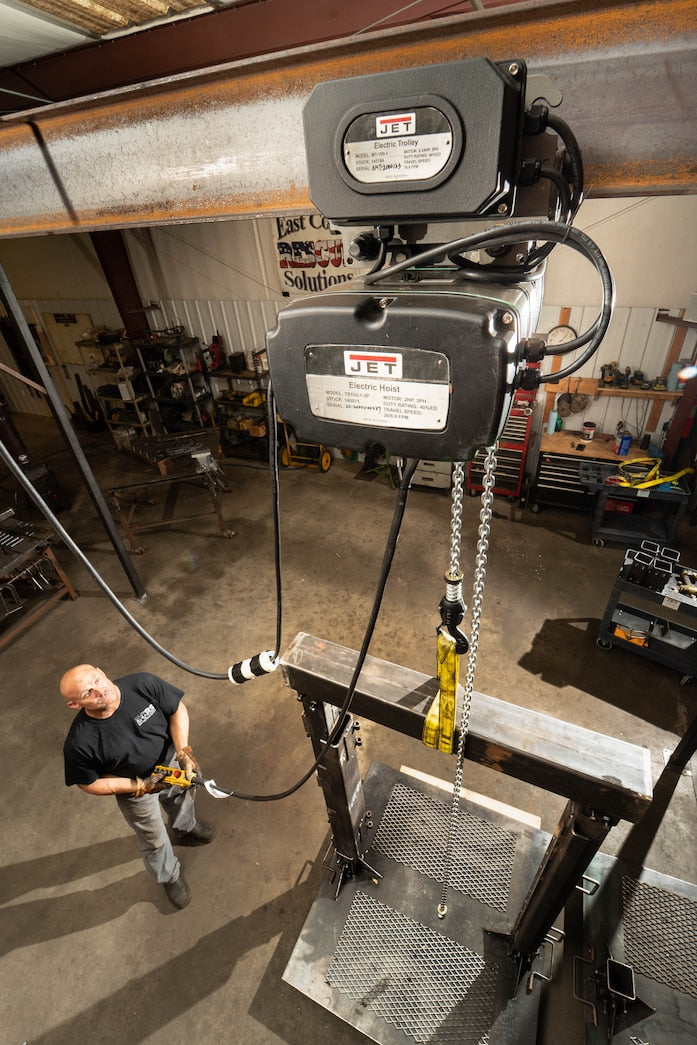

JET 2-Ton Two Speed Electric Chain Hoist 3-Phase 15' Lift TS200-230-015 by JET delivers the safety, durability, and efficient operation demanded by the toughest industrial lifting applications. With a 4,400 lb. capacity and a two-speed motor, this hoist gives operators precise control over every load - moving materials quickly when needed and slowing down for exact placement - all while built-in safety systems protect both the operator and the unit itself.
Key Features
- The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life
- Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position
- DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
- Two Speed Motor ensures the correct speed for the job with a click of a button
- IP55 TEFC Motor with Class F insulation for working in harsh environments

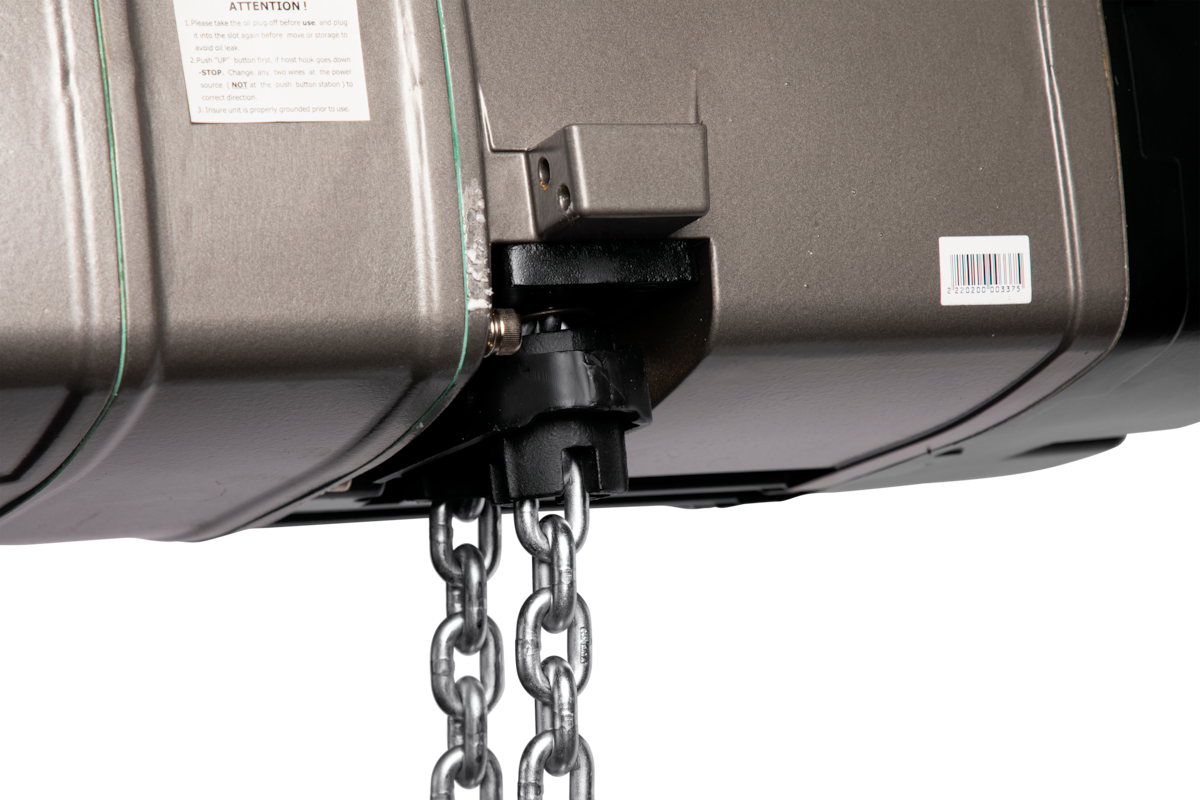

- 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads

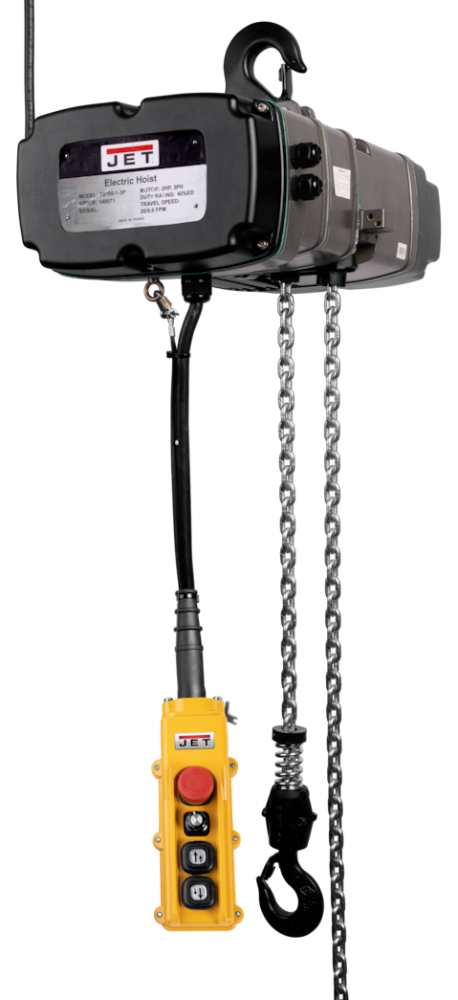

- Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service
- Built in heat protection will not allow lifting if internal temperatures exceed 285 deg.F (+/-40 deg.). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
- Comes with 10ft power supply cord
Specifications
- MPN: JT9-140094
- Brand: JET
- Capacity: 4,400 lbs (2 Ton)
- Lift: 15 ft
- Number of Speeds: 2
- Phase: 3-Phase
- Motor Type: IP55 TEFC with Class F Insulation
- Pendant Control Rating: IP65 (fully water-proof, insulated, and impact resistant)
- Power Supply Cord: 10 ft
- Country of Origin: Taiwan
What's Included
- JET TS200-230-015 Electric Chain Hoist
- IP65-rated pendant control
- 10 ft power supply cord
Frequently Asked Questions
- What safety features are built into this hoist to protect the operator?
- This hoist includes multiple layers of operator protection: a 2 in 1 Mechanical Brake and Overload Protection system, a DC Motor Brake that actuates instantly in the event of a power failure, a patented gear limit switch that cuts power immediately in over-lifting or over-lowering situations, and built-in heat protection that prevents lifting if internal temperatures exceed 285 deg.F (+/-40 deg.) while still allowing the load to be safely lowered until the unit cools.
- Can this hoist be used in wet or harsh industrial environments?
- Yes. The hoist is equipped with an IP55 TEFC Motor featuring Class F insulation, which is specifically designed for working in harsh environments. Additionally, the pendant control is IP65 rated and is fully water-proof, insulated, and impact resistant for years of reliable service.
- What is the purpose of the Two Speed Motor on this hoist?
- The Two Speed Motor ensures the correct speed for the job with a click of a button. Operators can move loads quickly during transit and then switch to a slower speed for precise, controlled placement - improving both efficiency and safety on the job.
- How does the 5 Pocket Chain Sprocket benefit long lifting operations?
- The 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads, contributing to more consistent performance and extended service life of the hoist and chain over time.
