Product Features
Product Description

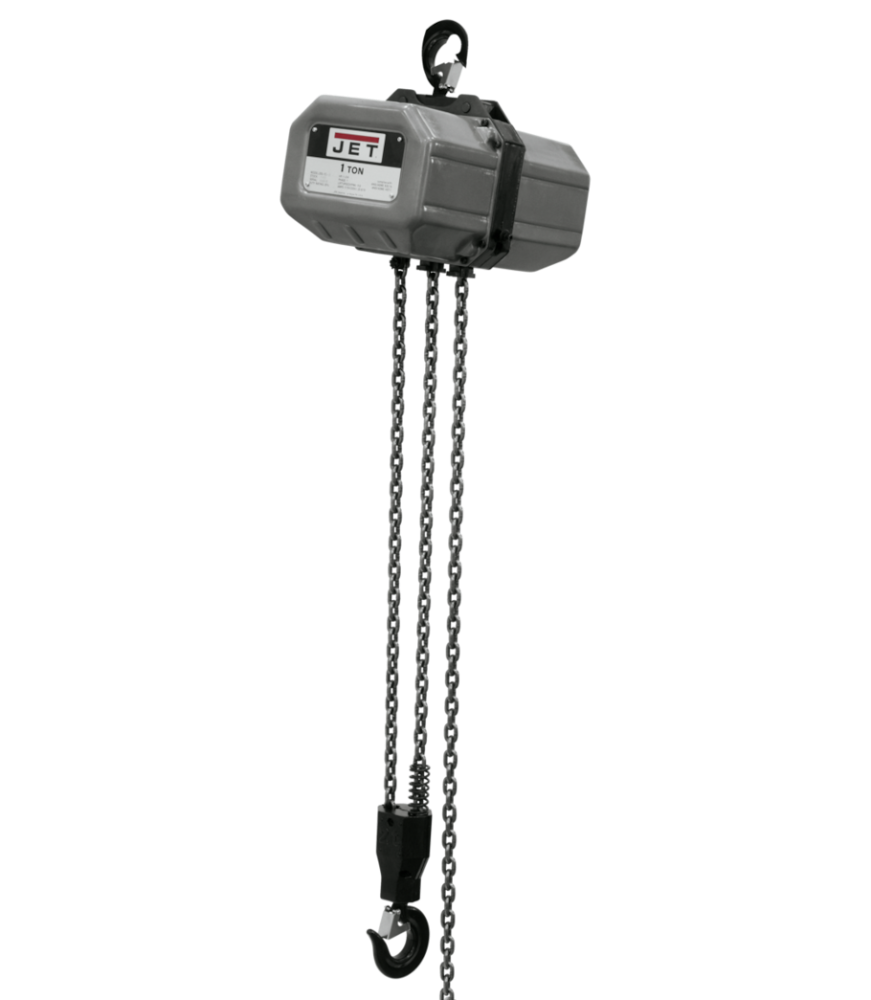

JET 1-Ton Electric Chain Hoist 3-Phase 15' Lift 1SS-3C-15 is a heavy-duty lifting solution from JET, engineered for demanding commercial and industrial environments. Built with all-steel construction and a durable powder coat finish, this three-phase electric chain hoist delivers reliable, safe lifting performance with a rated capacity of 1 ton and a standard 15-foot lift.
Key Features
- All Steel Construction - Provides exceptional strength and long-term durability in industrial settings.
- Durable Powder Coat Finish - Protects the hoist body against wear, corrosion, and daily job-site abuse.
- Grade 80 Load Chain - Grade 80 black oxide coated load chain for durability ensures reliable lifting under heavy loads.
- Overload Protection - Slip clutch design prevents the hoist from lifting damaging loads above its rated capacity, protecting both the equipment and the load.
- Upper and Lower Limit Switches - Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Reverse Phase Relay - A safety switch that protects the hoist from incorrect wiring of the power supply, ensuring proper three-phase operation.
- NEMA 4X Compliant Push Button Control Pendants - Corrosion-resistant pendant controls rated to NEMA 4X standards for durability and safe operation.
- Push Button Controller with Cable Strain Relief System - Engineered for durability and reliability, reducing wear on control wiring during repeated use.
Specifications
- MPN: JT9-131500
- Brand: JET
- Model: 1SS-3C-15
- Load Capacity: 1 Ton (2,200 Lbs.)
- Lift: 15 Ft.
- Lifting Speed: 24 FPM
- Phase Configuration: 3-Phase
- Duty Cycle: 30%
- Duty Cycle Rating: H4
- Max. Number of Starts (Per Hr.): 180
- Load Chain: Grade 80 black oxide coated
- Control Pendant: NEMA 4X compliant push button
- Country of Origin: China
Frequently Asked Questions
- What overload protection does this hoist have?
- This hoist features a slip clutch overload protection design that prevents the hoist from lifting damaging loads above its rated capacity of 1 ton, helping protect both the equipment and the materials being lifted.
- What type of load chain does the JET 1SS-3C-15 use?
- The hoist uses Grade 80 black oxide coated load chain, which is selected for its superior strength and durability under demanding industrial lifting conditions.
- What safety features are built into this three-phase hoist?
- This hoist includes multiple safety systems: upper and lower limiting switches that prevent the load chain from over traveling, a reverse phase relay that protects the hoist from incorrect wiring of the power supply, and a slip clutch overload protection mechanism to prevent lifting beyond rated capacity.
- What does the NEMA 4X rating on the push button pendant mean?
- The NEMA 4X compliant push button control pendants are designed to resist corrosion and contaminants, making them suitable for use in tough industrial environments. The pendant also incorporates a cable strain relief system for added durability and reliability during repeated operation.
