Product Features
Product Description

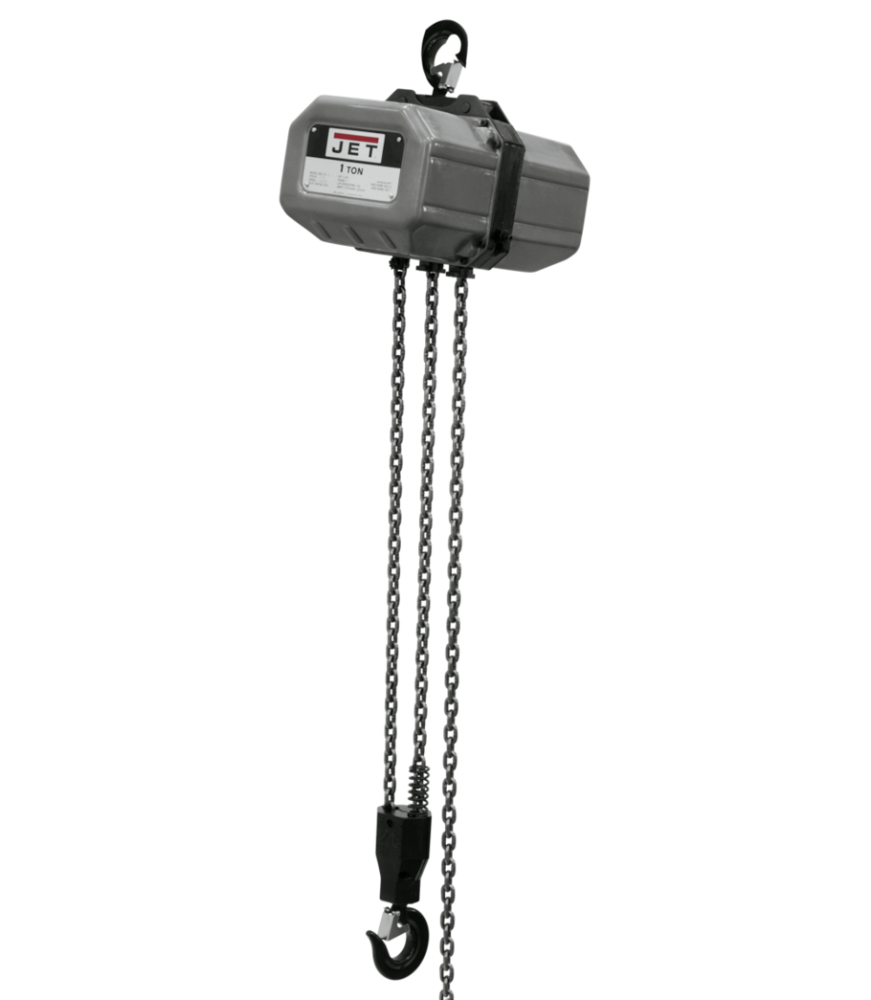

JET 1-Ton Electric Chain Hoist 1-Phase 15' Lift (1SS-1C-15) - MPN: JT9-111500 - is a heavy-duty lifting solution from JET, engineered for demanding commercial and industrial applications. Built on an all-steel construction platform with a durable powder coat finish, this single-phase electric chain hoist delivers dependable 1-ton (2,200 lb.) lift capacity across a 15-foot lift range, combining safety-focused design with a maintenance-free drivetrain for long-term reliability.
Key Features
- 24-Volt Push Button Controller: Includes a cable strain relief system for enhanced durability and reliability during daily operation.
- All Steel Construction: Provides a rugged, industrial-grade build designed to withstand tough working environments.
- NEMA 4X Compliant Push Button Control Pendants: Meets NEMA 4X standards for protection against corrosion, dust, and moisture.
- Durable Powder Coat Finish: Resists wear and corrosion, extending the service life of the hoist.
- Grade 80 Load Chain: Grade 80 black oxide coated load chain for durability and reliable load handling.
- Limit Switches: Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Sealed Gear Train: Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
- Thermal Overload Protection: Keeps the hoist from overheating during single-phase operation, protecting the motor and extending service life.
Specifications
- MPN: JT9-111500
- Load Capacity: 1 Ton
- Capacity (Lbs.): 2,200 lbs.
- Lift: 15 ft.
- Lifting Speed: 19 FPM
- Motor: 1-3/4 HP, 230V, 1 Ph
- Duty Cycle: 25%
- Duty Cycle Rating: H3
- Max. Number of Starts (Per Hr.): 150
- Max. On Time: 15 Min. / Hr.
- Load Chain: Grade 80 black oxide coated
- Control Voltage: 24V
- Prop 65: Cancer
- Country of Origin: China
Frequently Asked Questions
- What type of load chain does this hoist use, and why does it matter?
- This hoist is equipped with a Grade 80 black oxide coated load chain. Grade 80 chain is a high-strength standard widely used in industrial lifting, and the black oxide coating adds an additional layer of durability and resistance to wear.
- Does this hoist protect against over-traveling of the load chain?
- Yes. Upper and lower limiting switches increase safety by preventing the load chain from over traveling in either direction, helping to protect both the hoist and the load during operation.
- Does the gear train require regular lubrication or maintenance?
- No. The maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep, allowing the hoist to operate reliably without routine lubrication service.
- Is this hoist suitable for wet or corrosive environments?
- The push button control pendant is NEMA 4X compliant, offering protection against moisture, dust, and corrosion. The durable powder coat finish further protects the hoist body from environmental wear, making it well-suited for challenging industrial settings.
