Product Features
Product Description

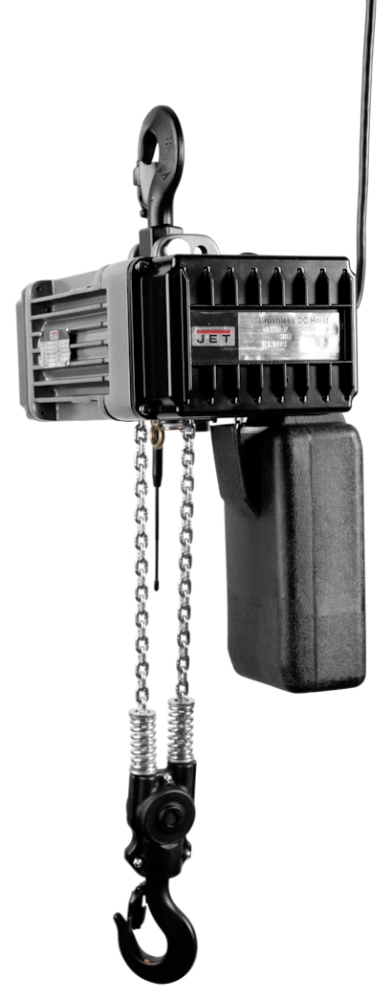

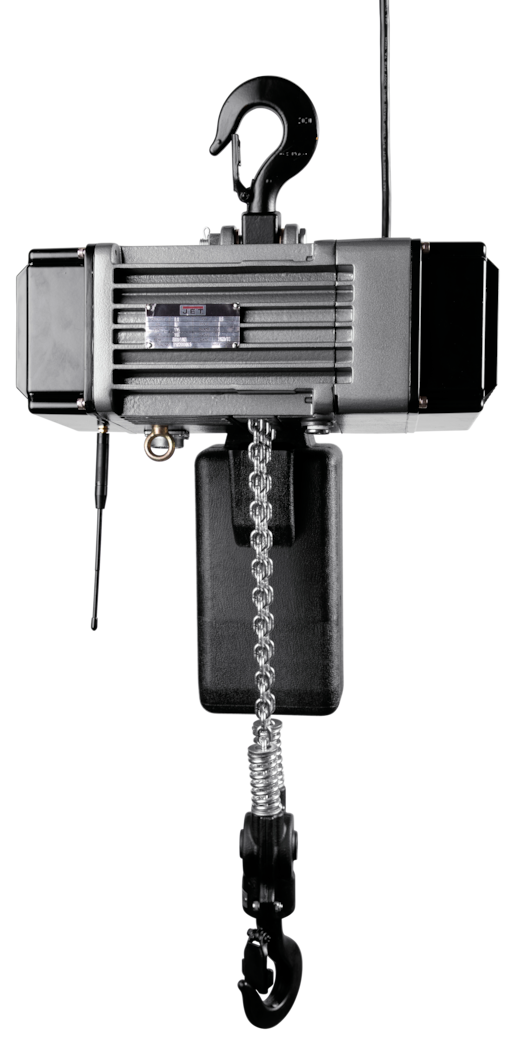

JET 1/8-Ton Electric Chain Hoist 1-Phase 10' Lift BLVS018-010 from JET combines safety, portability, and durability into a compact, lightweight hoist engineered for industrial, construction, and transportation applications. Powered by a DC Brushless Permanent Magnet motor with industry-leading low starting current, this 265-lb. capacity hoist delivers precise variable-speed lifting control through a market-leading wireless controller - all in a package designed to move with you from job to job.
Key Features

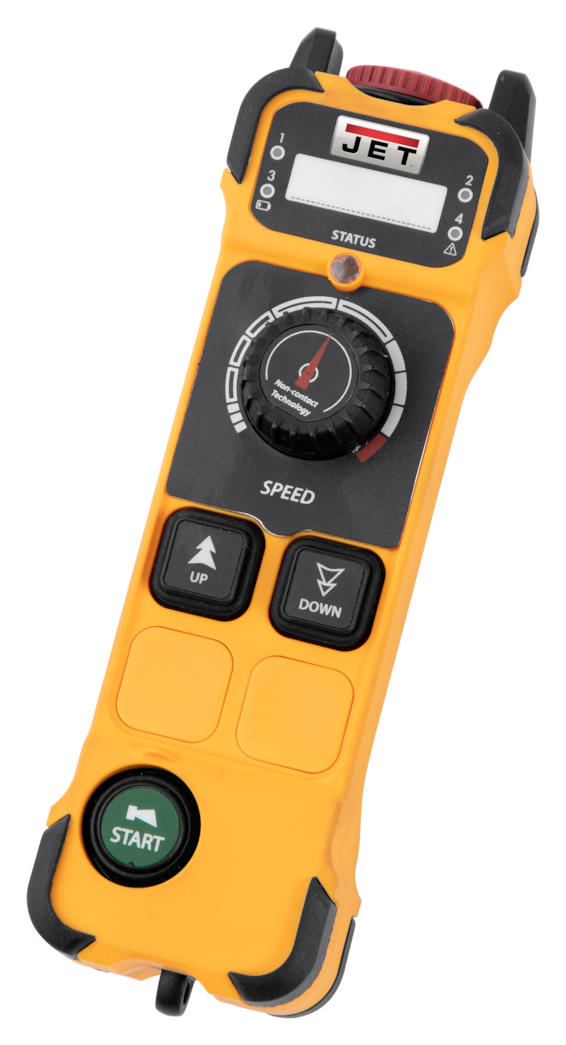

- Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
- TAA Approved
- Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp
- Overload protection using slip clutch system to protect hoist from loads over rated capacities
- Hoist carries a dust and moisture rating of IP-55 and the wireless transmitter IP-65 which means hoist can stay in the light rain and pendant is dust and water proof
- DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
- 30 / 7.5 Time ratings
- Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting

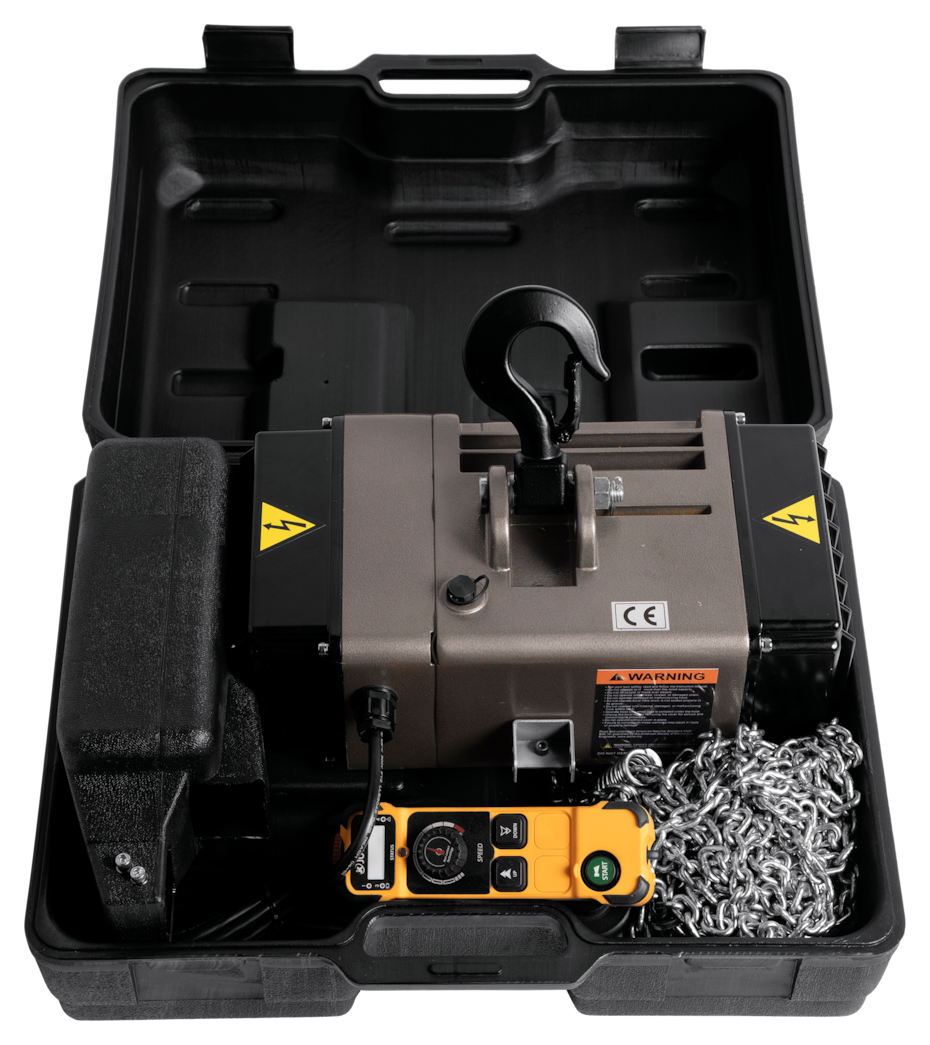

- 1/8 to 1/2 ton models come in plastic carry case for exceptional mobility
- Low noise at less than 75 dBA
Specifications
- MPN: JT9-104000
- Country of Origin: Taiwan
- Capacity: 265 lbs. (1/8 Ton)
- Lift: 10 ft.
- Lifting Speed: 0 - 15 / 41 FPM
- Motor: 0.4 HP, 120V, 1-Phase
- Motor Current: 6 Amps
- Duty Cycle: 30%
- Duty Cycle Rating: H3
- Max. Number of Starts (Per Hr.): 180
- Max. On Time: 15 Min. / Hr.
- Headroom: 15-3/4 in.
- Overall Width: 10-2/5 in.
- Weight: 36 lbs.
- IP Rating (Hoist): IP-55
- IP Rating (Wireless Transmitter): IP-65
- Noise Level: Less than 75 dBA
- Prop 65: Cancer and Reproductive Harm
What's Included
- JET BLVS018-010 Electric Chain Hoist
- Wireless Controller with variable speed dial
- Plastic carry case for exceptional mobility
Frequently Asked Questions
- What type of power supply does this hoist require?
- This hoist uses a single phase 120V plug, enabling use in all areas without the need for specialized three-phase power. The Permanent Magnet Brushless Motor requires a starting current of just 10 amps - the lowest required starting current available.
- How does the wireless controller work, and what speeds are available?
- The included Wireless Controller can infinitely adjust speed from creep to 4ft/min using the speed dial, with a maximum high speed of 41ft/min. The electronic controls also feature 10 failure codes displayed on the wireless pendant to assist with troubleshooting.
- Is this hoist protected against overloads, dust, and moisture?
- Yes. The hoist uses a slip clutch system for overload protection to protect the hoist from loads over rated capacities. The hoist body carries a dust and moisture rating of IP-55, meaning it can remain in light rain, while the wireless transmitter is rated IP-65, making it dust and water proof.
- Is this hoist portable, and is it TAA compliant?
- Yes on both counts. The 1/8-ton model comes in a plastic carry case for exceptional mobility, making it easy to transport from job to job. It is also TAA Approved, meeting Trade Agreements Act compliance requirements.
