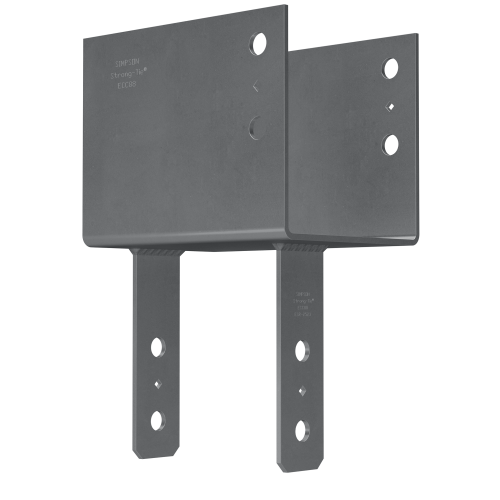

The Simpson Strong-Tie ECC94 End Column Cap is an engineered steel connector designed to provide strong, reliable column-to-beam connections in end-of-beam applications for wood construction. The seat of the column cap extends beyond one side of the column, delivering additional bearing surface area to effectively distribute load from the beam and provide secure, stable support at the connection point. Built to meet demanding structural requirements, the ECC94 is suited for applications where uplift resistance and code-compliant bolt spacing are critical priorities.

Key Features

• Certified welds for confidence in strength and loading
• Uplift loads increased for earthquake or wind loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening
• Seat design extends beyond one side of the column for additional bearing surface area
• Distributes load from the beam to provide enhanced connection support

Specifications

• Model Number: ECC94
• Description: 8-3/4" Beam, 4X Post End Column Cap
• Material: 3 gauge steel
• Finish: Simpson Strong-Tie gray paint
• Fasteners Required - Beam: 3/4" Machine Bolts (4)
• Fasteners Required - Post: 3/4" Machine Bolts (2)
• Country of Origin: United States

Approved Applications

• End-of-beam column-to-beam connections in wood construction
• Structural connections requiring increased uplift resistance for earthquake loading
• Structural connections requiring increased uplift resistance for wind loading
• Applications demanding NDS code-compliant bolt spacing for optimal structural performance

What's Included

• 1x Simpson Strong-Tie ECC94 End Column Cap
• Note: Fasteners (3/4" Machine Bolts) are required but not included - 4 for beam, 2 for post

• Contact us for Configurable Options and Special orders
• Straps may be rotated 90 deg. (see SPECS)
• For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Note: Product dimensions may differ from picture.

Frequently Asked Questions

What size beam and post is the ECC94 designed to work with?

The ECC94 is designed for use with an 8-3/4" beam and a 4X post, making it suitable for end-of-beam column-to-beam connections in wood construction applications requiring those specific dimensions.

What fasteners are required to install the ECC94?

Installation requires 3/4" machine bolts - four bolts for the beam connection and two bolts for the post connection.

Is the ECC94 suitable for use in areas prone to earthquakes or high winds?

Yes. The ECC94 features increased uplift load capacity specifically designed for earthquake and wind loading conditions, making it appropriate for structural connections in regions where these forces are a concern.

What material and finish is the ECC94 made from?

The ECC94 is constructed from 3 gauge steel and finished with Simpson Strong-Tie gray paint. It features certified welds to ensure strength and reliable load performance at the connection point.
