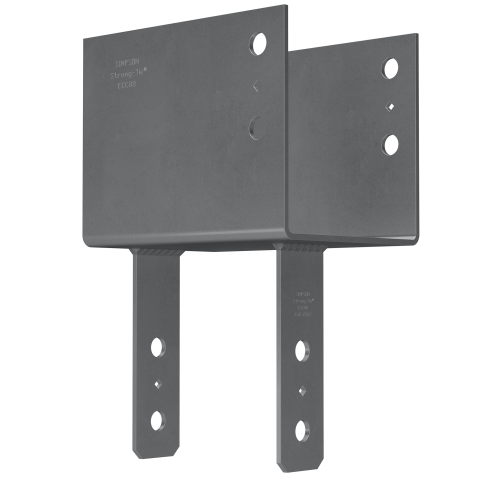

The Simpson Strong-Tie ECC4.62-5.50 is an end column cap engineered to deliver strong, reliable column-to-beam connections in end-of-beam wood construction applications. Designed for use with a triple 2X beam and a 6X post, the ECC features a seat that provides additional bearing surface area extending beyond one side of the column, helping to effectively distribute load from the beam and provide solid support throughout the connection. Built from heavy-duty 7-gauge steel with Simpson Strong-Tie gray paint finish, this end column cap is a trusted solution for demanding structural applications where performance and code compliance are essential.

Key Features

• Certified welds for confidence in strength and loading performance
• Increased uplift loads to address earthquake or wind loading conditions
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening during installation
• Extended seat bearing surface distributes load effectively beyond one side of the column
• Constructed from 7-gauge steel for heavy-duty structural integrity
• Finished with Simpson Strong-Tie gray paint for durability

Specifications

• Model Number: ECC4.62-5.50
• Description: Triple 2X Beam, 6X Post End Column Cap
• Material: 7 gauge steel
• Finish: Simpson Strong-Tie gray paint
• Fasteners Required - Beam: 5/8" Machine Bolts (2)
• Fasteners Required - Post: 5/8" Machine Bolts (2)
• Country of Origin: United States

Approved Applications

• End-of-beam column-to-beam connections in wood construction
• Structural connections requiring enhanced load distribution from beam to post
• Applications subject to earthquake or wind uplift loading
• Wood frame construction requiring NDS code-compliant bolt spacing

What's Included

• 1x Simpson Strong-Tie ECC4.62-5.50 End Column Cap
• Note: 5/8" machine bolts (beam: 2, post: 2) are required but not included

Options

• Contact us for Configurable Options and Special orders
• Straps may be rotated 90 deg. (see SPECS)
• For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Frequently Asked Questions

What beam and post sizes is the ECC4.62-5.50 designed to work with?

The ECC4.62-5.50 is specifically designed for use with a triple 2X beam and a 6X post, making it suited for end-of-beam column-to-beam connection applications.

What fasteners are required to install this end column cap?

Installation requires 5/8" machine bolts - two for the beam connection and two for the post connection.

What material and finish is used on the ECC4.62-5.50?

This end column cap is constructed from heavy-duty 7-gauge steel and finished with Simpson Strong-Tie gray paint for durability in structural applications.

What features does the ECC4.62-5.50 include to assist with installation and structural performance?

The connector includes diamond holes for temporary fastening during installation, certified welds for strength and loading confidence, increased uplift load capacity to address earthquake or wind loading conditions, bolt spacing that meets NDS code requirements, and an extended seat bearing surface that distributes load effectively beyond one side of the column.
