Product Description

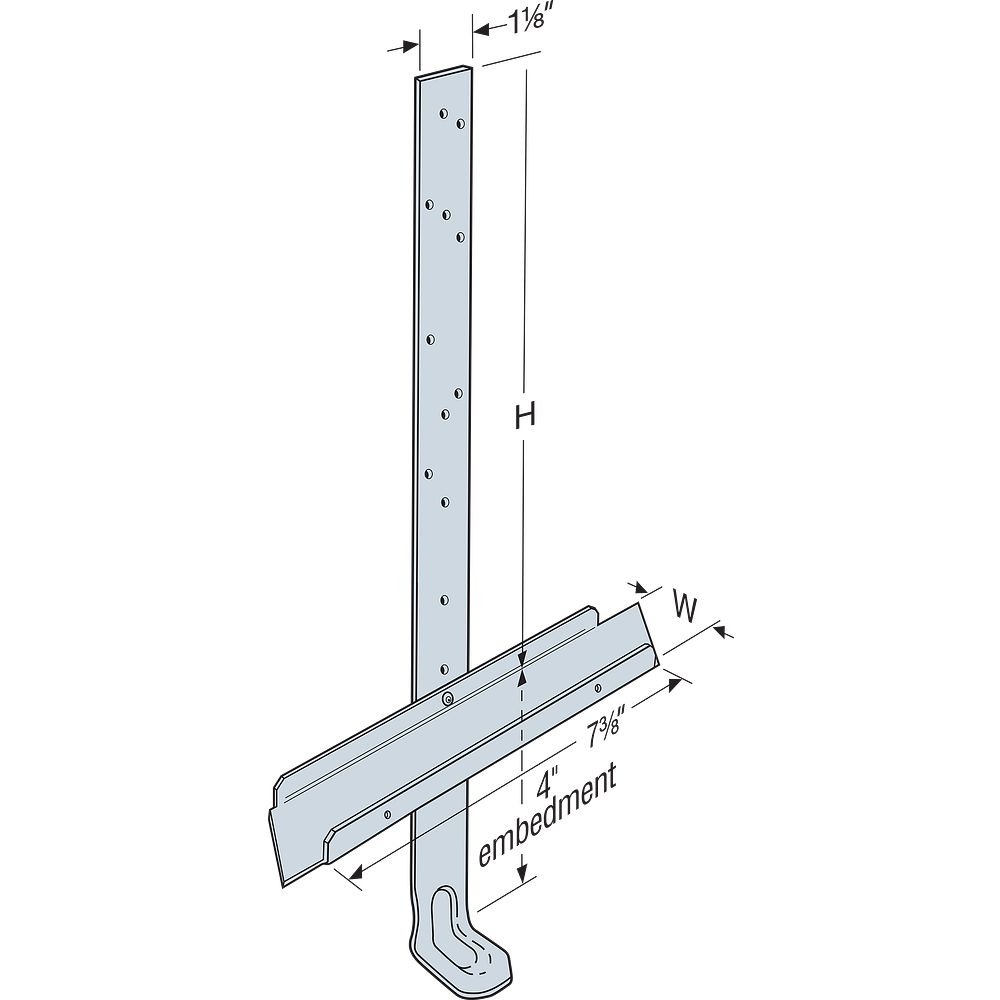

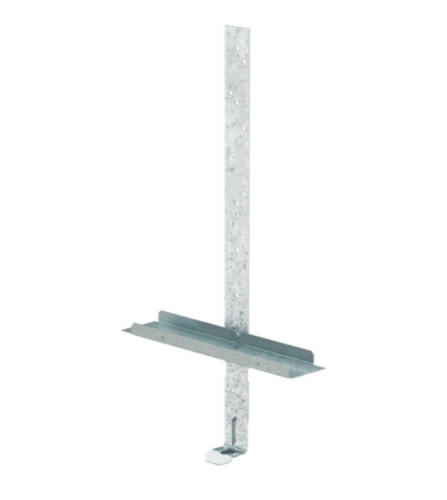

The Simpson META20/TSS2 META 20-in. Galvanized Embedded Truss Anchor w/ TSS2 Truss Seat Snap-In by Simpson Strong-Tie provides an engineered method to attach roof trusses securely to concrete and masonry walls. This medium embedded truss anchor features a 16-in. exposed length with a 4-in. embed depth and is designed to deliver exceptional uplift resistance in both wind and seismic conditions. Engineered and tested to perform, and manufactured to the highest quality standards, the META20/TSS2 makes projects easier to build while making them stronger and safer.
Key Features
- Indented embedment line ensures accurate embedment depth
- Load rated for wind and seismic forces
- 16-in. exposed length
- Embed 4 in. into a 6-in. minimum concrete beam or 8-in. nominal grouted block wall
- META20 made from 18-gauge steel; TSS2 made from 22-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Includes 1-3/4 in. width TSS2 truss seat snap-in
- The TSS2 moisture barrier may be preattached to the truss using 0.113-in. x 2-in. nails
- Staggered nail patterns strengthen uplift resistance
- Can be used in pairs on single- and multi-ply trusses
- Versatile design - can be installed straight or field-bent around truss or rafter members
Specifications
- MPN: META20/TSS2
- Brand: Simpson Strong-Tie
- Exposed Length: 16 in.
- Embed Depth: 4 in.
- Gauge (META20): 18-gauge steel
- Gauge (TSS2): 22-gauge steel
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- TSS2 Seat Width: 1-3/4 in.
- Minimum Concrete Beam: 6-in. minimum concrete beam
- Minimum Grouted Block Wall: 8-in. nominal grouted block wall
- Install With: 0.148 in. x 1-1/2 in. nails
- TSS2 Preattachment Fasteners: 0.113-in. x 2-in. nails
- Country of Origin: United States
What's Included
Each pack contains (1) Embed Truss Anchors, model TSS2 truss seat snap-in.
Frequently Asked Questions
- How deep does the META20/TSS2 need to be embedded?
- The META20/TSS2 must be embedded 4 in. into either a 6-in. minimum concrete beam or an 8-in. nominal grouted block wall. The indented embedment line on the anchor helps ensure accurate embedment depth during installation.
- Can the META20/TSS2 be used with both single- and multi-ply trusses?
- Yes. The META20/TSS2 can be used in pairs on both single- and multi-ply trusses. Its versatile design also allows it to be installed straight or field-bent around truss or rafter members to suit your specific application.
- What fasteners are required to install the META20/TSS2?
- The META20/TSS2 should be installed with 0.148 in. x 1-1/2 in. nails. Additionally, the TSS2 moisture barrier snap-in may be preattached to the truss using 0.113-in. x 2-in. nails.
- Is the META20/TSS2 rated for wind and seismic conditions?
- Yes. The META20/TSS2 is load rated for both wind and seismic forces. Its staggered nail pattern further strengthens uplift resistance, making it well-suited for installations in demanding structural environments.
