Product Description

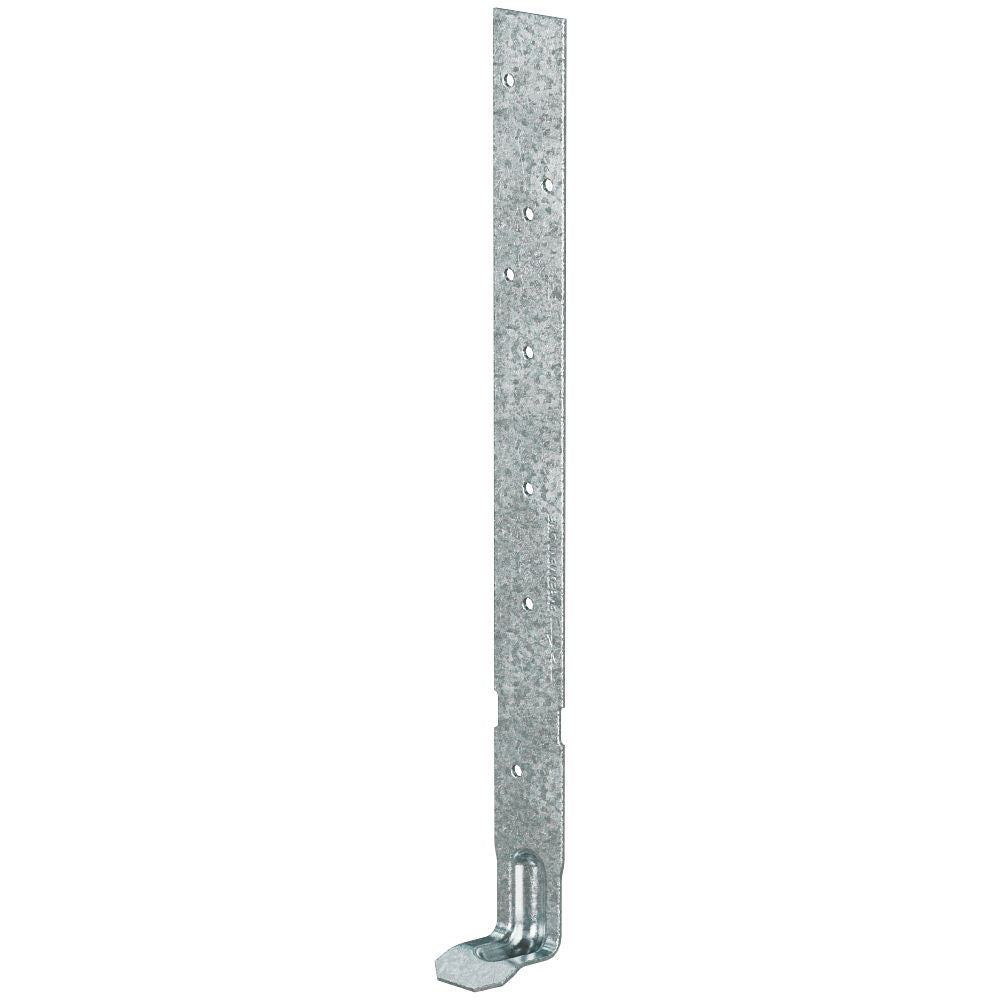

The Simpson Heavy Embedded Truss Anchor delivers an engineered solution for connecting roof trusses securely to concrete and masonry walls. Built from 16-gauge steel with a G90 galvanized finish, this heavy-duty truss anchor is load rated for wind and seismic forces, making it a dependable choice for residential and commercial roof framing where structural performance is critical. The anchor installs straight or can be field-bent around truss or rafter members, and its staggered nail patterns work to strengthen uplift resistance across a range of single- and multi-ply truss configurations.
Key Features
- Indented embedment line - takes the guesswork out of installation by marking the precise embed depth directly on the anchor, reducing errors in the field
- Compatible with the Simpson Strong-Tie preassembled TSS snap-in seat - simplifies truss seating during installation, saving time on the job site
- Load rated for wind and seismic forces - gives builders and inspectors confidence that the connection meets structural performance requirements in demanding conditions
- 20-in. exposed length - provides adequate reach to make a secure connection to the truss or rafter member above the wall line

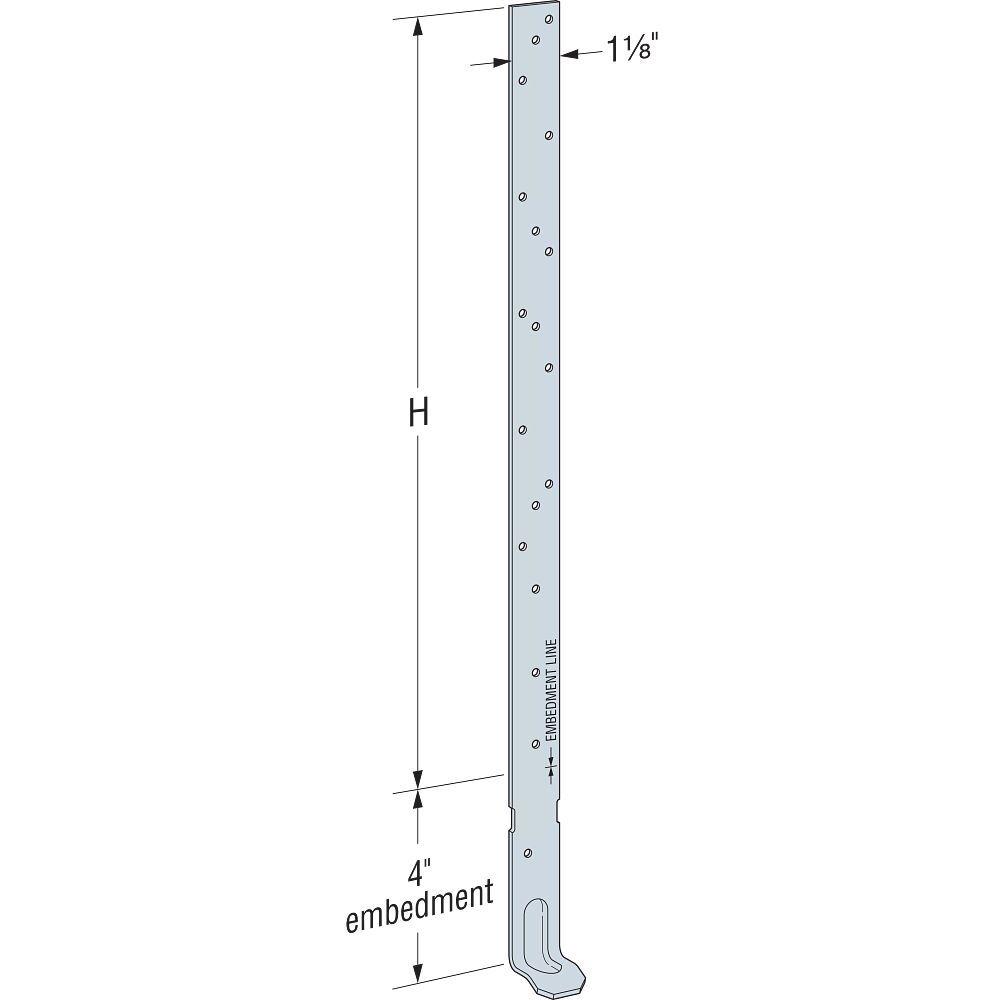

- Embeds 4 in. into a poured concrete bond beam or grouted block wall - creates a solid anchor point that ties the roof structure directly into the wall system
- 16-gauge steel construction - delivers the heavy-duty strength needed for structural roof-to-wall connections subject to high uplift loads
- Galvanized G90 finish - provides extra corrosion resistance to extend service life in exposed or moisture-prone construction environments
- Can be installed straight or field-bent - offers the flexibility to accommodate varying framing conditions without requiring additional hardware or custom fabrication
- Compatible with single- and multi-ply trusses when used in pairs - makes this anchor a versatile option across a wide range of roof framing applications
Why This Product
- Engineered for code-critical connections - the HETA24 is load rated for both wind and seismic forces, making it suitable for projects where verified uplift resistance and structural compliance are non-negotiable
- Built-in accuracy for faster, cleaner installs - the indented embedment line removes guesswork at the wall, helping crews embed the anchor at the correct depth consistently without measuring each piece individually
- Flexible enough to handle real-world framing conditions - the ability to install straight or field-bend around truss or rafter members means this anchor adapts to the job rather than requiring the job to adapt to it
- Trusted Simpson engineering with compatible system components - designed to work with the Simpson Strong-Tie preassembled TSS snap-in seat, this anchor fits into a broader system of coordinated connectors rather than functioning as a standalone part
Specifications
- MPN: HETA24
- Gauge: 16
- Exposed Length: 20 in.
- Embed Depth: 4 in.
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: Install with 10d x 1-1/2 in. nails or 16d common nails
- Country of Origin: United States
Downloads and Resources
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
Where is the HETA24 designed to be embedded?
The HETA24 is designed to embed 4 inches into a poured concrete bond beam or a grouted block wall, providing a secure anchor point for roof trusses on concrete and masonry wall construction.
Can the HETA24 be used on multi-ply trusses?
Yes. The HETA24 can be used in pairs on both single- and multi-ply trusses, making it a versatile solution for a range of roof truss configurations.
What nails are recommended for installing the HETA24?
The HETA24 should be installed with 10d x 1-1/2 in. nails or 16d common nails to ensure proper load transfer and connection performance.
Can the HETA24 be field-bent during installation?
Yes. The HETA24 is versatile enough to be installed straight or field-bent around truss or rafter members, allowing for flexibility to accommodate various framing conditions on the job site.
