The Simpson PWKIT40T T40 Offset Driver-Bit Kit from Simpson Strong-Tie is a premium replacement accessory kit engineered to support accurate, efficient installations using the Strong-Drive SDPW DEFLECTOR Screw. Designed specifically for installing 6-in. SDPW Deflector screws, this kit provides the precision tooling needed to connect non-load-bearing walls to trusses and joists with confidence. Each kit includes two T40 offset driver bits and one 3/8-in. quick-release predrill bit, delivering a complete solution for both predrilling and driving operations in a single package.

Key Features

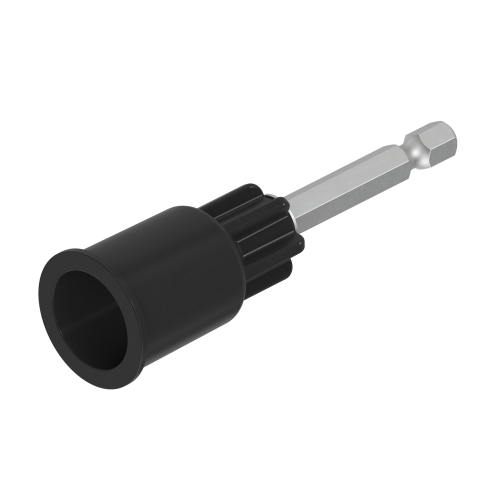

• T40 offset driver bit kit is for installing 6-in. SDPW Deflector screws
• Can be set to provide either a 3/4-in. offset from screw head to wood surface or to drive screw flush with wood surface
• 3/8-in. x 5-in. quick-release predrill bit is ideal for predrilling top plates prior to SDPW Deflector screw installation
• 3/8-in. quick-release predrill bit fits most driver motors
• Designed for use with the SDPW Deflector screw bit extension, model PW18EXT (sold separately)

Specifications

• Model Number: PWKIT40T
• Brand: Simpson Strong-Tie
• Driver Bit Type: T40 Offset
• Material: Carbon Steel
• Country of Origin: Taiwan

Approved Applications

• Deflection - connecting non-load-bearing walls to trusses and joists using the Strong-Drive SDPW Deflector screw

What's Included

• (2) T40 offset driver bits
• (1) 3/8-in. quick-release predrill bit

Frequently Asked Questions

What screw is the PWKIT40T specifically designed to install?

The PWKIT40T T40 Offset Driver-Bit Kit is specifically designed for installing 6-in. SDPW Deflector screws from Simpson Strong-Tie.

Can the offset driver bits accommodate different driving depths?

Yes. The T40 offset driver bits can be set to provide either a 3/4-in. offset from the screw head to the wood surface, or adjusted to drive the screw flush with the wood surface, giving installers flexibility depending on the application requirements.

Will the included predrill bit work with standard driver motors?

Yes. The included 3/8-in. x 5-in. quick-release predrill bit is designed to fit most driver motors, making it a versatile choice for predrilling top plates prior to SDPW Deflector screw installation.

Is a bit extension required, and is it included in this kit?

The PWKIT40T is designed for use with the SDPW Deflector screw bit extension, model PW18EXT. However, the bit extension is sold separately and is not included in this kit.
