Freud 9 mm Through Hole Bit (TH90070R) is an industrial-grade carbide tipped boring bit engineered for precision through-hole drilling in woodworking and fabrication applications. With a 9 mm cutting diameter and a 70 mm overall length, this bit is built to deliver accurate hole location and consistent performance on automatic and manual multi-spindle boring machines, drill presses, and hand held drills. The 60 deg. point geometry guides the bit precisely into position, while the 10 mm shank with an adjustable top screw ensures broad compatibility with most boring machines. Whether you are drilling hardwoods, softwoods, veneered plywood, composites, or solid surface materials, this Freud boring bit provides the durability and repeatability that production woodworking demands.

Key Features

• Industrial carbide tips - provide superior hardness and wear resistance, extending tool life significantly compared to standard high-speed steel bits for demanding production environments.
• 60 deg. point angle - ensures accurate hole location for through holes, reducing wandering and delivering cleaner, more precise entry points in every material.
• 10 mm shank with adjustable top screw - allows compatibility with most boring machines including multi-spindle setups, reducing the need for additional adapters or tooling.
• Right Hand (RH) rotation - matches the standard drive direction of drill presses, hand held drills, and multi-spindle boring machines, making this bit a straightforward drop-in tool.
• 70 mm overall length with a 35 mm maximum hole depth - provides the reach needed for complete through-hole drilling in typical panel and cabinet stock thicknesses.
• Designed for superior performance and maximum life - means less frequent bit replacement, reducing downtime and tooling costs in high-volume production settings.
• Freud Limited Lifetime Guarantee - backs the bit against defects, giving buyers long-term confidence in their tooling investment.

Why This Product

• Engineered specifically for multi-spindle boring machines, this 9 mm through hole bit integrates seamlessly into production line setups where speed, accuracy, and repeatability are critical requirements.
• The industrial carbide tip construction means this bit can handle a wide range of materials - from delicate veneered plywood and solid surface panels to dense hardwoods and composite sheets - without requiring separate specialty bits for each substrate.
• The 60 deg. point is purpose-built for through-hole applications, providing a reliable self-locating entry that minimizes setup time and reduces the chance of off-center holes in high-output operations.
• Backed by the Freud Limited Lifetime Guarantee, this boring bit represents a lasting tooling solution rather than a disposable consumable, making it a cost-effective choice for shops that run boring operations regularly.

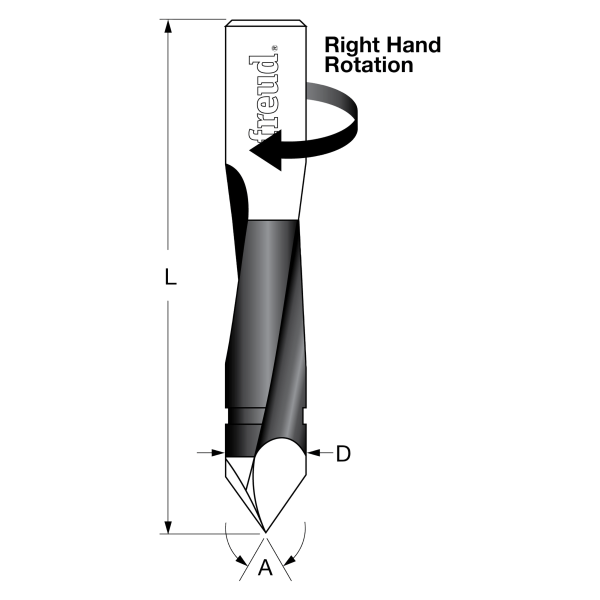

Specifications

• Brand: Freud
• MPN: TH90070R
• Category: Through Hole Bits
• Diameter: 9 mm
• Length: 70 mm
• Shank: 10 mm
• Angle: 60 deg.
• Maximum Hole Depth: 35 mm
• Rotation: RH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic and manual multi-spindle boring machines.

Frequently Asked Questions

What machines is the Freud TH90070R compatible with?

This through hole bit is designed for multiple spindle machines and is also compatible with drill presses and hand held drills. The 10 mm shank features an adjustable top screw that makes it compatible with most boring machines used in woodworking production.

What materials can be drilled with this 9 mm through hole bit?

The Freud TH90070R is suited for drilling composites, solid surface materials, veneered plywood, hardwoods, and softwoods - covering the full range of panel and board materials commonly used in cabinetry and furniture production.

What is the maximum hole depth this bit can achieve?

The maximum hole depth for the Freud TH90070R is 35 mm. With a 70 mm overall length and a 60 deg. point, it is optimized for accurate through-hole drilling within that depth range.

Does this boring bit come with any warranty coverage?

Yes. The Freud TH90070R is covered by the Freud Limited Lifetime Guarantee, providing long-term assurance on the quality and performance of the bit.
