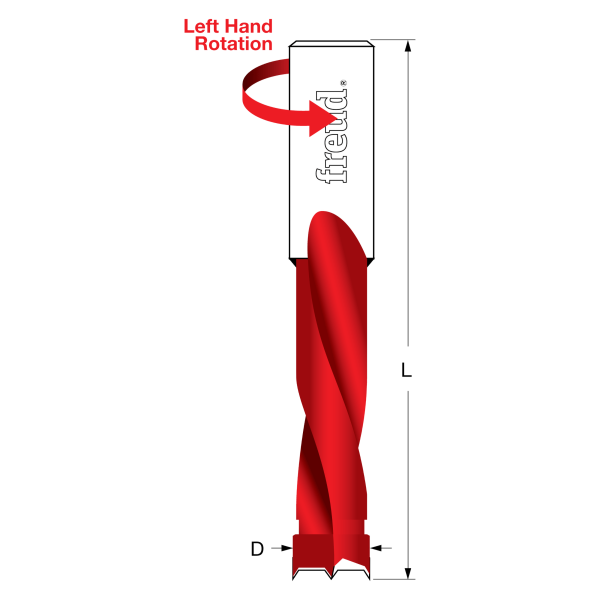

The Freud 8 mm Brad Point Bit (BP80057L) is an industrial-grade carbide tipped boring bit engineered for precision hole drilling on automatic and manual multi-spindle boring machines. Built for professional woodworking and panel processing applications, this left-hand rotation bit cuts cleanly through composites, solid surface materials, veneered plywood, hardwoods, and softwoods - delivering repeatable accuracy and extended tool life even under heavy production demands.

Key Features

• Industrial carbide tips - provide exceptional hardness and wear resistance, extending bit life significantly compared to standard high-speed steel tooling in production environments
• Left-hand rotation (LH) - engineered specifically for multi-spindle boring machines that require counter-clockwise tooling, ensuring proper chip ejection and clean entry holes
• 10 mm shank with adjustable top screw - makes this bit compatible with most boring machines on the market, reducing the need for adapters or specialty tooling
• 8 mm cutting diameter with 57.5 mm overall length - sized precisely for common hardware boring applications such as shelf pin holes, hinge pockets, and connector bores in cabinet and furniture production
• Maximum hole depth of 27 mm - deep enough for standard through-shelf-pin and dowel-depth boring in panel goods without over-penetrating workpiece material
• Freud Limited Lifetime Guarantee - backs the bit against manufacturing defects, giving buyers long-term confidence in their tooling investment
• Made in Italy - reflects Freud's precision European manufacturing standards for professional-grade routing and boring tools

Why This Product

• Purpose-built for multi-spindle boring machines - if your shop runs automatic or manual gang boring equipment, this bit is designed from the ground up for that application, not adapted from a general-purpose drill
• Carbide tipped construction means fewer tool changes and less downtime during production runs through dense hardwoods, veneered panels, and composite sheet goods
• The left-hand rotation designation matters - using the wrong rotation direction on a multi-spindle machine causes tearout and poor hole quality; this bit is correctly specified for LH spindle positions
• The adjustable top screw on the 10 mm shank allows quick depth and height adjustments directly on the machine, streamlining setup time when switching between workpiece thicknesses or boring patterns

Specifications

• Brand: Freud
• Manufacturer Part Number: BP80057L
• Category: Brad Point Bits
• Diameter: 8 mm
• Length: 57.5 mm
• Shank: 10 mm
• Maximum Hole Depth: 27 mm
• Rotation: LH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic or manual multi-spindle boring machines.

Frequently Asked Questions

What machines is the Freud BP80057L compatible with?

This brad point boring bit is designed for multiple spindle machines, including both automatic and manual multi-spindle boring machines. It features a 10 mm shank with an adjustable top screw that makes it compatible with most boring machines. It can also be used with a drill press or hand held drill.

Why does this bit use left-hand rotation, and does it matter?

Yes, rotation direction matters significantly in multi-spindle boring setups. The BP80057L is a left-hand (LH) rotation bit, meaning it spins counter-clockwise. Multi-spindle boring machines are configured with spindles rotating in specific directions depending on their position. Using a bit with the correct rotation for your machine's LH spindles ensures clean hole entry, proper chip clearing, and accurate bore geometry.

What materials can this 8 mm brad point bit drill through?

The Freud BP80057L is designed to drill through composites, solid surface materials, veneered plywood, hardwoods, and softwoods. The industrial carbide tips make it capable of handling both the abrasive nature of composite and solid surface panels and the density variations found in hardwoods - all without sacrificing hole quality or bit longevity.

What does the Freud Limited Lifetime Guarantee cover for this bit?

Freud backs the BP80057L with a Limited Lifetime Guarantee. This warranty reflects the brand's confidence in the industrial carbide tip construction and overall manufacturing quality of the bit. For specific terms and conditions of the guarantee, contact Freud directly for full details.
