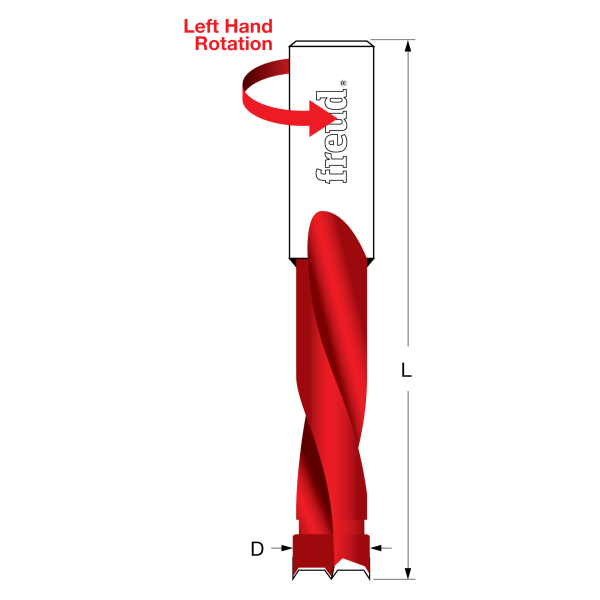

The Freud 5.1 mm Brad Point Bit is an industrial-grade carbide tipped boring bit engineered for professional woodworking operations that demand precision, durability, and consistent results. Designed for use on multiple spindle boring machines - both automatic and manual - this bit cuts cleanly through composites, solid surface materials, veneered plywood, hardwoods, and softwoods with exceptional accuracy. The 10 mm shank features an adjustable top screw, making it compatible with most boring machines on the market. Left-hand rotation and a 70 mm overall length with a maximum hole depth of 35 mm make this bit a reliable choice for cabinet makers, furniture manufacturers, and woodworking shops that rely on multi-spindle drilling equipment.

Key Features

• Industrial carbide tips - deliver long-lasting cutting performance and resistance to wear, reducing the need for frequent bit replacement in high-volume production environments.
• Left-hand (LH) rotation - specifically engineered for multi-spindle boring machines that operate with left-hand rotation spindles, ensuring proper chip ejection and clean bore entry.
• 10 mm shank with adjustable top screw - provides broad compatibility with most boring machines, allowing fast and secure tool changes without specialized adapters.
• 70 mm overall length with 35 mm maximum hole depth - gives operators the reach needed for typical cabinet and furniture boring applications while maintaining bit rigidity and accuracy.
• 5.1 mm cutting diameter - precisely sized for dowel holes, shelf pin bores, and other standard woodworking joinery applications that require exacting tolerances.
• Freud Limited Lifetime Guarantee - backs the bit against defects, giving buyers confidence in the long-term value of their investment.
• Compatible with drill press and hand held drill - offers flexibility across different tool setups beyond dedicated boring machines, adding versatility to the shop floor.

Why This Product

• Carbide tipped construction means this bit holds its edge through repetitive production runs across hardwoods, softwoods, and engineered materials - reducing downtime and tooling costs in high-throughput woodworking operations.
• The 10 mm shank with an adjustable top screw makes this bit a drop-in replacement for most existing multi-spindle boring machine setups, eliminating costly machine modifications or custom adapters.
• Left-hand rotation is purpose-built for the spindle direction used on most horizontal boring machines, ensuring clean entry cuts and smooth chip clearance rather than the tear-out associated with mismatched rotation.
• Backed by Freud's Limited Lifetime Guarantee, this bit represents a long-term tooling solution for shops that need consistent 5.1 mm bores across composites, solid surfaces, and wood panels day after day.

Specifications

• Brand: Freud
• Model Number: BP51070L
• Diameter: 5.1 mm
• Length: 70 mm
• Shank: 10 mm
• Maximum Hole Depth: 35 mm
• Rotation: LH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Category: Brad Point Bits
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic or manual multi-spindle boring machines.

Frequently Asked Questions

What machines is the Freud BP51070L compatible with?

This brad point boring bit is designed for multiple spindle boring machines - both automatic and manual. The 10 mm shank includes an adjustable top screw that makes it compatible with most boring machines. It is also suitable for use in a drill press or hand held drill.

Why does this bit use left-hand rotation?

The LH (left-hand) rotation on the BP51070L is specifically intended for multi-spindle boring machines that operate spindles in a left-hand direction. Using a bit matched to the machine's rotation direction ensures proper cutting action, cleaner holes, and effective chip removal.

What materials can this brad point bit drill through?

The Freud BP51070L is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods. The industrial carbide tip construction allows it to handle a wide range of wood and engineered wood products in production boring applications.

What is the maximum hole depth this bit can achieve?

The BP51070L has a maximum hole depth of 35 mm. The overall bit length is 70 mm, with a 5.1 mm cutting diameter and a 10 mm shank. These dimensions are designed for standard cabinet and furniture boring applications on multi-spindle machines.
