The Freud 5 mm Through Hole Bit is an industrial carbide tipped boring bit engineered for precision drilling on multiple spindle machines, including both automatic and manual multi-spindle boring machines. Designed to drill clean through holes in hardwoods, softwoods, veneered plywood, solid surface materials, and composites, this 5 mm diameter bit delivers reliable hole location accuracy thanks to its 60 deg. point geometry. With a 70 mm overall length and a 10 mm shank fitted with an adjustable top screw, it integrates smoothly with most boring machines as well as drill presses and hand held drills. Backed by Freud's Limited Lifetime Guarantee, this right-hand rotation bit is a dependable choice for cabinet shops and woodworking operations that demand consistent performance and extended tool life.

Key Features

• Industrial carbide tips - deliver superior cutting performance and maximum service life, reducing the need for frequent bit replacement in high-volume boring operations
• 60 deg. point geometry - provides accurate hole location for through holes, minimizing wandering and ensuring precise, repeatable results across multiple workpieces
• 10 mm shank with adjustable top screw - makes the bit compatible with most boring machines, simplifying setup and reducing downtime when switching between jobs
• Right-hand rotation (RH) - matches the standard spindle direction of most multi-spindle boring machines and drill presses, ensuring safe and efficient cutting
• 5 mm diameter with a maximum hole depth of 35 mm - suited for through hole applications in panels and boards where controlled, consistent depth is critical
• Freud's Limited Lifetime Guarantee - provides long-term assurance of quality, giving buyers confidence in the durability and reliability of the tool

Why This Product

• Purpose-built for multi-spindle boring machines - whether automatic or manual, this bit's 10 mm shank and adjustable top screw design means it fits most boring machine setups without modification, saving time and effort on the shop floor
• Handles a broad range of wood-based and engineered materials - from softwoods and hardwoods to veneered plywood, solid surface, and composite panels, this one bit covers the variety of substrates common in cabinetry and furniture production
• Carbide tipped construction means longer intervals between replacements - for production environments where boring bits see constant use, the industrial carbide tips translate directly into lower tooling costs over time
• The 60 deg. point angle is specifically chosen for through hole accuracy - through holes drilled for shelf pins, dowels, or system holes require precise location, and this geometry reduces the chance of tear-out or misalignment at entry

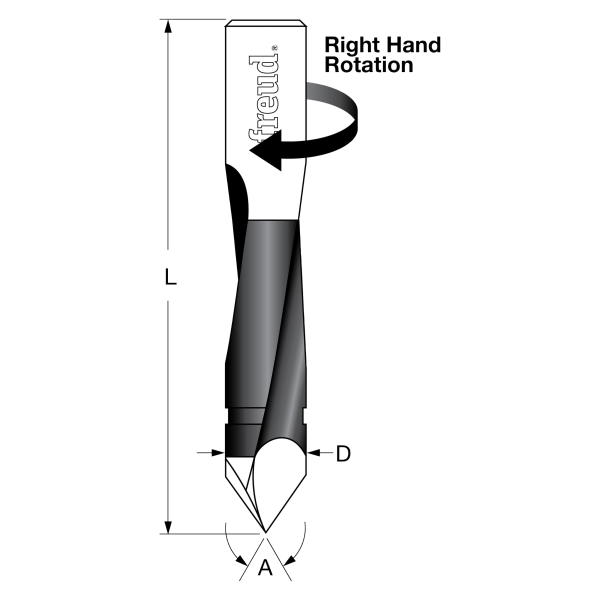

Specifications

• Brand: Freud
• Manufacturer Part Number: TH50070R
• Category: Through Hole Bits
• Diameter: 5 mm
• Length: 70 mm
• Shank: 10 mm
• Angle: 60 deg.
• Maximum Hole Depth: 35 mm
• Rotation: RH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic and manual multi-spindle boring machines
• Through hole drilling for shelf pin holes, dowel holes, and system holes in cabinet and furniture panel production
• Use with drill presses and hand held drills when a multi-spindle machine is not available

Frequently Asked Questions

What machines is the Freud TH50070R compatible with?

This through hole boring bit is designed for use on multiple spindle boring machines, both automatic and manual. It is also compatible with drill presses and hand held drills. The 10 mm shank with an adjustable top screw makes it compatible with most boring machines.

What is the significance of the 60 deg. point angle on this bit?

The 60 deg. point angle is specifically designed for accurate hole location when drilling through holes. It helps guide the bit precisely into the workpiece, reducing wandering at the entry point and supporting cleaner, more consistent results across repeated drilling cycles.

What materials can the Freud 5 mm Through Hole Bit drill through?

This bit is rated for drilling composites, solid surface materials, veneered plywood, hardwoods, and softwoods - covering the full range of sheet goods and solid wood panels commonly used in cabinet and furniture manufacturing.

What is the maximum hole depth this bit can achieve?

The Freud TH50070R has a maximum hole depth of 35 mm. With an overall length of 70 mm and a 5 mm diameter, it is suited for through hole applications in panels and boards within that depth range.
