The Freud 5 mm (Dia.) Through Hole Bit is an industrial-grade carbide-tipped boring bit engineered for precision drilling on multiple spindle machines. With a 10 mm shank, 60 deg. point angle, and left-hand rotation, this bit delivers accurate hole location and clean, repeatable through holes in a wide range of wood-based and composite materials. Whether you are running an automatic multi-spindle boring machine or working with a drill press, this Freud boring bit is built to handle demanding production environments while maintaining consistent performance across every use.

Key Features

• Industrial carbide tips - provide long-lasting cutting performance, reducing the frequency of bit replacement even in high-volume production settings.
• 60 deg. point angle - ensures accurate hole location for through holes, minimizing drift and delivering precise, repeatable results.
• 10 mm shank with adjustable top screw - makes this bit compatible with most boring machines, simplifying setup and reducing downtime during changeovers.
• Left-hand (LH) rotation - specifically designed for left-hand spindle configurations, ensuring proper chip evacuation and clean bore walls on compatible machines.

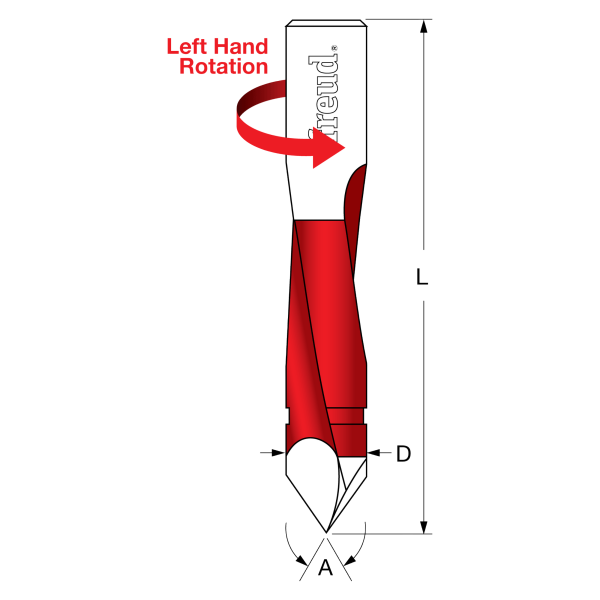

• 5 mm diameter with 57.5 mm overall length and 27 mm maximum hole depth - sized for through-hole applications in cabinetry, furniture, and panel fabrication where precise depth control matters.
• Freud Limited Lifetime Guarantee - backs every bit with manufacturer quality assurance, giving buyers confidence in long-term performance and value.

Why This Product

• Designed specifically for multiple spindle boring machines with a 10 mm shank and adjustable top screw, this bit fits most existing machine setups without requiring special adapters or modifications.
• The 60 deg. point angle makes it especially well-suited for through-hole drilling where entry accuracy is critical, reducing tearout and off-center starts in hardwoods, softwoods, veneered plywood, solid surface, and composites.
• Industrial carbide tipping means this bit is built for superior performance and maximum tool life, making it a cost-effective choice for shops that run high volumes of drilling operations on cabinet components or furniture panels.
• Backed by Freud's Limited Lifetime Guarantee, buyers can rely on this through hole boring bit as a long-term production tool rather than a consumable replacement item.

Specifications

• Brand: Freud
• Model Number: TH50057L
• Diameter: 5 mm
• Length: 57.5 mm
• Shank: 10 mm
• Angle: 60 deg.
• Maximum Hole Depth: 27 mm
• Rotation: LH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic and manual multi-spindle boring machines.

Frequently Asked Questions

What machines is the Freud TH50057L compatible with?

This through hole boring bit is designed for multiple spindle machines, including both automatic and manual multi-spindle boring machines. The 10 mm shank with an adjustable top screw makes it compatible with most boring machines. It is also suitable for use with a drill press or hand held drill.

Why does this bit use left-hand (LH) rotation?

The TH50057L is designed with left-hand rotation to match left-hand spindle configurations found on many multi-spindle boring machines. Using a bit with the correct rotation direction ensures proper cutting action, cleaner hole walls, and efficient chip evacuation for the intended machine setup.

What materials can this boring bit drill through?

This Freud industrial carbide-tipped through hole boring bit is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods - making it versatile for cabinetry, furniture panel work, and general woodworking applications.

What is the maximum hole depth this bit can achieve?

The Freud TH50057L has a maximum hole depth of 27 mm. The overall bit length is 57.5 mm with a 5 mm cutting diameter, making it specifically suited for through hole applications where controlled depth and accurate entry are required.
