The Freud 5 mm Brad Point Bit is an industrial-grade carbide tipped boring bit engineered for precision drilling on automatic and manual multi-spindle boring machines. With a 10 mm shank fitted with an adjustable top screw, this bit is compatible with most boring machines and delivers clean, accurate holes in composites, solid surface materials, veneered plywood, hardwoods, and softwoods. Backed by Freud's Limited Lifetime Guarantee, this left-hand rotation bit is built for demanding production environments where consistent performance and extended tool life are essential.

Key Features

• Industrial carbide tips - provide exceptional hardness and edge retention, resulting in superior performance and maximum bit life across high-volume boring operations
• 10 mm shank with adjustable top screw - ensures broad compatibility with most multi-spindle boring machines, reducing the need for adapters or custom tooling

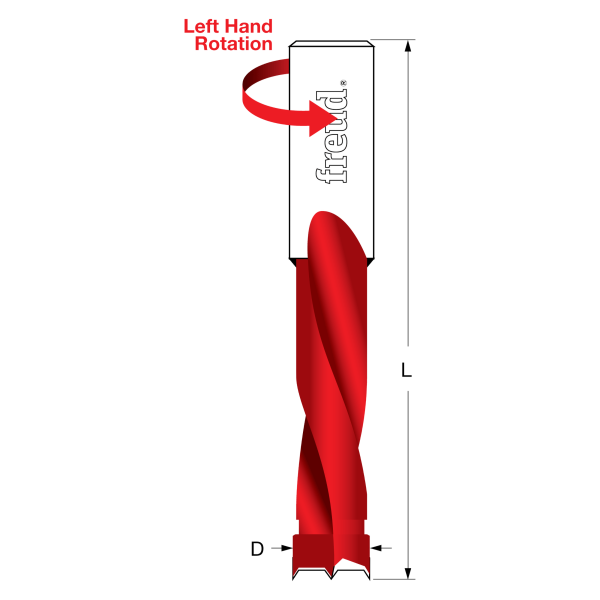

• Left-hand (LH) rotation - specifically designed for left-hand spindle positions on multi-spindle boring machines, ensuring clean entry and accurate hole placement
• 5 mm diameter with a 57.5 mm overall length and 27 mm maximum hole depth - delivers precise sizing for cabinetry, furniture, and panel boring applications
• Freud Limited Lifetime Guarantee - provides long-term assurance of quality and durability, protecting your investment in professional tooling

Why This Product

• Designed specifically for multi-spindle boring machines, this bit integrates directly into production workflows without modifications, saving setup time and reducing downtime
• The carbide tip construction handles a wide range of materials - from veneered plywood and hardwoods to composites and solid surface panels - making it a versatile single-bit solution for furniture and cabinetry shops
• The adjustable top screw on the 10 mm shank allows for quick depth and height adjustments, improving accuracy and repeatability on both automatic and manual boring machines
• Left-hand rotation matches the spindle orientation requirements of specific boring machine configurations, ensuring proper chip evacuation and a clean bore every time

Specifications

• Brand: Freud
• MPN: BP50057L
• Category: Brad Point Bits
• Diameter: 5 mm
• Length: 57.5 mm
• Shank: 10 mm
• Maximum Hole Depth: 27 mm
• Rotation: LH
• Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Compatible Tools: Drill Press; Hand Held Drill
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic or manual multi-spindle boring machines.

Frequently Asked Questions

What machines is this brad point bit compatible with?

This Freud brad point boring bit features a 10 mm shank with an adjustable top screw, making it compatible with most automatic and manual multi-spindle boring machines. It can also be used with a drill press or hand held drill.

Why does this bit have left-hand (LH) rotation?

Left-hand rotation is required for specific spindle positions on multi-spindle boring machines. Using a bit with the correct rotation direction ensures proper chip clearance, a cleaner bore, and prevents thread or workpiece damage on LH-configured spindles.

What materials can this 5 mm carbide tipped brad point bit drill through?

This bit is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods - making it well suited for cabinetry, furniture panel boring, and woodworking production environments.

What warranty does Freud offer on this boring bit?

Freud backs this industrial carbide tipped brad point boring bit with their Limited Lifetime Guarantee, providing long-term coverage on the quality and durability of the bit.
