The Freud 40 mm Diameter Cylinder (Hinge) Bit is a professional-grade boring bit engineered for precise hinge boring and panel drilling across a wide range of wood-based materials. Built with industrial carbide tips and designed for use on multiple spindle machines as well as drill presses and hand held drills, this bit delivers consistent, clean results in composites, solid surface materials, veneered plywood, hardwoods, and softwoods. With a 10 mm shank, right hand rotation, and a 57.5 mm working length, it integrates smoothly into most automatic and manual boring setups - making it a dependable choice for cabinet shops, millwork operations, and production environments.

Key Features

• Industrial carbide tips - provide long-lasting cutting performance and resist wear during high-volume boring operations, extending tool life compared to standard steel alternatives
• Two wing cutters and two spur cutters - work together to prevent bottom side tear out, producing clean, accurate holes in veneered plywood and other face-sensitive materials
• 10 mm shank with adjustable top screw - ensures compatibility with most boring machines, reducing the need for adapters and simplifying setup
• Right hand rotation - matches standard multi-spindle and drill press configurations for plug-and-play installation without special tooling

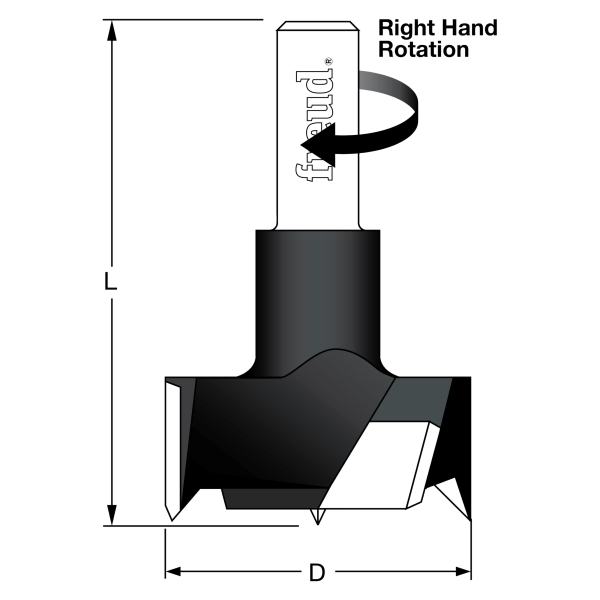

• 40 mm diameter x 57.5 mm length - precision-machined dimensions suited for standard European hinge cup boring and cabinet hardware installation
• Wood case included - provides organized, protected storage that keeps cutting edges intact between uses and extends overall bit longevity
• Freud Limited Lifetime Guarantee - backs the bit with manufacturer confidence, protecting your investment in professional tooling

Why This Product

• Designed specifically for hinge boring on multi-spindle machines, this bit handles the demands of production cabinet and furniture manufacturing where accuracy and repeatability are essential across every hole.
• The carbide-tipped construction and dual spur/wing cutter geometry mean clean entry and exit in difficult materials like veneered plywood and hardwoods - reducing scrap and rework on high-value workpieces.
• With a standard 10 mm shank and adjustable top screw, the bit fits most automatic and manual boring machines without modification, making it easy to integrate into an existing shop workflow.
• Backed by Freud's Limited Lifetime Guarantee and made with industrial-grade carbide tips, this cylinder bit is built for sustained professional use - not just occasional jobsite tasks.

Specifications

• Brand: Freud
• Model Number: CB40057R
• Diameter: 40 mm
• Length: 57.5 mm
• Shank: 10 mm
• Rotation: RH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Category: Cylinder Bits
• Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods. Use on automatic and manual multi-spindle boring machines.

What's Included

• 1x Freud 40 mm Cylinder (Hinge) Bit (CB40057R) in protective wood case

Frequently Asked Questions

What machines is this cylinder bit compatible with?

This bit is designed for use on automatic and manual multi-spindle boring machines. It is also compatible with drill presses and hand held drills. The 10 mm shank with an adjustable top screw makes it fit most boring machines without modification.

What materials can the Freud CB40057R bore through?

This cylinder bit is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods. The two wing cutters and two spur cutters help prevent bottom side tear out, making it suitable for face-sensitive materials like veneered plywood.

What does right hand rotation mean for this bit, and why does it matter?

Right hand rotation means the bit spins in the standard clockwise direction when viewed from above. This matches the drive direction of most drill presses, hand held drills, and multi-spindle boring machines, ensuring proper cutting action and safe operation without any special adapters.

Does this boring bit come with any storage solution or warranty?

Yes - the Freud CB40057R comes with a wood case for easy storage and protection of the cutting edges between uses. It is also covered by Freud's Limited Lifetime Guarantee, providing long-term manufacturer support for professional users.
