The Freud 35 mm Diameter Cylinder (Hinge) Bit is a precision-engineered boring bit built for professional woodworkers and cabinet makers who demand clean, accurate results on multi-spindle boring machines. Featuring industrial carbide tips and a left-hand rotation design, this hinge boring bit cuts through composites, solid surface materials, veneered plywood, hardwoods, and softwoods with exceptional precision and edge quality. With a 10 mm shank and 57.5 mm overall length, it is compatible with most automatic and manual multi-spindle boring machines, making it a dependable choice for high-volume cabinet and furniture production.

Key Features

• Industrial carbide tips - deliver superior cutting performance and extended tool life, reducing the frequency of bit replacements in demanding production environments.
• Two wing cutters and two spur cutters - prevent bottom-side tear out on the workpiece, ensuring clean, splinter-free holes through veneered plywood and other sensitive materials.
• Left-hand (LH) rotation - specifically engineered for left-hand spindle positions on multi-spindle boring machines, ensuring the correct cutting geometry for your machine configuration.
• 10 mm shank with adjustable top screw - provides compatibility with most boring machines and allows for easy depth adjustment without additional tooling.
• 57.5 mm overall length - sized appropriately for standard hinge cup boring applications in cabinet and furniture production.
• Wood case included - protects the carbide cutting edges during storage and transport, helping to preserve bit life when not in use.
• Freud Limited Lifetime Guarantee - backs the bit against defects, giving buyers long-term confidence in their investment.
• Made in Italy - produced in a country recognized for precision tooling, reflecting Freud's commitment to consistent manufacturing quality.

Why This Product

• The industrial carbide tips and dual spur/wing cutter geometry work together to produce clean, accurate hinge cup holes without bottom-side tear out - a critical requirement when working with veneered plywood, hardwoods, and composite panel materials.
• The left-hand rotation designation makes this bit the correct choice for LH spindle positions on multi-spindle boring machines, eliminating guesswork when configuring machines for cabinet production.
• The standard 10 mm shank with adjustable top screw ensures broad compatibility across most automatic and manual multi-spindle boring machines, reducing the need for specialized adapters.
• Freud's Limited Lifetime Guarantee means this hinge boring bit is backed for the long term - a practical advantage for production shops investing in a reliable, professional-grade tool.

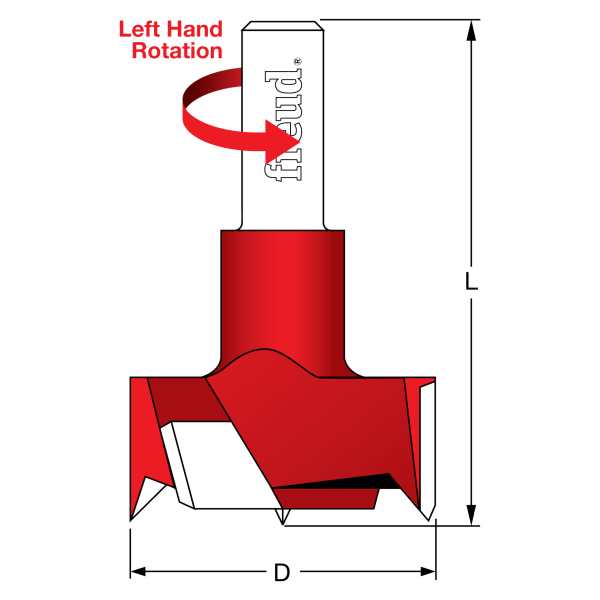

Specifications

• Brand: Freud
• Manufacturer Part Number: CB35057L
• Diameter: 35 mm
• Length: 57.5 mm
• Shank: 10 mm
• Rotation: LH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods. Use on automatic and manual multi-spindle boring machines.
• Hinge cup boring for cabinet doors, furniture production, and millwork requiring precise 35 mm diameter holes.

Frequently Asked Questions

What machines is this hinge boring bit compatible with?

This bit features a 10 mm shank with an adjustable top screw, making it compatible with most automatic and manual multi-spindle boring machines, as well as drill presses and hand-held drills.

Why does the rotation direction matter when selecting this bit?

This bit is designed for left-hand (LH) rotation. Using a bit with the wrong rotation direction on a multi-spindle machine will result in poor cut quality and potential damage to the workpiece. Always confirm your machine's spindle rotation before selecting a boring bit.

What materials can this 35 mm cylinder bit be used on?

This Freud hinge boring bit is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods - making it suitable for a wide range of cabinet and furniture production applications.

Does this bit come with any storage solution or warranty?

Yes. The bit is supplied in a wood case for easy storage and protection of the carbide cutting edges. It is also backed by Freud's Limited Lifetime Guarantee against defects.
