The Freud 3/16 in. (Diameter) Through Hole Bit is an industrial-grade carbide tipped boring bit engineered for precision drilling on multiple spindle machines, including both automatic and manual multi-spindle boring systems. Built with a 10mm shank and featuring an adjustable top screw for broad machine compatibility, this right-hand rotation bit delivers accurate hole location thanks to its 60 deg. point geometry - making it a dependable choice for woodworking shops and production environments that demand consistent, repeatable results across a wide range of materials.

Key Features

• Industrial carbide tips - deliver long-lasting cutting performance and resist wear during high-volume production runs on hardwoods, softwoods, composites, and solid surface materials
• 60 deg. point angle - ensures accurate hole location for through hole drilling, reducing misalignment and improving hole quality across all compatible materials
• 10mm shank with adjustable top screw - provides compatibility with most boring machines, simplifying tool changes and reducing setup time in multi-spindle operations
• Right-hand rotation - matches standard multi-spindle boring machine configurations, making this bit a drop-in solution for conventional setups
• Designed for superior performance and maximum life - means fewer bit replacements, lower tooling costs, and less downtime in production environments
• Freud Limited Lifetime Guarantee - backs the bit's durability so you can purchase with confidence knowing the manufacturer stands behind the product

Why This Product

• The 60 deg. point geometry is specifically designed for accurate through hole location, which is critical when drilling veneered plywood and solid surface materials where surface precision matters
• Industrial carbide tipping means this bit handles the demands of automatic multi-spindle boring machines without premature dulling, making it well-suited for high-frequency production use
• The 10mm shank with adjustable top screw design maximizes compatibility across most boring machine brands, eliminating the need for adapter hardware or custom tooling
• At a 3/16 in. diameter and 70mm overall length with a 35mm maximum hole depth, this bit fills a precise size requirement for cabinet, furniture, and millwork applications involving smaller through hole configurations

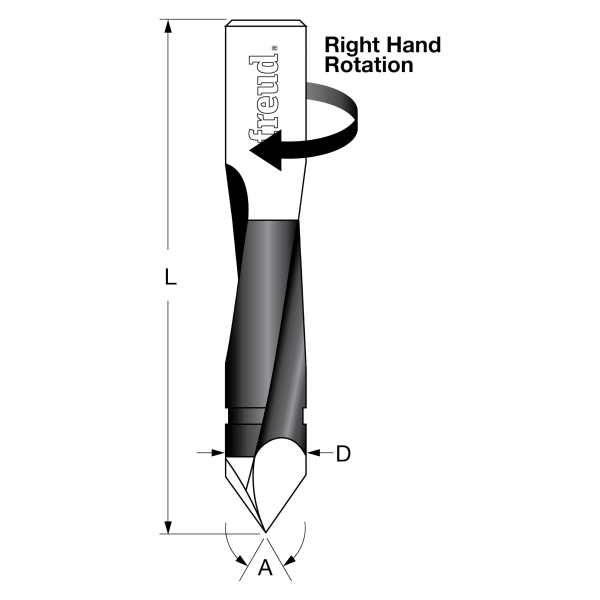

Specifications

• Brand: Freud
• Manufacturer Part Number: TH47670R
• Diameter: 3/16 in.
• Length: 70mm
• Shank: 10mm
• Angle: 60 deg.
• Maximum Hole Depth: 35mm
• Rotation: RH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic and manual multi-spindle boring machines

Frequently Asked Questions

What machines is the Freud TH47670R through hole bit compatible with?

This bit is designed for multiple spindle boring machines, including both automatic and manual multi-spindle configurations. Its 10mm shank with an adjustable top screw makes it compatible with most boring machines. It is also compatible with a drill press and hand held drill.

What is the purpose of the 60 deg. point angle on this boring bit?

The 60 deg. point angle is specifically engineered to provide accurate hole location when drilling through holes. This geometry helps guide the bit precisely into the workpiece, which is especially important when working with materials like veneered plywood or solid surface where surface accuracy is critical.

What materials can this 3/16 in. through hole bit be used on?

The Freud TH47670R is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods. Its industrial carbide tips make it capable of handling the varying density and hardness of these material types in production settings.

What warranty does Freud offer on this through hole boring bit?

Freud backs this bit with their Limited Lifetime Guarantee, reflecting the manufacturer's confidence in the bit's durability and the quality of its industrial carbide tips and construction.
