The Freud 24 mm Diameter Cylinder (Hinge) Boring Bit is a precision-engineered boring tool built for professional woodworking environments that demand accuracy and durability. Designed by Freud for use with multiple spindle boring machines, this right-hand rotation hinge bit features industrial carbide tips that deliver superior cutting performance and extended tool life across a wide range of wood-based materials - from softwoods and hardwoods to composites, solid surface, and veneered plywood. Whether you are running an automatic multi-spindle machine in a production shop or drilling with a drill press or hand-held drill, this cylinder bit provides the precise, clean results that professional cabinetmakers and furniture manufacturers rely on.

Key Features

• Industrial carbide tips - resist heat and wear during repeated boring operations, extending tool life well beyond standard high-speed steel alternatives for high-production environments.
• Two wing cutters and two spur cutters - work together to prevent bottom-side tear-out, producing clean, accurate bores in veneered plywood and other tear-sensitive materials.
• 10 mm shank with adjustable top screw - ensures compatibility with most boring machines, making it easy to integrate into your existing multi-spindle setup without adapter modifications.
• Right-hand rotation (RH) - matches the standard spindle direction of drill presses and multi-spindle boring machines, allowing safe, immediate use without special tooling configuration.

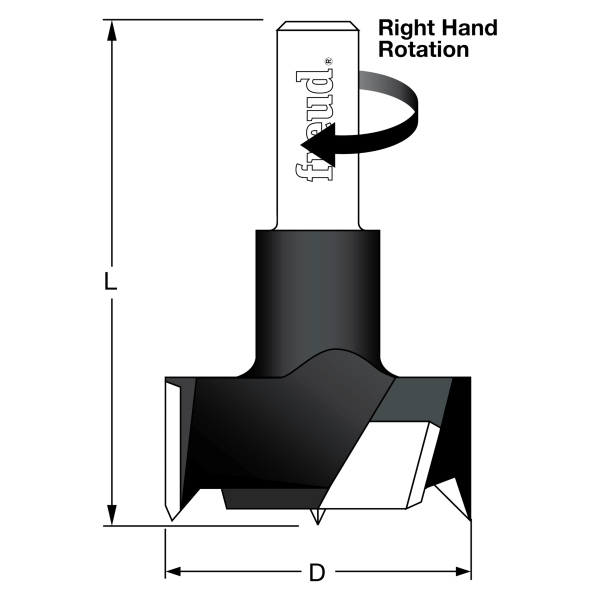

• 24 mm diameter, 57.5 mm length - delivers the precise bore geometry required for standard European-style hinge cup installations in cabinet and door production.
• Wood case included - provides ready storage and physical protection for the bit between uses, keeping cutting edges sharp and undamaged in a busy shop environment.
• Freud Limited Lifetime Guarantee - backs this bit against defects, giving buyers long-term confidence in their tooling investment.

Why This Product

• The industrial carbide tip construction is matched to the demands of automatic and manual multi-spindle boring machines, where consistent repeatability across high production volumes is essential - not just occasional use.
• The combination of spur cutters and wing cutters actively prevents tear-out on the bottom side of the bore, making this bit a reliable choice when working with veneered plywood or finished panels where surface quality matters.
• At 24 mm in diameter and paired with a standard 10 mm shank, this bit is sized for the European hinge cup format used widely in cabinet and furniture production, reducing setup time and tooling guesswork.
• Backed by Freud's Limited Lifetime Guarantee, this cylinder hinge bit represents a long-term tooling solution rather than a consumable - a practical value for shops investing in reliable boring equipment.

Specifications

• Brand: Freud
• Manufacturer Part Number: CB24057R
• Category: Cylinder Bits
• Diameter: 24 mm
• Length: 57.5 mm
• Shank: 10 mm
• Rotation: RH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods. Use on automatic and manual multi-spindle boring machines.
• Hinge cup boring for European-style cabinet hinges in door and cabinet panel production.
• Precision boring in furniture manufacturing where clean, tear-out-free holes in veneered and composite panels are required.

Frequently Asked Questions

What machines is the Freud CB24057R compatible with?

This cylinder hinge bit is designed for use on automatic and manual multi-spindle boring machines. Its 10 mm shank with an adjustable top screw makes it compatible with most boring machines. It can also be used with a drill press or a hand-held drill.

What materials can this 24 mm cylinder boring bit cut through?

The CB24057R is rated for use in composites, solid surface materials, veneered plywood, hardwoods, and softwoods - covering the full range of materials commonly found in cabinet, furniture, and millwork production environments.

How does this bit prevent tear-out on sensitive materials like veneered plywood?

The bit is engineered with two wing cutters and two spur cutters that work in combination to prevent bottom-side tear-out. This design is especially important when boring through veneered plywood or finished panels where surface quality is critical.

Does this boring bit come with any warranty or guarantee?

Yes. The Freud CB24057R is covered by Freud's Limited Lifetime Guarantee, which backs the bit against defects and reflects the brand's confidence in its industrial carbide tip construction and long-term performance.
