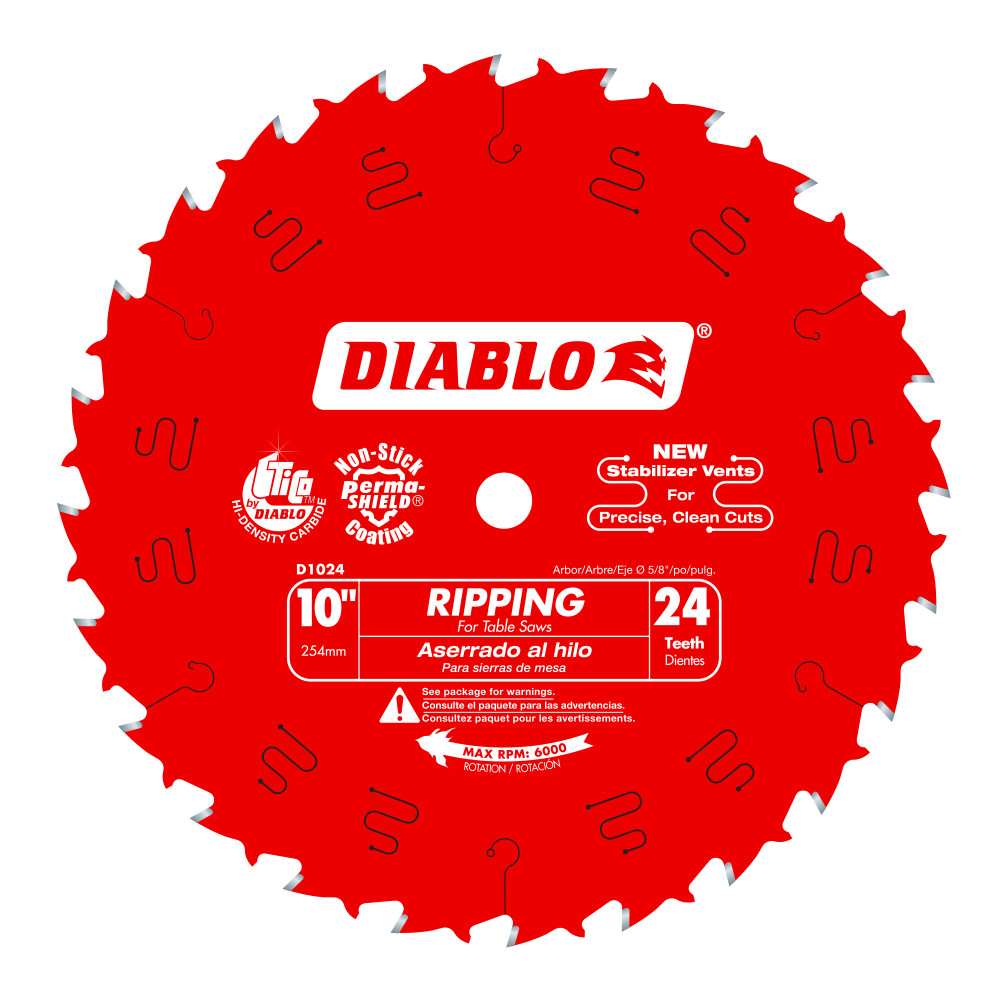

Diablo 10-Inch x 24-Teeth Ripping Saw Blade for Wood is engineered for professionals and serious woodworkers who demand the smoothest, fastest, and most accurate rip cuts through rough framing lumber, finish lumber, plywood, OSB, and hardboard siding. Built with a thin kerf design, this circular saw blade draws less power from both the user and the saw, giving you better control and reduced fatigue on every pass. Diablo's proprietary carbide formulation and extra-tough steel plate deliver the kind of long-lasting performance that keeps framing and general construction projects moving efficiently.

Key Features

• TiCo Hi-Density Carbide Tips - high performance carbide specifically designed for ripping applications, staying sharper longer through hardwoods, softwoods, pressure-treated lumber, plywood, and OSB.
• Perma-SHIELD Non-stick Coating - protects the blade from heat buildup, pitch gumming, and corrosion, extending blade life and reducing friction during rip cuts.
• Super Thin Laser-Cut Kerf (.098 in.) - removes less material with every pass, requiring less motor power and delivering faster, cleaner cuts through 3/4 in. to 2-3/4 in. stock.
• Tri-Metal Shock Resistant Brazing - bonds carbide tips with exceptional strength so they can withstand extreme impact, reducing the risk of tip loss and extending overall blade durability.
• Hardened Steel Body (.071 in. plate) - resists warping and flexing under load, maintaining a truer cut line and a sharper cutting edge over a longer service life.
• 24 ATB Tooth Geometry with 15 deg. Hook Angle - optimized for aggressive, efficient ripping that feeds smoothly through wood grain with minimal tear-out.
• 5/8 in. Arbor - fits portable table saws and stationary table saws for broad compatibility across common job site and shop configurations.
• Maximum 6000 RPM Rating - engineered to perform safely at the speeds typical of portable and stationary table saw applications.

Why This Product

• The thin kerf design reduces cutting resistance, meaning your saw works less hard and you maintain better control - a real advantage when ripping long boards or full sheets of plywood and OSB on a job site.
• The Perma-SHIELD non-stick coating actively fights pitch buildup and corrosion, so the blade stays cleaner and cuts more freely through pressure-treated and resinous lumber without constant cleaning.
• Tri-metal brazing and TiCo Hi-Density carbide tips are purpose-built for impact resistance, making this blade a practical choice for rough framing applications where blades take a beating from knotty or dense lumber.
• Compatible with both portable and stationary table saws, this 10 in. ripping blade covers a wide range of general construction and woodworking setups - from job site saws to shop-based ripping operations.

Specifications

• Brand: Diablo
• Diameter: 10 in.
• Teeth: 24 ATB
• Arbor: 5/8 in.
• Kerf: .098 in.
• Hook Angle: 15 deg.
• Plate: .071 in.
• Maximum RPM: 6000
• Compatible Tools: Portable Table Saw; Stationary Table Saw
• Compatible Materials: Hardwoods; Softwoods; Pressure Treated; Plywood; OSB; 2X Lumber; Rip Wood
• Usage: Superior quality rip cuts (3/4 in. to 2-3/4 in.) in wood, plywood and OSB
• Country of Origin: Italy

Available Pack Options

• D1024X: 1 Ea
• D1024X -10P: 10 Pk

Approved Applications

• Ripping Wood - fast, efficient rip cuts through 3/4 in. to 2-3/4 in. lumber, plywood, OSB, and hardboard siding in general construction and woodworking applications.

Frequently Asked Questions

What types of materials can this Diablo ripping blade cut?

This blade is designed to cut hardwoods, softwoods, pressure-treated lumber, plywood, OSB, 2X lumber, rough framing lumber, finish lumber, and hardboard siding. It is optimized for superior quality rip cuts ranging from 3/4 in. to 2-3/4 in. in thickness.

What saws is this 10 in. Diablo blade compatible with?

This blade fits both portable table saws and stationary table saws with a standard 5/8 in. arbor. It is rated for a maximum of 6000 RPM, which covers typical operating speeds for those saw types.

What does the thin kerf design mean for my cuts and my saw?

The thin kerf (.098 in.) means the blade removes less material with each pass. This requires less cutting power from both the user and the saw motor, which translates to better control over the cut, reduced fatigue, and faster feed rates through lumber and sheet goods.

How does Perma-SHIELD coating benefit this ripping saw blade?

The Perma-SHIELD non-stick coating on the blade body protects it from heat buildup, pitch gumming, and corrosion. This keeps the blade running cleaner through resinous woods and pressure-treated lumber, extending blade life and maintaining cut quality over time.
