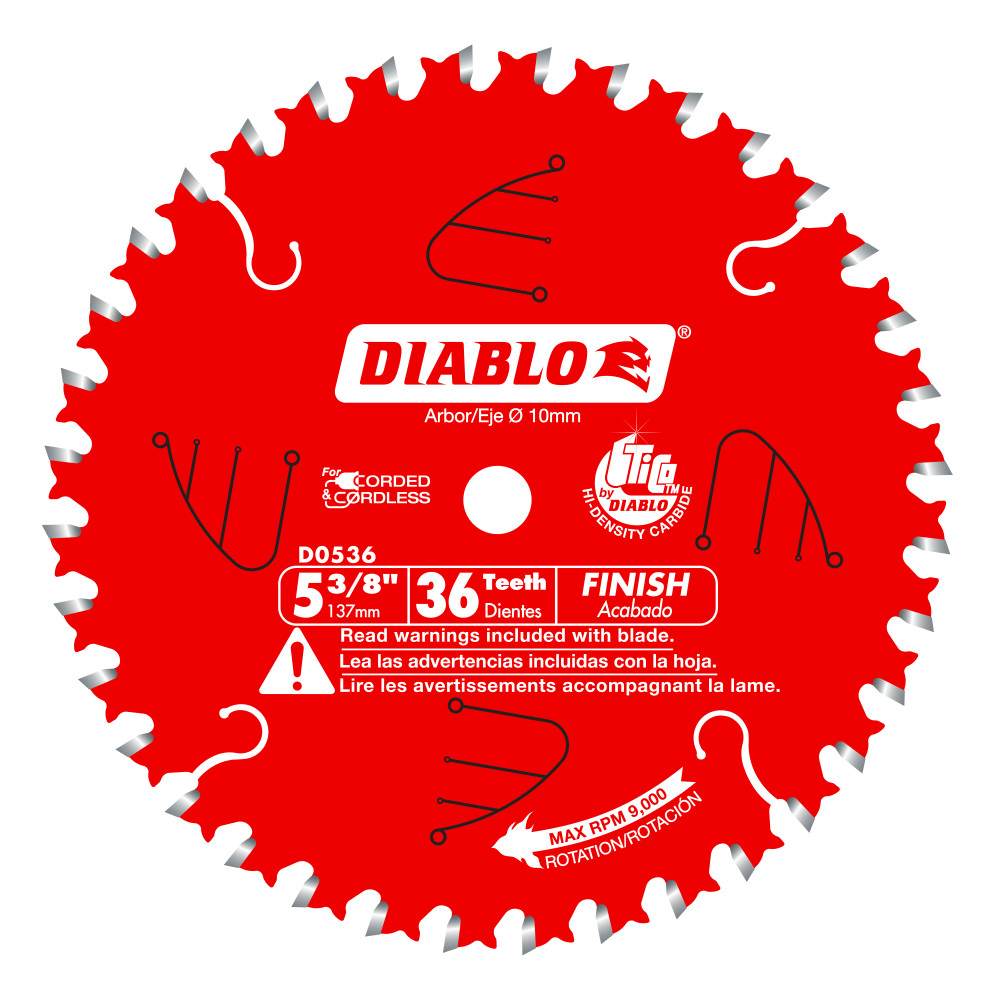

The Diablo 5-3/8" x 36-Teeth Finish Trim Saw Blade for Wood is engineered for portable and low-powered trim saws, delivering smooth, professional-quality finish crosscuts in hardwoods, softwoods, and plywood. Diablo has developed this compact trim saw blade specifically to extend run time on DeWalt and similar trim saws, making it a reliable choice for jobsite carpenters who demand clean results from lightweight cutting tools. With a thin kerf, precision-ground carbide teeth, and a protective coating that guards against corrosion, this blade keeps portable circular saws cutting efficiently through a wide range of wood materials - from standard 2x lumber to pressure treated boards.

Key Features

• TiCo Hi-Density carbide teeth specifically designed for each application - maximizes cutting life so the blade stays sharp longer through hardwoods, softwoods, and plywood
• Super thin laser cut kerf at.049" - reduces material waste and cutting resistance, resulting in extremely fast, durable, and clean cuts with less strain on low-powered trim saws
• Laser-cut stabilizer vents trap noise and vibration - keep the blade running cool during extended use and reduce blade warp for consistently accurate cuts
• Non-stick Perma-SHIELD Coating - resists gumming from resinous woods and protects against rusting and corrosion for a longer service life on the jobsite
• Laser-cut arbor ensures accurate blade rotation - minimizes vibration and premature wear so the blade tracks true cut after cut
• 36 ATB (Alternate Top Bevel) tooth configuration - engineered for smooth finish crosscuts, leaving clean edges in hardwood, softwood, and plywood without splintering
• Maximum 12,000 RPM rating - safely handles the high-speed demands of portable trim saws
• 2 deg. hook angle - optimized for controlled feeding and clean finish cuts in wood materials

Why This Product

• Proven to extend run time on DeWalt and similar trim saws - this blade is purpose-built for portable, low-powered saws that need an efficient, thin-kerf blade to maintain cutting performance through an entire workday
• Handles the full range of jobsite wood materials - rated for hardwoods, softwoods, 2x lumber, pressure treated lumber, and plywood, so one blade covers the variety of cuts a finish trim carpenter encounters on a typical project
• The.039" plate and.049" thin kerf reduce drag and heat buildup - critical advantages when running a compact trim saw where motor power is limited and blade cooling matters
• Made in Italy with TiCo Hi-Density carbide and a Perma-SHIELD protective coating - this combination of premium carbide formulation and corrosion-resistant coating addresses two common causes of premature blade failure: dulling and environmental degradation

Specifications

• Brand: Diablo
• Diameter: 5-3/8"
• Teeth: 36 ATB
• Arbor: 10mm
• Kerf: .049"
• Hook Angle: 2 deg.
• Plate: .039"
• Maximum RPM: 12000
• Compatible Tools: Trim Saw
• Compatible Materials: Hardwoods; 2X Lumber; Pressure Treated; Plywood
• Usage: Smooth finish crosscuts in hardwood, softwood, or plywood
• Country of Origin: Italy

Available Pack Options

• D0536X: 1 Ea

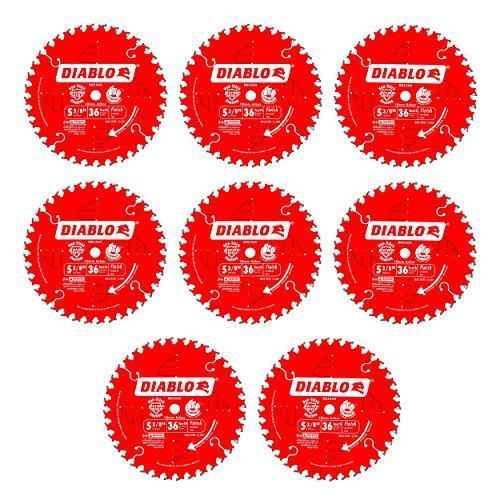

• D0536X -8: 8 Pk

Approved Applications

• Wood Cutting

Frequently Asked Questions

What type of trim saws is this blade compatible with?

This Diablo 5-3/8" blade is designed for trim saws, and is proven to extend run time on DeWalt and similar trim saws. The 10mm arbor and 5-3/8" diameter are matched to portable, low-powered jobsite trim saws in this size class.

What wood materials can this blade cut?

This blade is rated for hardwoods, softwoods, 2x lumber, pressure treated lumber, and plywood. Its 36 ATB tooth configuration is specifically suited for smooth finish crosscuts across all of these materials.

What is the maximum RPM for this blade, and why does it matter?

The blade is rated for a maximum of 12,000 RPM. Never operate the blade above this rated speed, as exceeding the maximum RPM can compromise both blade integrity and operator safety. Always verify that your trim saw's speed does not exceed this limit before use.

What makes the kerf design on this blade beneficial for trim work?

The super thin laser cut kerf measures.049", which reduces cutting resistance and material waste. For portable and low-powered trim saws, a thinner kerf means less load on the motor, helping extend run time and producing cleaner, faster cuts in finish trim applications.
