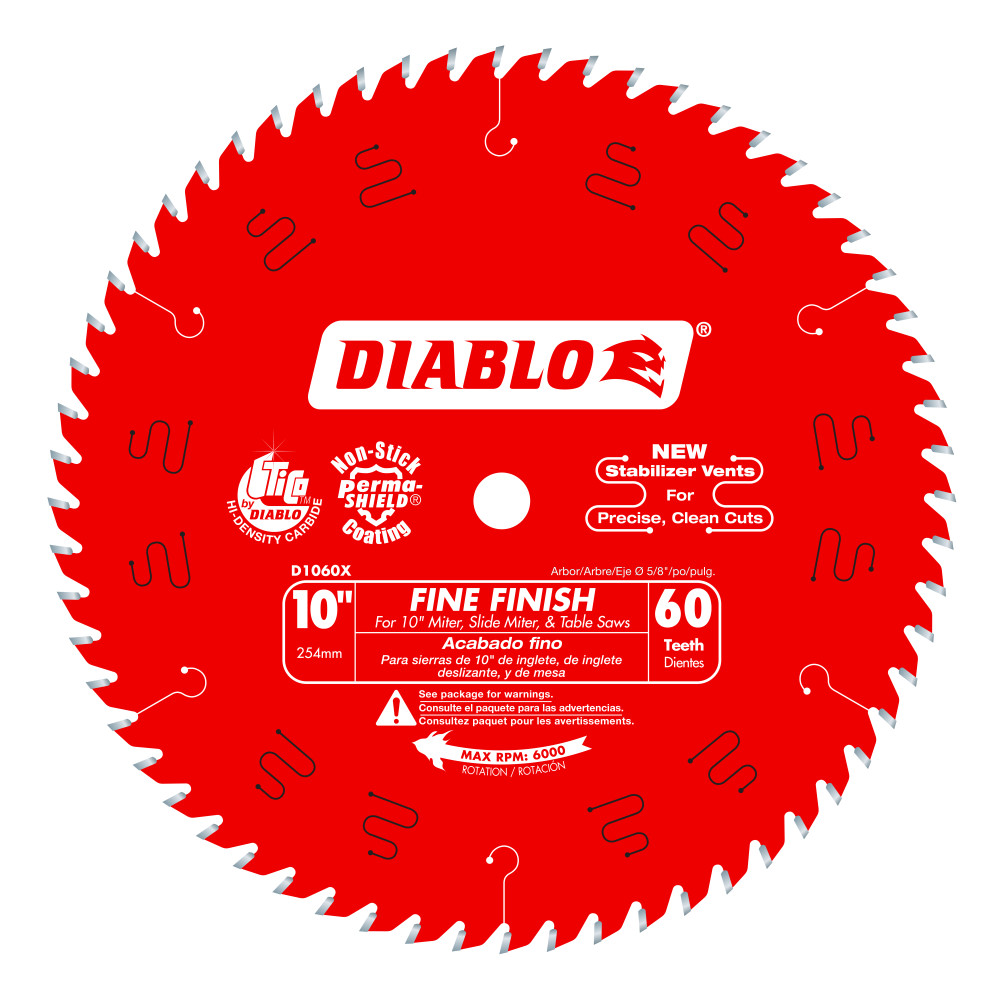

The Diablo 10" x 60-Teeth Fine Finish Saw Blade for Wood is engineered for trim carpenters and woodworking professionals who demand mirror-smooth crosscuts and rip cuts with minimal tearout or blowout. Featuring 60 Hi-ATB (High Alternate Top Bevel) teeth and a precisely ground 15 deg. hook angle, this Diablo blade pairs with miter saws, sliding miter saws, stationary table saws, and portable table saws to deliver finish-quality results in hardwoods, softwoods, plywood, melamine, and MDF. Because the blade leaves surfaces that require little to no sanding, it eliminates time-consuming cleanup and helps trim crews move faster on the jobsite.

Key Features

• TiCo Hi-Density carbide construction - a high-performance carbide formula specifically designed for fine finish wood cutting, producing cleaner edges and longer-lasting sharpness than standard carbide
• Perma-SHIELD Non-stick Coating - protects the blade from heat buildup, pitch gumming, and corrosion, extending blade life and reducing friction during cuts
• Super thin laser cut.098" kerf - removes less material per pass for faster, cleaner cuts while reducing strain on the saw motor
• Tri-metal shock resistant brazing - bonds carbide tips to the plate with maximum holding strength so they withstand extreme impact and resist tip loss during demanding cuts
• Hardened steel body at.071" plate thickness - maintains blade flatness and rigidity over repeated use, supporting a sharper, more consistent cutting edge over the life of the blade
• 60 Hi-ATB teeth with a 15 deg. hook angle - the high tooth count and special cutting geometry work together to minimize "grabbing" and produce extremely smooth surfaces on oak, pine, melamine, plywood, and moulding
• 5/8" arbor compatibility - fits standard miter saw and table saw arbors for easy installation across common jobsite and workshop tools

Why This Product

• Trim carpenters working with finish materials like oak, pine, and moulding need cuts that are ready to install - this blade's 60-tooth Hi-ATB geometry leaves surfaces that require little to no sanding, saving real time on every cut.
• The Perma-SHIELD Non-stick Coating addresses one of the most common blade performance killers - heat and pitch accumulation - helping the blade run cooler and cleaner through sticky softwoods and resin-heavy materials.
• With a maximum rating of 6000 RPM and compatibility with sliding miter saws, stationary table saws, and portable table saws, this blade is versatile enough to move between the shop and the jobsite without needing a blade swap.
• The super thin.098" laser cut kerf reduces material waste and cutting resistance, which is especially valuable when making repeated finish cuts in hardwoods like oak where blade drag and tearout are common problems.

Specifications

• Brand: Diablo
• Model Number: D1060X
• Diameter: 10"
• Teeth: 60 Hi-ATB
• Arbor: 5/8"
• Kerf: .098"
• Hook Angle: 15 deg.
• Plate: .071"
• Maximum RPM: 6000
• Compatible Tools: Miter Saw; Slide Miter Saw; Stationary Table Saw; Portable Table Saw
• Compatible Materials: Hardwoods; Softwoods; Plywood; Melamine; MDF
• Usage: High quality crosscuts and rip cuts in wood, plywood & melamine
• Pack Quantity: 1
• Country of Origin: United States

Approved Applications

• Fine Finish Wood Cutting

Frequently Asked Questions

What types of saws is the Diablo D1060X compatible with?

The D1060X is compatible with miter saws, sliding ("chop" style) miter saws, stationary table saws, and portable table saws. It fits any of these tools that use a standard 5/8" arbor and operate at or below the maximum rated speed of 6000 RPM.

What materials can this blade cut cleanly?

This blade is designed for high-quality crosscuts and rip cuts in hardwoods, softwoods, plywood, melamine, and MDF. It is specifically well-suited for finish cutting in oak, pine, moulding, and plywood where surface quality matters.

Will I need to sand after cutting with this blade?

In most cases, no. The special cutting geometry and 60-tooth Hi-ATB configuration are designed to leave a smooth surface that requires little to no sanding, making this blade especially practical for trim carpenters working with finish materials.

What does the Perma-SHIELD Non-stick Coating do for blade performance?

The Perma-SHIELD Non-stick Coating protects the blade from heat buildup, pitch gumming, and corrosion. This helps the blade run cleaner through resin-heavy or sticky woods, reduces friction during cuts, and contributes to a longer service life compared to uncoated blades.
