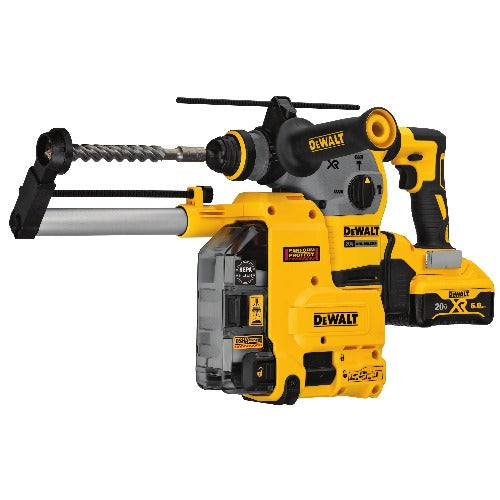

The DeWALT 20V MAX XR Brushless 1 1/8" L-Shape SDS Plus Rotary Hammer Kit DCH293R2DH brings professional-grade concrete drilling performance to a cordless 20V platform. Powered by a brushless motor paired with a durable German engineered mechanism, this rotary hammer delivers 3.5 Joules of impact energy - giving tradespeople and contractors the capability to drive large diameter holes in concrete for sleeve anchors, stud/wedge anchors, and screw anchors without the restriction of a power cord. As part of the PERFORM and PROTECT product line, it combines active safety systems, vibration control technology, and a powerful integrated dust extraction solution that can be configured for OSHA Table 1 compliance, making it a well-rounded choice for demanding jobsite environments.

Key Features

• Brushless motor - eliminates carbon brushes for greater energy efficiency, longer runtime per charge, and extended tool life compared to brushed alternatives
• 3.5 Joules of impact energy - delivers the hitting force needed for large diameter concrete drilling, including sleeve, stud/wedge, and screw anchor installation
• SHOCKS ACTIVE VIBRATION CONTROL System - actively reduces vibration felt at the handles, lowering operator fatigue during extended concrete drilling sessions
• Anti-Rotation E-CLUTCH System - detects bind-up situations and automatically shuts the tool down, protecting both the user and the tool from sudden rotational forces
• Powerful dust extraction system with built-in motor - dedicated suction motor maintains high performance and suction even during demanding drilling, keeping the work area cleaner
• Replaceable dust nozzle - allows the nozzle to be swapped out when worn, extending the useful life of the dust extraction assembly
• Durable, clear high capacity dust box - lets users monitor debris accumulation at a glance so work is not interrupted unexpectedly by an overfilled collector
• Quick release mechanism for tool assembly and disassembly - speeds up bit changes and attachment swaps on the jobsite, reducing downtime
• Replaceable HEPA filter that removes 99.97% of airborne particles 0.3 microns or greater - helps protect workers from fine concrete dust and silica particles during drilling operations
• Compatible with DWH304DH On Board Extractor for OSHA Table 1 compliance - enables use on regulated jobsites where dust control requirements apply to SDS Plus rotary hammer work

Why This Product

• Built-in active dust extraction with a dedicated motor sets this rotary hammer apart for contractors who need to manage silica dust on the jobsite - the integrated HEPA filtration removes 99.97% of airborne particles 0.3 microns or greater, supporting cleaner, safer work conditions without a separate vacuum unit.
• The SHOCKS ACTIVE VIBRATION CONTROL System and Anti-Rotation E-CLUTCH System work together to protect both the operator and the tool - reducing fatigue during long anchor installation runs and automatically shutting down in dangerous bind-up events.
• At 3.5 Joules of impact energy from a cordless 20V MAX platform, this hammer gives concrete and masonry crews the freedom to work without cord management hassles while still matching the output needed for large diameter anchor hole drilling.
• When paired with the DWH304DH On Board Extractor, this kit becomes OSHA Table 1 Compliant - making it a practical solution for contractors working on regulated commercial or industrial sites where dust control compliance is required for SDS Plus rotary hammer operations.

Specifications

• Model Number: DCH293R2DH
• Brand: DeWALT
• Voltage: 20V MAX
• Chuck Type: SDS Plus
• Bit Diameter: 1 1/8"
• Impact Energy: 3.5 Joules
• Motor Type: Brushless
• Product Line: PERFORM and PROTECT
• Vibration Control: SHOCKS ACTIVE VIBRATION CONTROL System
• Safety System: Anti-Rotation E-CLUTCH System
• HEPA Filter Efficiency: 99.97% of airborne particles 0.3 microns or greater
• OSHA Table 1 Compliance: When used with DWH304DH On Board Extractor

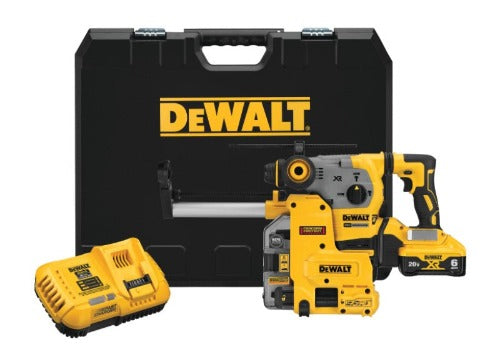

What's Included

• DCH293 20V MAX XR Brushless 1 1/8" L-Shape SDS Plus Rotary Hammer
• DWH304DH On Board Dust Extractor
• Batteries and charger (as specified in kit configuration)

Frequently Asked Questions

What types of anchors can this rotary hammer be used to install?

This rotary hammer is designed for large diameter hole drilling to install sleeve anchors, stud/wedge anchors, and screw anchors in concrete and masonry applications.

Does this tool require a separate vacuum for dust collection?

No - the kit includes a built-in dust extraction system with its own dedicated motor for increased suction. The system features a replaceable HEPA filter that captures 99.97% of airborne particles 0.3 microns or greater, and a clear high capacity dust box for monitoring fill levels without stopping work.

How does the Anti-Rotation E-CLUTCH System protect the user?

The Anti-Rotation E-CLUTCH System continuously monitors tool motion and automatically shuts the tool down when it detects a bind-up situation - helping prevent the sudden, dangerous rotational force that can occur when a bit becomes stuck in concrete.

Can this rotary hammer be used on OSHA Table 1 regulated jobsites?

Yes. When used with the DWH304DH On Board Extractor - which is included in this kit - the DCH293R2DH becomes OSHA Table 1 Compliant, making it suitable for commercial and industrial sites with silica dust control requirements for SDS Plus rotary hammer operations.
