The DeWALT 20V Max Pencil Vibrator Kit (DCE531M1) is a cordless concrete consolidation tool engineered for professionals who need reliable, high-performance vibration without the limitations of a corded setup. Powered by a 20V Max 4.0Ah battery, this pencil vibrator delivers the runtime and output needed to thoroughly consolidate poured concrete - eliminating air pockets and improving structural integrity on job sites where cords get in the way. Whether you are working on slabs, columns, footings, or wall pours, this kit provides a portable, purpose-built solution for efficient concrete vibration.

Key Features

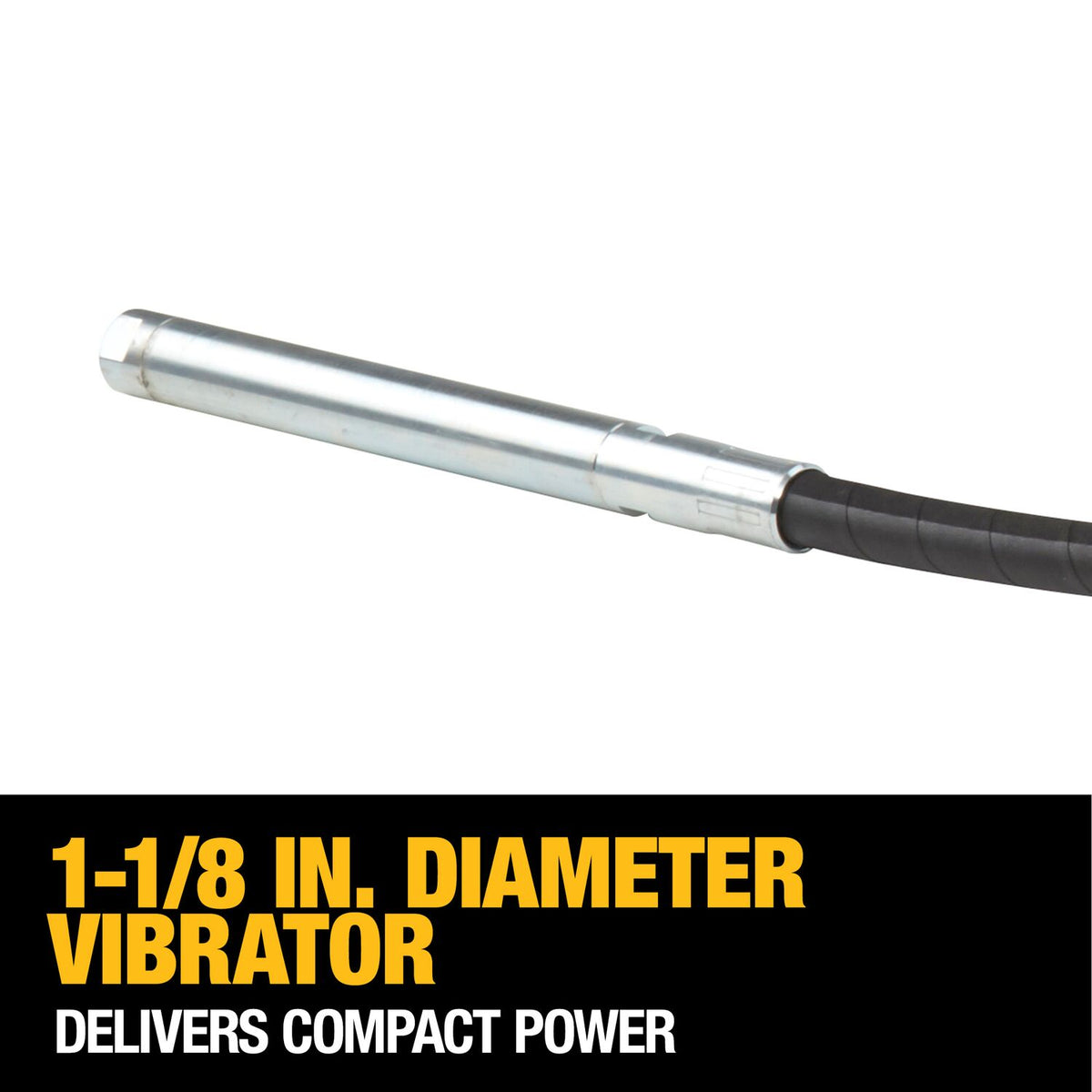

• 1 1/8" diameter vibrator head - a purpose-sized head that fits standard form clearances and delivers maximum consolidation power for thorough concrete compaction

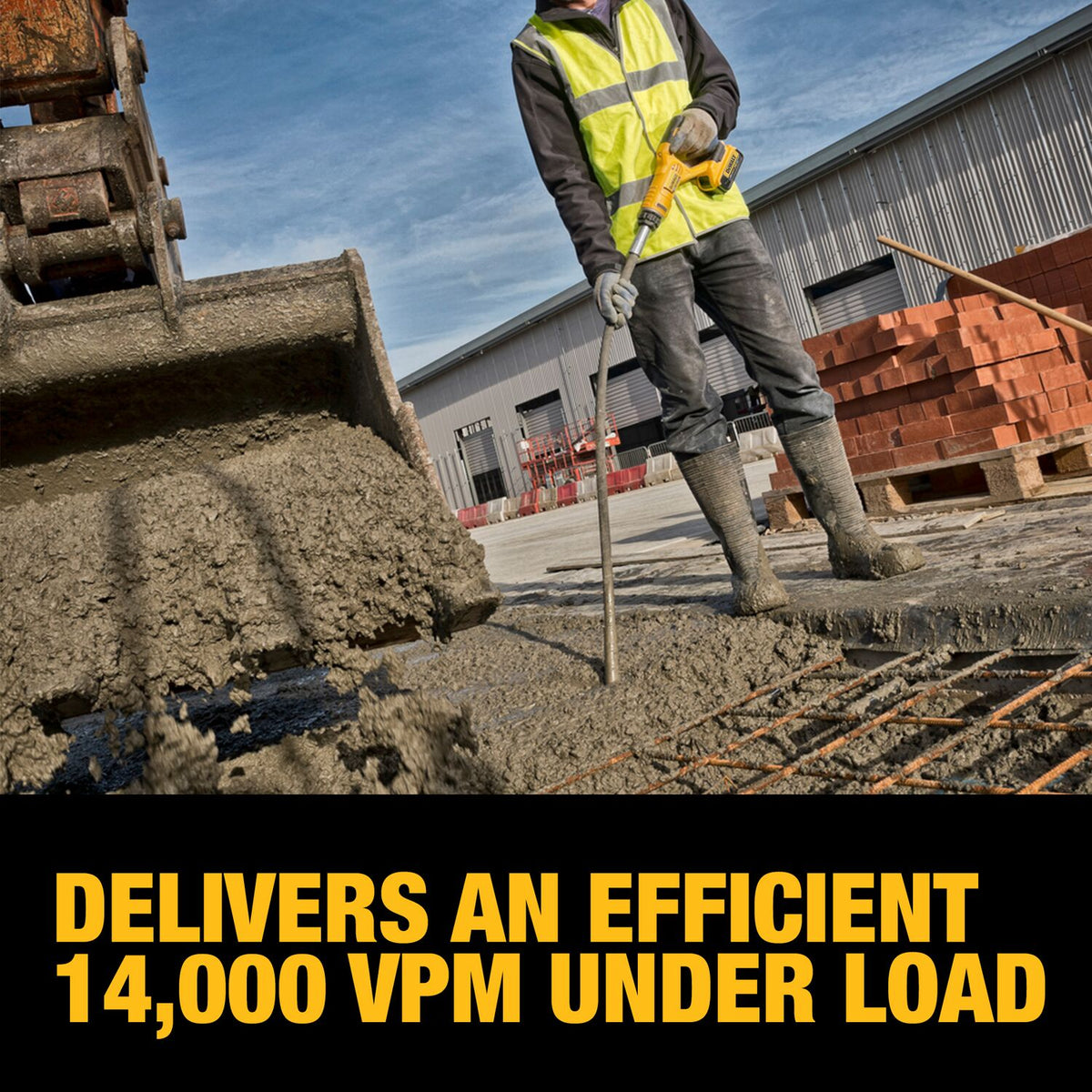

• 14,000 VPM (under load) - high vibration frequency that efficiently drives air bubbles to the surface, producing denser, stronger finished concrete

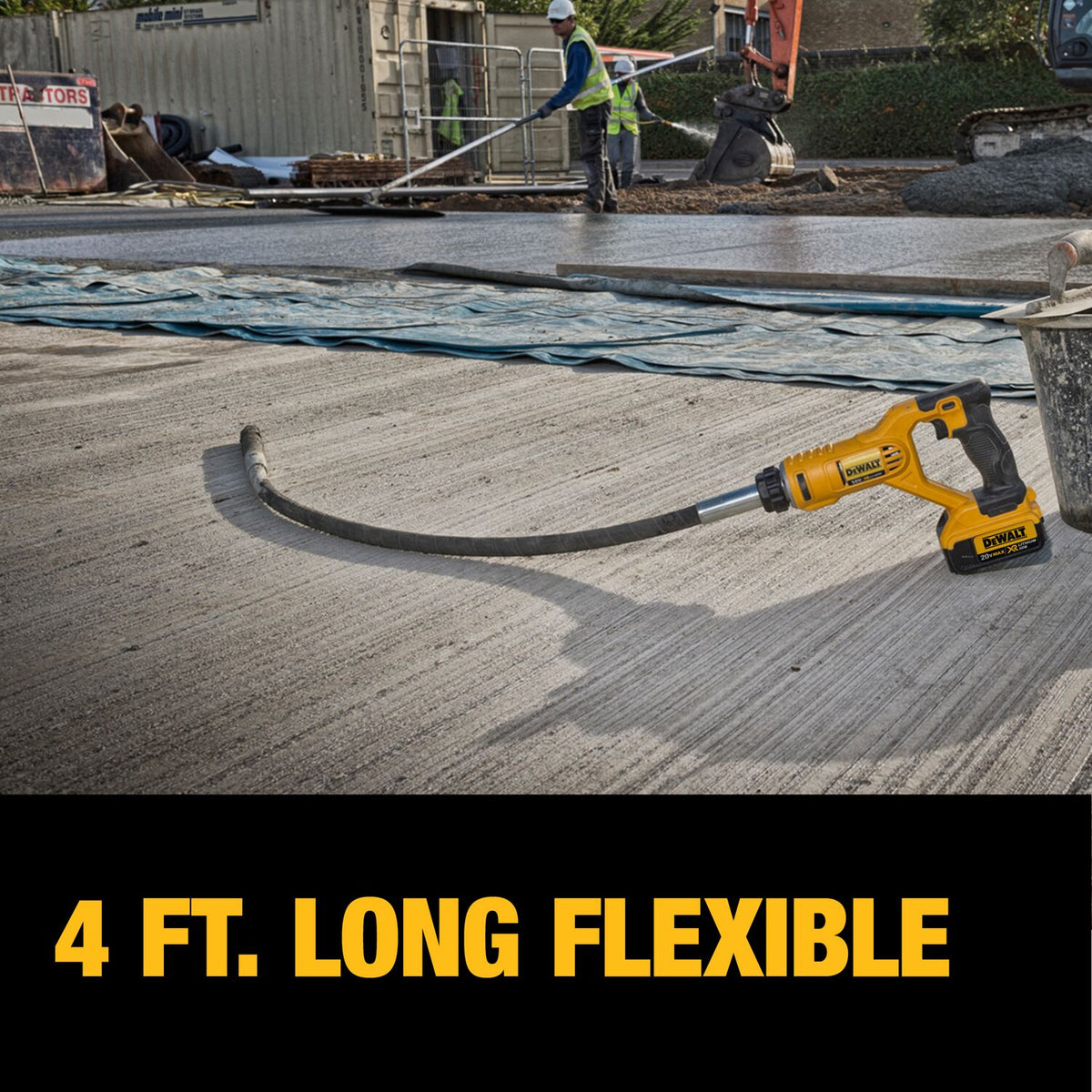

• 4-foot flexible shaft - extended reach and flexibility allow you to work deep into forms and maneuver around rebar without repositioning the motor unit
• 20V Max 4.0Ah battery included - cordless operation with a high-capacity battery means no generator or extension cord needed, reducing setup time on the job site
• Includes charger - the complete kit arrives ready to use out of the box, so work can start immediately without sourcing additional accessories

Why This Product

• Cordless freedom with real runtime - the 4.0Ah battery provides the power capacity needed for full consolidation tasks, making this vibrator practical for job sites where electrical access is limited or inconvenient
• Optimized vibration output for concrete quality - at 14,000 VPM under load, the tool maintains effective consolidation frequency even as resistance increases in fresh concrete, helping ensure consistent results throughout the pour
• Designed for reach and maneuverability - the 4-foot flexible shaft lets you consolidate deep pours and tight form sections without awkward repositioning, reducing operator fatigue during extended use
• Complete kit value - with the vibrator, 4.0Ah battery, and charger all included, there is no need to source components separately, making this an efficient choice for contractors equipping a crew or expanding a tool inventory

Specifications

• Model Number: DCE531M1
• Vibrator Diameter: 1-1/8"
• Vibrations per Minute: 14,000 VPM (under load)
• Flexible Shaft Length: 4 feet
• Battery Voltage: 20V Max
• Battery Capacity: 4.0Ah

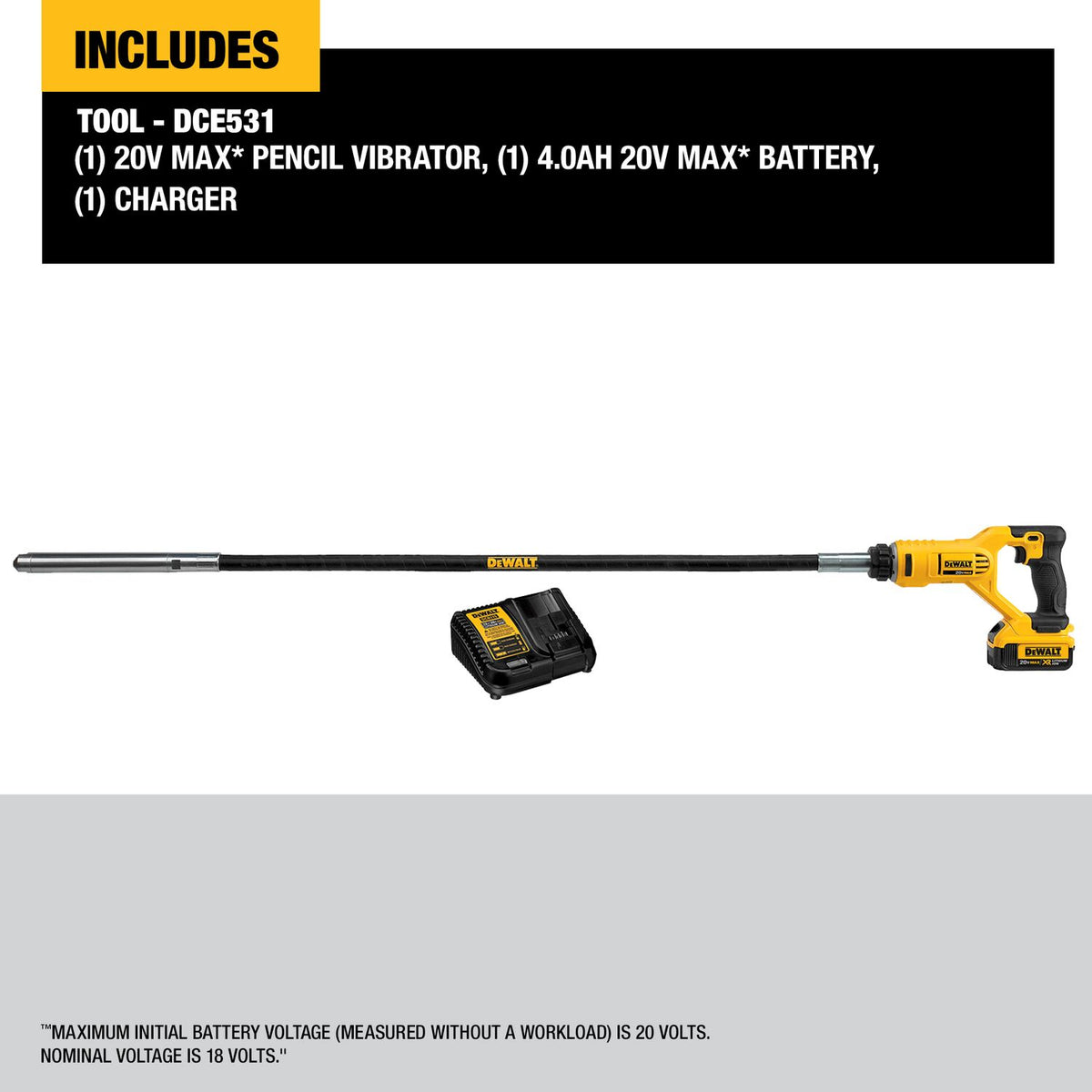

What's Included

• 1x DCE531 Pencil Vibrator
• 1x 20V Max 4.0Ah Battery
• 1x Charger

Frequently Asked Questions

What is the vibration output of the DCE531M1 and why does it matter for concrete consolidation?

The DCE531M1 operates at 14,000 VPM under load. This high vibration frequency is what drives entrapped air bubbles upward and out of fresh concrete, resulting in a denser, stronger finished pour. Maintaining that VPM rating under load - rather than just at no load - is important because it reflects real-world performance inside wet concrete.

How long is the flexible shaft, and what types of pours is it suited for?

The flexible shaft measures 4 feet in length. This extended reach makes the tool well suited for deeper form pours such as columns and walls, as well as situations where the vibrator head needs to be steered around rebar or other obstructions inside the form without moving the motor unit.

What size is the vibrator head, and does it fit standard concrete forms?

The vibrator head has a 1 1/8" diameter, which is a standard pencil vibrator size designed to fit within typical concrete form clearances and work effectively around reinforcement bars during consolidation.

What is included in the kit, and does it come ready to use?

Yes - the kit includes the DCE531 pencil vibrator, one 20V Max 4.0Ah battery, and a charger. Everything needed to begin vibrating concrete is included in the box, so no additional purchases are required to start working with the tool.
